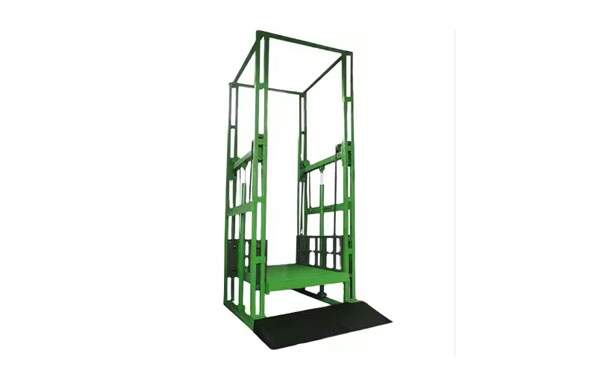

Vertical Lead Rail Lift Platform

Lifting Height : 3m-10m

Capacity : 2500kg-2500kg

Platform Size : 2.5m*5.0m-3.0m*6.0m

Floors : 1-3 floor lifting

Voltage : customized

Send Inquiry Now

Product Details

Vertical Lead Rail Lift Platform Without restriction of space, they are widely used in lifting operations over large areas, such narrow space as warehouses, factories, highways and stairwell place where we could not dig pits.

It can be designed according to your required lift height, load capacity and platform size. Also electromagnetic locks and interlocks are optional.You can choose guard,fence and shaft doors as your request.

No.	Structure	Material name	Material	Specification
1	Body materials	Lead rail	manganese steel	125*125H
2		Counter-tops truss	Q235C	12# channel steel
3		Up platform	Q345B	checkered plate 4mm
4		Cylinder arm	Q235	original tablet 9mm
5		connecting pin	heat treatment 45#	Round steel 60*48mm
6		Chain
7		Oil-lubricated bearings
8	Hydraulic system	Precision Hydraulic Cylinders
9		Sealing elements
10		High pressure piping
11		Supporting valve
12	Electric control	AC contractor
13		Limit switches
14		Micro Switch
15		Electric motor		3KW
16	Voltage	customized

Advantages

1. Low power consumption

2. Flexible configuration

3. Security

4. No machine room on the top

5. High-quality hydraulic cylinders and pumping stations

6. Low failure rate

7. Simple maintenance and long service life.
