Slab Scissor Lifts

Maximum Working Height : 6m-14m

Extension Deck : 0.9 m

Platform Width : 0.8 m-1.2m

Ground Clearence : 90 mm

Lift Capacity : 350 Kg

Send Inquiry Now

Product Details

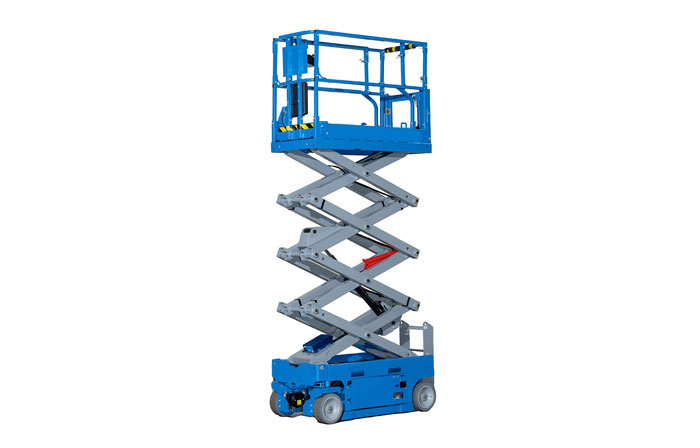

With the ability to drive at full height, this scissor lift can move you to a new location without having to lower the lift first. Maneuvering around tight spaces, like narrow aisles, makes this a perfect lift for working in warehouses. Capable indoors and outdoors, this versatile slab lift gives you the access needed when working at height.

Overview

The zero inside turn radius makes all areas accessible.

Reduced slippage with front-wheel drive.

Standard door passable thanks to compact dimensions.

Extend maximum platform workspace easily with an additional 3 feet.

Power up 25% grade slopes, like loading ramps, with an electric motor.

Parameter

Model No.	ADJX-608	ADJX-808	ADJX-810	ADJX-10101	ADJX-1212 1.9V	ADJX-1212	ADJX-1412
Maximum Working Height	6 m	8 m	8 m	10 m	12 m	12 m	14 m
Extension Deck	0.9 m	0.9 m	0.9 m	0.9 m	0.9 m	0.9 m	0.9 m
Platform Width	0.8 m	0.8 m	1.0 m	1.0 m	1.2 m	1.2 m	1.2 m
Vehicle Dimensions (LWH)	2.15 X 0.85 X 2.2	2.15 X 0.85 X 2.3	2.15 X 1.05 X 2.3	2.5 X 1.05 X 2.5	1.97 X 1.25 X 2.6	2.5 X 1.25 X 2.5	2.5 X 1.25 X 2.7
Ground Clearence	90 mm
Maximum Occupancy	2 People
Lift Capacity	350 Kg
Extension Deck	125 Kgs
Power Source	24V DC (Four 6V 225Ah Batteries)
Weight	1600 Kgs	1850 Kgs	2100 Kgs	2200 Kgs	2250 Kgs	2400 Kgs	2750 Kgs
