Fully Self-propelled Lifting Platform

Max. working height : 8-14m

Max Platform Height : 6-12m

Safe working load : 230kg

Extended platform safe working load : 100kg

Table extension length : 0.9m

Send Inquiry Now

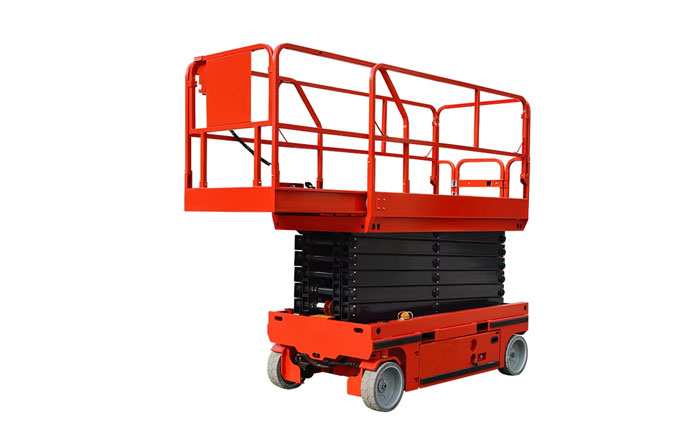

Fully Self-propelled Lifting Platform
Product Details

Fully Self-propelled Lifting Platform compact design can make the machine go through double standard door easily. Be equipped with non-marking tire and will not lead ground damage any more. This kind of scissor lift is high-quality and good helper of aerial work task.

Parameter

Model ADJX06A ADJX06 ADJX08A ADJX08 ADJX10 ADJX12
Max. working height 8.00m 8.00m 10.00m 10.00m 12.00m 14.00m
Max Platform Height 6.00m 6.00m 8.00m 8.00m 10.00m 12.00m
Safe working load 230kg 230kg 230kg 230kg 230kg 230kg
Extended platform safe working load 100kg 100kg 100kg 100kg 100kg 100kg
Working table size(L’w*h) 2.26×0.81×1.1m 2.26×1.13×1.1m 2.26×0.81×1.1m 2.26×1.13×1.1m 2.26×1.13×1.1m 2.26×1.13×1.1m
Overall shape size (L’w*h) 2.475×0.81×2.158m 2.475×1.15×2.158m 2.475×0.81×2.286m 2.475×1.15×2.286m 2.475×1.15×2.414m 2.475×1.15×2.542m
Overall folded shape size (L’w*h) 2.475×0.81×1.708m 2.475×1.15×1.708m 2.475×0.81×1.836m 2.475×1.15×1.836m 2.475×1.15×1.964m 2.475×1.15×2.094m
Table extension length 0.9m 0.9m 0.9m 0.9m 0.9m 0.9m
Ground clearance-center 0.1/0.02m 0.1/0.02m 0.1/0.02m 0.1/0.02m 0.1/0.02m 0.1/0.02m
Wheel base 1.89m 1.89m 1.89m 1.89m 1.89m 1.89m
Turning radius(inner/outter wheel) 0/2.1m 0/2.2m 0/2.1m 0/2.2m 0/2.2m 0/2.2m
Lifting/driving motor 24V/4.5kw 24V/4.5kw 24V/4.5kw 24V/4.5kw 24V/4.5kw 24V/4.5kw
Lifting speed 3-5m/min 3-5m/min 3-5m/min 3-5m/min 3-5m/min 3-5m/min
The machine’s driving speed (folded status) 3.5km/h 3.5km/h 3.5km/h 3.5km/h 3.5km/h 3.5km/h
The machine’s driving speed (lifting status) 0.8km/n 0.8km/h 0.8km/h 0.8km/h 0.8km/h 0.8km/h
Battery 4x6V/225ah 4x6V/225ah 4x6V/225ah 4x6V/225ah 4x6V/225ah 4x6V/245ah
Charger 24V/25A 24V/25A 24V/25A 24V/25A 24V/25A 24V/25A
Max Climbing Capacity 25% 25% 25% 25% 25% 25%
Max allowable working angle 1.5°/3 2°/3° 1.5°/3° 2°/3° 2°/3° 1.5°/3
Tyre Φ381x127mm Φ381x127mm Φ381x127mm Φ381x127mm Φ381x127mm Φ381x127mm
Weight 1685kg 1900kg 1845kg 2060kg 2300kg 2460kg
