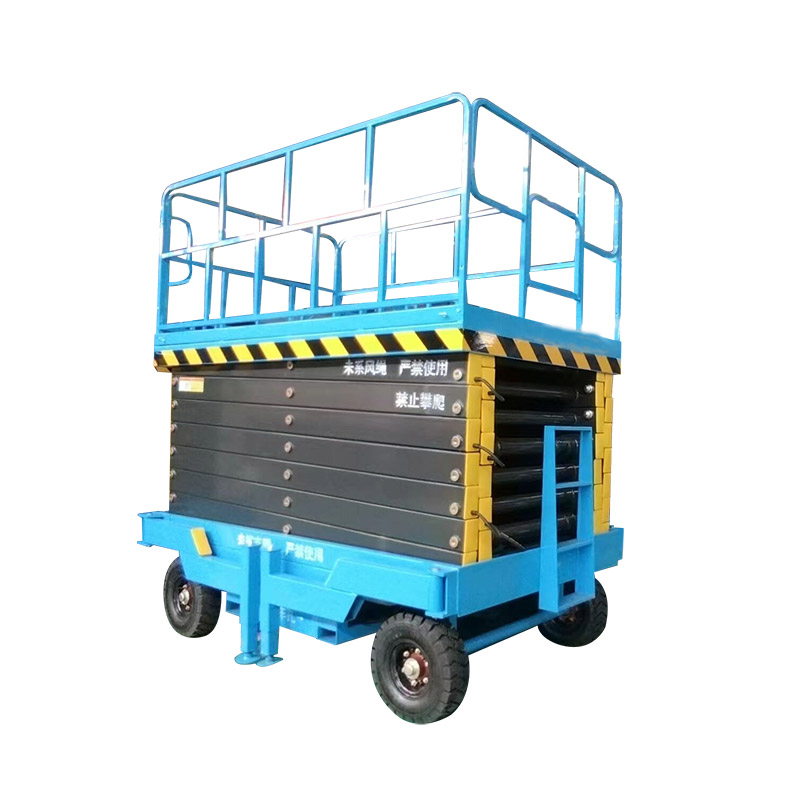

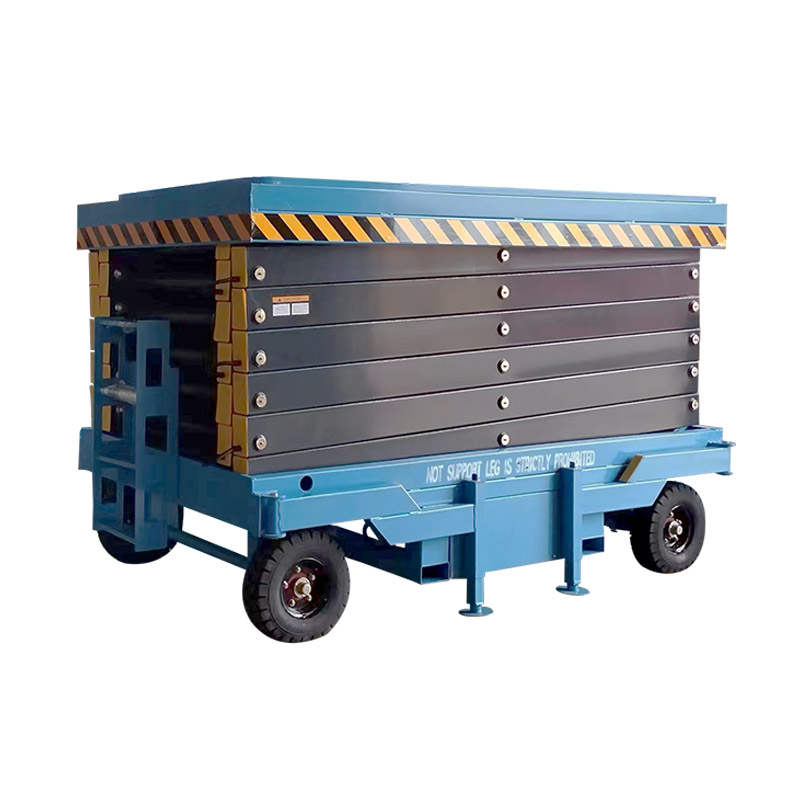

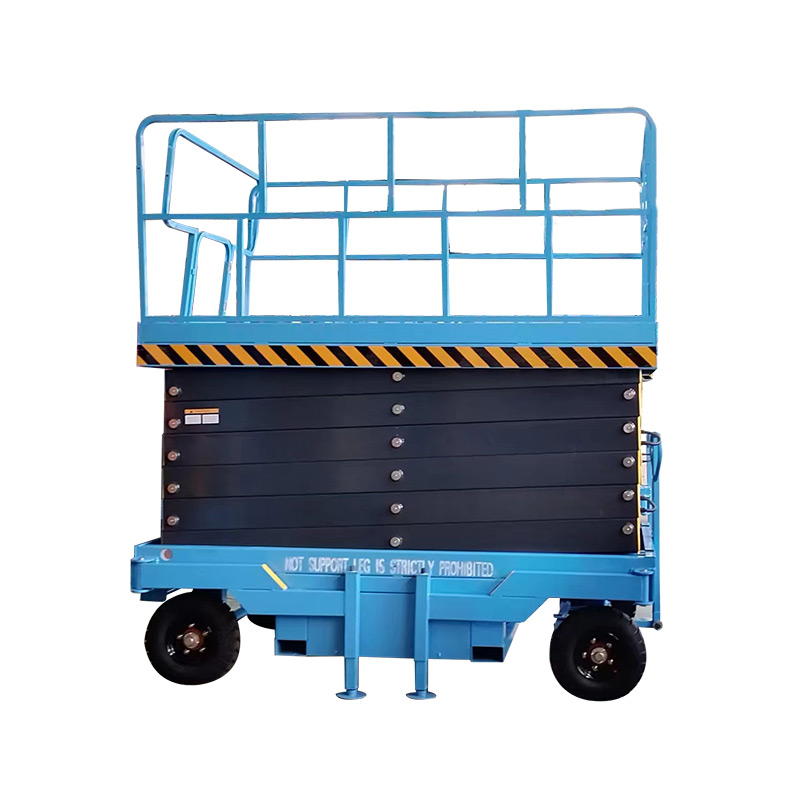

New Hydraulic Self Propelled Scissor Lift Platform

Load(kg) : Loading weight from 300kg to 500kg

Net elevation(m) : This series hydraulic lifting platform has lifting height range from 4m to 18m;

Design : Customized design

Standard : Meet EN1570 norm and ANSI/ASME safety standard;

Convenience : Removable lifting to facilitate handling and lift table installation

Send Inquiry Now

New Hydraulic Self Propelled Scissor Lift Platform

Product Details

Description

Hydraulic lifting platform is a kind of multi-functional lifting and unloading mechanical equipment. It adopts high-strength manganese steel structure, with wide work surface and high bearing capacity. It is suitable for multiple people to work at the same time. It is suitable for construction sites, workshops, stations, airports, lifting equipment maintenance, field power facilities maintenance, steel structure workshop maintenance, etc.

Classification parameters

Model	Platform (mm)	Net elevation (m)	Load (kg)	Self weight (kg)	Dimensions (mm)
ADYD/QXO.5-4	2010*930	4	500	850	201611001100
ADYD/QXO.5-6	2010*930	6	500	950	201611001295
ADYD/QXO.5-7	2010*930	6.8	500	950	201611001295
ADYD/QXO.5-8	2010*930	8	500	1070	201611001415
ADYD/QXO.5-9	2010*930	9	500	1170	201611001535
ADYD/QXO.5-10	2010*1130	10	500	1360	201612901540
ADYD/QXO.5-11	2010*1130	11	300	1480	201612901660
ADYD/QXO.5-12	2462*1210	12	500	1950	246513601780
ADYD/QXO.5-14	2845*1420	14	300	2580	284816201895
ADYD/QXO.5-16	2845*1420	16	300	2780	284516202055
ADYD/QXO.5-18	3700*1628	18	300	3900	370016281950

Standard Safety Features

（1）Upper platform lifted with aluminum safety bar preventing descent on contact with obstructions.

（2）Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.

（3）Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst.

（4）Safety clearance between scissors to prevent trapping during operation.
