Classification
The traction hydraulic lifting platform is divided into: two-wheel traction hydraulic lifting platform, trailer hydraulic lifting platform, crank arm hydraulic lifting platform.

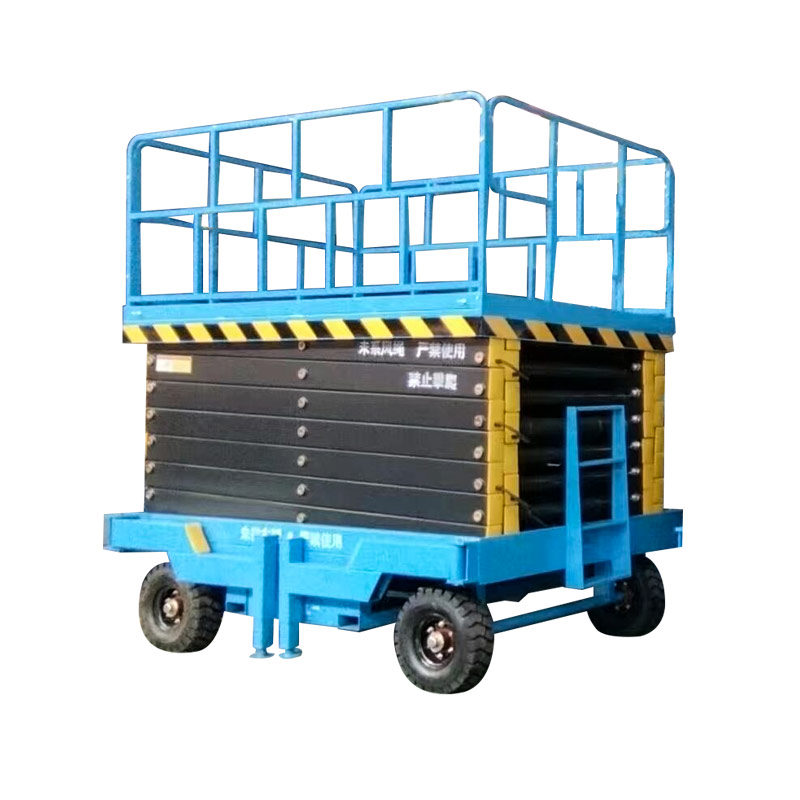

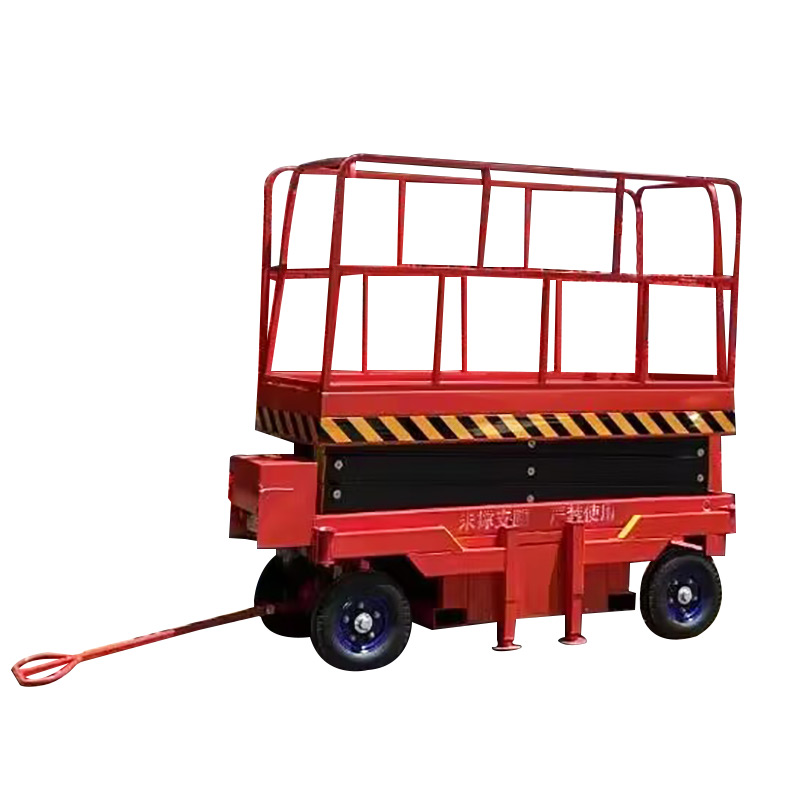

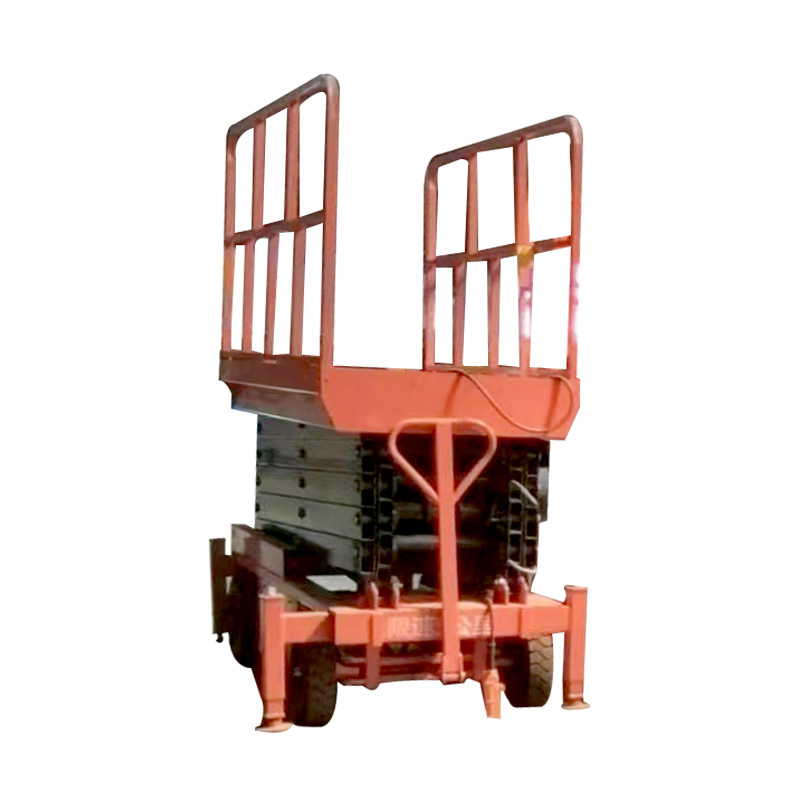

The two-wheel traction hydraulic lifting platform is a scissor structure. This kind of lifting platform has high stability, wide operating platform and high carrying capacity, so that the range of high-altitude operations is larger. It is suitable for multiple people to work at the same time. And it makes high-altitude operations more efficient and safer.
The trailer-type hydraulic lifting platform is suitable for hanging on the back of the car and being dragged by the car. It is easy to move and has a compact folding arm structure. It sets up fast. Its workbench can be raised, extended, and rotated, and it is easy to reach the working position across obstacles. Therefore, it is an ideal high-altitude operation equipment. The articulating arm type hydraulic lifting platform is a lifting equipment used for high-altitude operations. It can cross obstacles for high-altitude operations. When the platform is lifted to any position, it can work while walking. It has a compact structure and flexible steering.
Parameters
Model | Platform
(mm) | Net elevation
(m) | Load
(kg) | Self weight
(kg) | Dimensions
(mm) |
ADYD/QXO.5-4 | 2010*930 | 4 | 500 | 850 | 2016*1100*1100 |
ADYD/QXO.5-6 | 2010*930 | 6 | 500 | 950 | 2016*1100*1295 |
ADYD/QXO.5-7 | 2010*930 | 6.8 | 500 | 950 | 2016*1100*1295 |
ADYD/QXO.5-8 | 2010*930 | 8 | 500 | 1070 | 2016*1100*1415 |
ADYD/QXO.5-9 | 2010*930 | 9 | 500 | 1170 | 2016*1100*1535 |
ADYD/QXO.5-10 | 2010*1130 | 10 | 500 | 1360 | 2016*1290*1540 |
ADYD/QXO.5-11 | 2010*1130 | 11 | 300 | 1480 | 2016*1290*1660 |
ADYD/QXO.5-12 | 2462*1210 | 12 | 500 | 1950 | 2465*1360*1780 |
ADYD/QXO.5-14 | 2845*1420 | 14 | 300 | 2580 | 2848*1620*1895 |
ADYD/QXO.5-16 | 2845*1420 | 16 | 300 | 2780 | 2845*1620*2055 |
ADYD/QXO.5-18 | 3700*1628 | 18 | 300 | 3900 | 3700*1628*1950 |
Company Introduction
Xinxiang Aida Machinery Equipment Co. , Ltd. is headquartered in beautiful Xinxiang City, Henan Province. Our company has been focusing on the R &D and manufacturing of hydraulic lifting platform,and has maintained a good cooperative relation with domestic key universities and scientific research institutes established an open and efficient technical cooperation and technological innovation system, established a lifting platform R&D and design center,and participated in the R & D and manufacture of lifting platform of many national major projects. Now it has developed into a modern lifting machinery manufacturing enterprise integrating R&D, production and sales, In the same industry has a strong R&D production capacity and high level of enterprise management.
