PRODUCT LIST
Lift height (m) : 10-20
Overall width (mm) : 1700-1900
Height after contraction (mm) : 2100-2250
Carrier basket size(mm) : 900/700
Overall length (mm) : 6300-7600
Working radius (mm) : 5500-11000

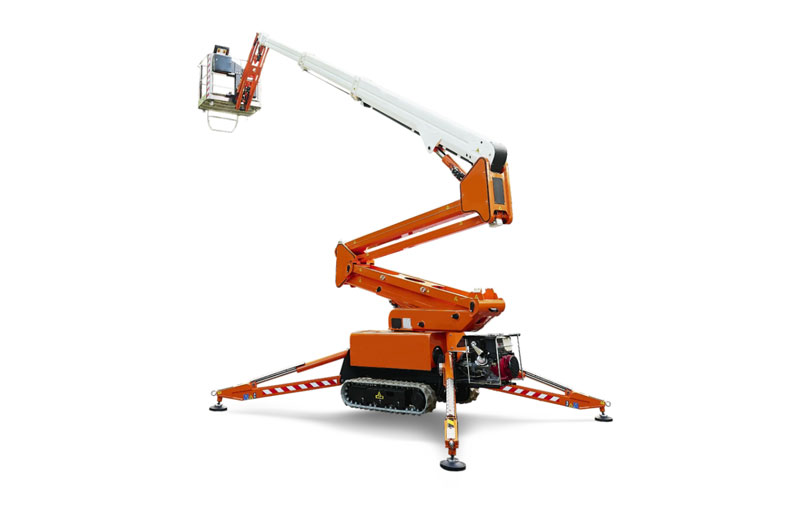

Telescopic Lift Folding Arm Platform Boom Lifts is suitable for various rugged terrains in the field, and has a wide range of space operations. It is mainly used for construction, bridge construction, shipbuilding, airports, mines, ports and docks, construction of communication and power facilities, and outdoor advertising.
Parameters
| Lift height (m) | Overall width (mm) | Height after contraction (mm) | Carrier basket size(mm) | Overall length (mm) | Length after traction folding | Working radius (mm) |
| 10 | 1700 | - | 900/700 | 6300 | 5200(20'GP） | 5500 |
| 12 | 1700 | 2100 | 900/700 | 7300 | 6200（Remove the manned basket,20'GP） | 6500 |
| 12 (Telescopic type) | 1700 | 2100 | 900/700 | 5800 | 4700（20'GP） | 7800 |
| 14 | 1700 | 2100 | 900/700 | 6650 | 5550（20'GP） | 8500 |
| 16 | 1700 | 2200 | 900/700 | 6800 | 5700（20'GP） | 10500 |
| 18 | 1800 | 2250 | 900/700 | 7600 | 6500（Remove the manned basket,20'GP） | 11000 |
| 20 | 1900 | 2250 | 900/700 | 6900 | 5800（20'GP） | 11000 |
· Professional manufacturer with many years' experience
· Good quality with competitive price
· Various payment items are acceptable
· Good service by experienced manager
