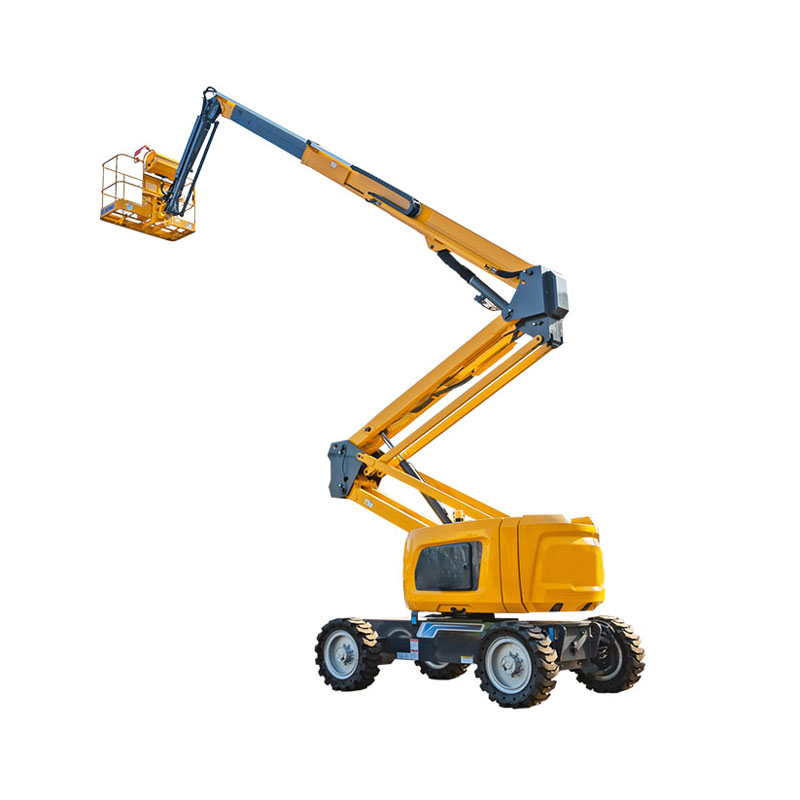

Articulating Boom Lifts

Articulating Boom Lifts is a crank arm mobile lifting work platform with compact layout, efficient obstacle crossing, accurate design, strong driving and easy operation. This model is easy to operate, safe, reliable, accurate and efficient, and can meet the needs of users in multiple industries such as building construction, steel structure, petrochemical, venues and leasing.

Performance
Drive Speed - Platform Lowered	3.7 mph / 5.95 km/h
Gradeability - 4WD	45 %
Platform Capacity	500 lb / 226.80 kg
Swing	355 Degrees
Swing Type	Non-Continuous
Turning Radius - Outside	13 ft / 3.96 m
Jib - Range of Articulation	139 Degrees

Dimensional Data
Ground Clearance	10 in. / 0.26 m
Machine Height	6 ft 7 in. / 2.01 m
Machine Length	18 ft 2 in. / 5.54 m
Machine Width	6 ft 4 in. / 1.93 m
Platform Dimension A	2 ft 6 in. / 0.76 m
Platform Dimension B	5 ft / 1.52 m
Tailswing	2 in. / 0.05 m
Tire Size	265/50 D20 Foam Filled
Wheelbase	6 ft 2 in. / 1.88 m

Reach Specifications
Horizontal Jib Rotation	0 Degrees
Horizontal Outreach	19 ft 11 in. / 6.07 m
Platform Height	33 ft 10 in. / 10.31 m
Up and Over Height	17 ft / 5.18 m
