Crossbar barrier free lifting platform according

Product Specifications :

Innovative, effective design for disabled access

Easy to integrate into both new and existing buildings

Both indoor and outdoor use

No structural alterations are necessary, just a level floor

Safe to use

Runs even during power failures

Optional Features : Attendant remote control, under hanger sensors, side of hanger sensors, automatic platform fold, fold-down seat and seatbelt, building fire alarm integration, side load for confined lower landings, wall-mount pedestrian audio-visual alert, pedestrian handrails integrated in to support rail system.

Send Inquiry Now

Crossbar barrier free lifting platform according

Product Details

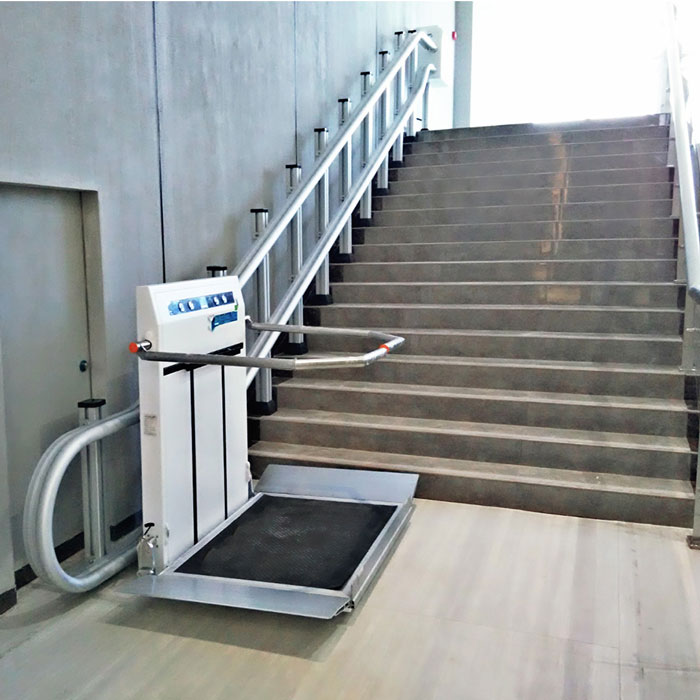

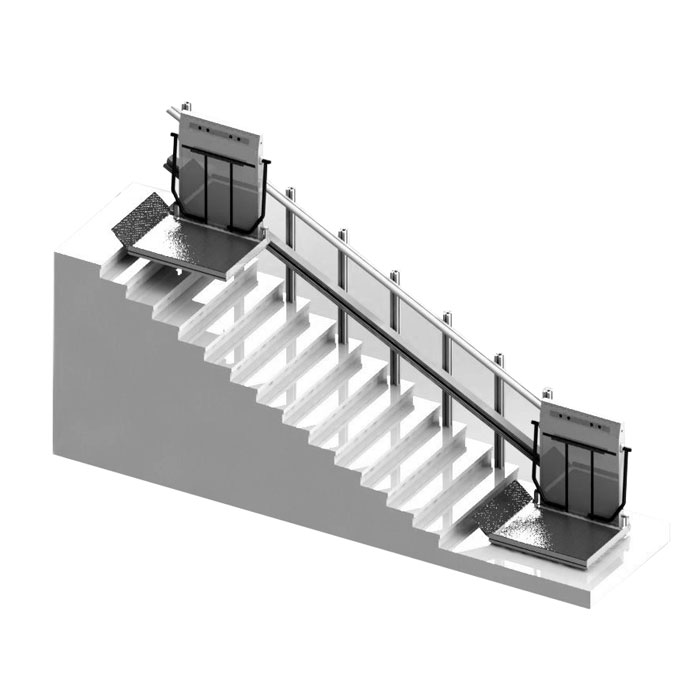

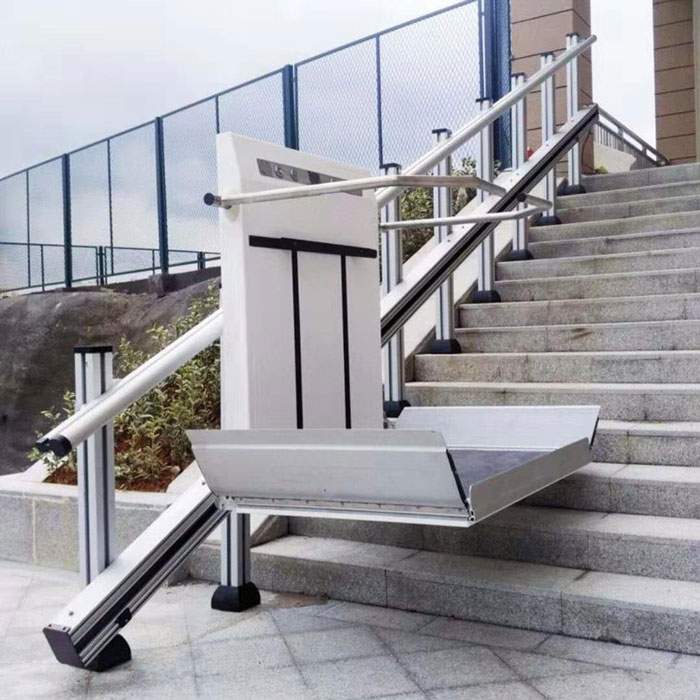

Crossbar barrier free lifting platform according to the running direction of curved and straight line type two.The gear rack type driving mechanism of linear type,along the staircase up and down,only linear operation cannotturn,inclination is generally not more than 35 degrees.for straight stairs to the lower floors,with no horizontalsection.The curve type Tetherball chain transmission.not only can be up and down,but also can make level,turningand spiral operation,wide application range.The device provides great convenience for wheelchair bound disabledpersons,and is now widely used in household and public places.

Features

Minimal construction required: Provides access without significant renovations.

Flexible for many types of installations: Custom built to your specifications to fit staircases with inside and outside curves, spiral stairs or multiple levels.

Space-saving design: Sleek design with a foldaway and optional out-of-the-way parking that harmonizes with any building design.

Machine roomless: Motor is unobtrusively installed at the top landing, with the controller located remotely keeping the visible components to a minimum.

Other standard features: Constant pressure buttons to move the lift up and down, pedestrian warning light and movement alarm, straight through platform, power folding platform, pendant control, fold-down seat with 330 lb (150 kg) capacity.

Standard finish options: Light gray.

Safety features: Sensor system on the platform, non-skid platform with side safety flaps, overspeed governor, manual lowering device, power folding safety arms, keyed access for call stations and emergency stop button.

Warranty: 36 months parts. Please see complete details here.
