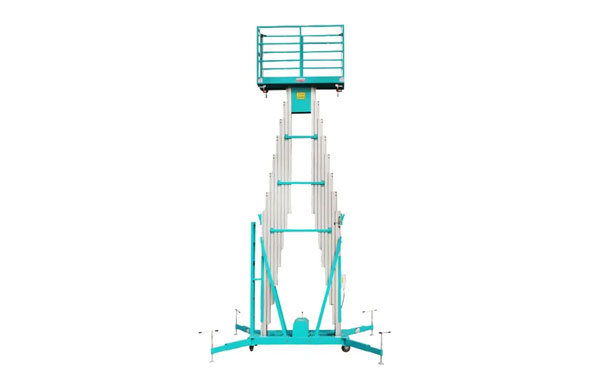

Electric Aluminum Mast Lift

Rated load capacity : 125-300kg

Max platform height : 4-12m

Power source : 220/380v (custom-made)

Net weight : 250-780kg

Structure form : single mast, double mast, three mast and four mast.

Send Inquiry Now

Product Details

Electric Aluminum Mast Lift Use high-strength and high-quality aluminum alloy material, the thickened chassis of Q235 steel plate, prevents bumps, and aluminum alloy aerial work platform can be used with forklifts, which is convenient for fast transportation. The equipment is equipped with standard down control and remote control methods to facilitate the operation of the equipment by high-altitude operators, saving time and efficiency.

Parameter

Model	ADJX4	ADJX6	ADJX8	ADJX10
Max lifting height	4m	6m	8m	10m
Working height	6m	8m	10m	12m
Load capacity	150kg	150kg	150kg	125kg
Platform size	0.64*0.58m
Voltage	220V 380V 110V (customized)
Overall size(mm)	1180x750x1650	1280x800x1650	1280x800x1980	1360x850x1980
Net weight	250kg	280kg	300kg	320kg

Model	ADJX06	ADJX08	ADJX10	ADJX12
Max lifting Height	6m	8m	10m	12m
Working height	8m	10m	12m	14m
Load capacity	300kg	300kg	250kg	200kg
Platform size(mm)	1500x600	1500x600	1620x600	1740x600
Voltage	We can design the voltage as per your request
Overall size(LxWxH)	1550x900x1970	1550x900x1970	1670x900x2070	1790x900x2070
Net weight	480kg	580kg	680kg	780kg
