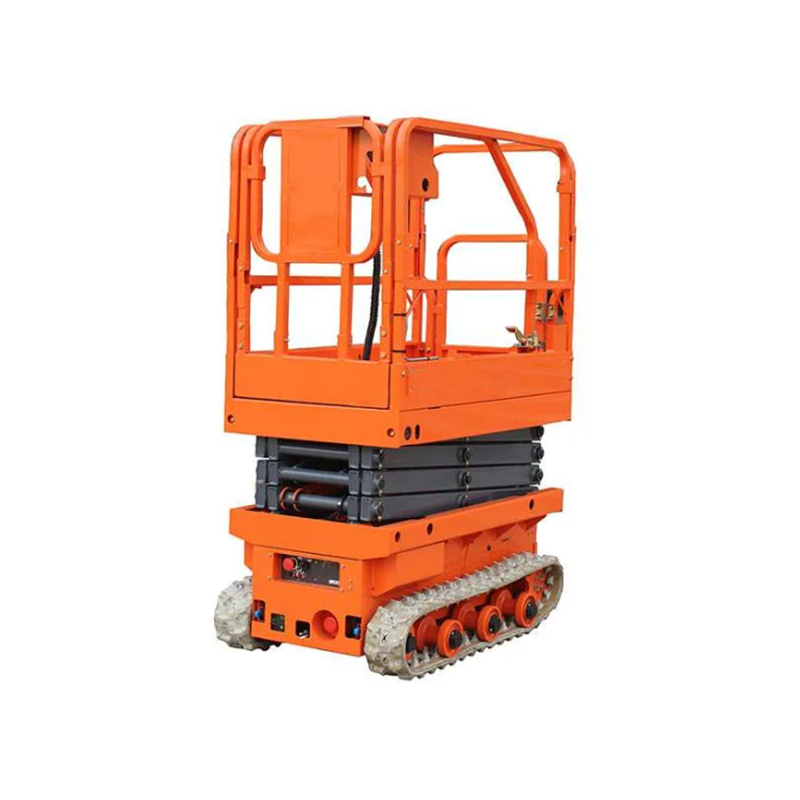

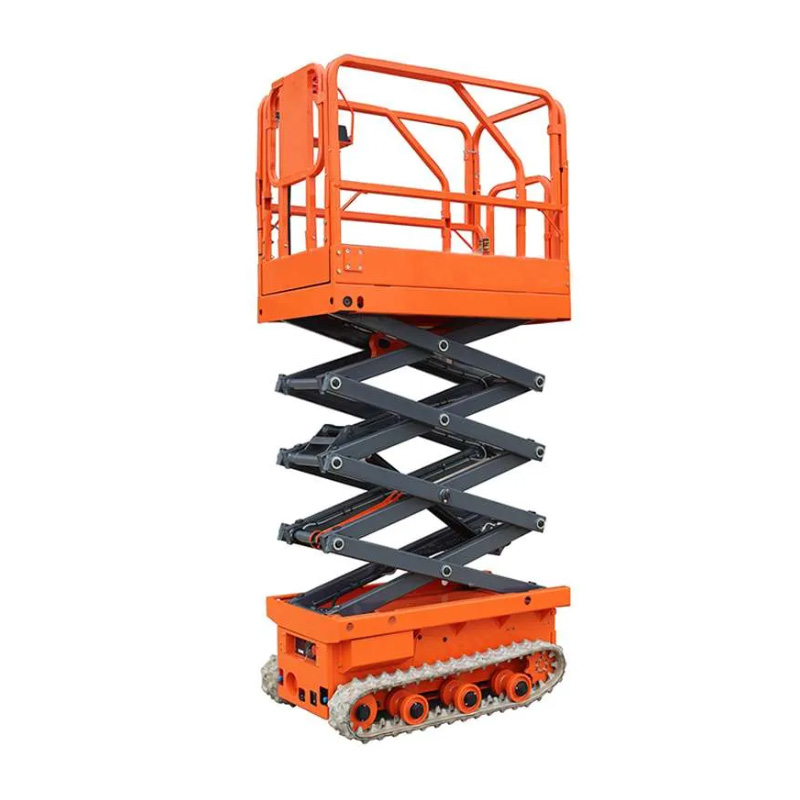

Type : mini crawler scissor lift aerial working platform
Model : ADYD/LD6-230SE
Max. Working height : 6m
Max. Platform Height : 4m
Safe working load capacity : 230kg
Extension platform working load capacity : 113kg
Overall Dimension : 1500mm*1097mm*2020mm
Technical Parameter:
| Type | mini crawler scissor lift aerial working platform |
| Model | ADYD/LD6-230SE |
| Max. Working height | 6m |
| Max. Platform height | 4m |
| Safe working load capacity | 230kg |
| Extension platform safe working lode capacity | 113kg |
| Working platform size | 1300mm*700mm*1100mm |
| Overall Dimension(guard plate unfolded) | 1500mm*1097mm*2020mm |
| Overall Dimension(guard plate folded) | 1500mm*1097mm*1700mm |
| platform extension size | 0.6m |
| Drive motor | 2*24V/1.5KW |
| Lifting speed | 3-5m/min |
| Machine driving speed (folded state) | 3.5km/h |
| Machine driving speed （lifting state 3m） | 0.8km/h |
| Battery | 6/100Ah*4pcs |
| Charger | 24V 15A |
| Maximum gradeability | 45% |
| Working maximum allowable angle | 1.5 degree/3 degree |
| Track | 1.22*0.15*0.27 |
| Whole machine weight | about 1050kg |
· Professional manufacturer with many years' experience
· Good quality with competitive price
· Various payment items are acceptable
· Good service by experienced manager
