PRODUCT LIST

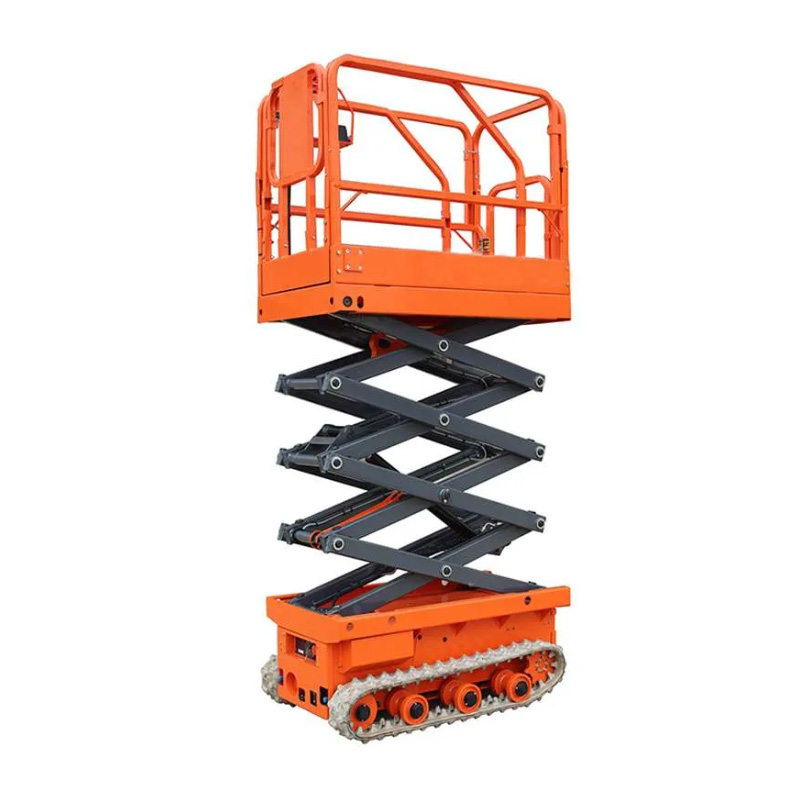

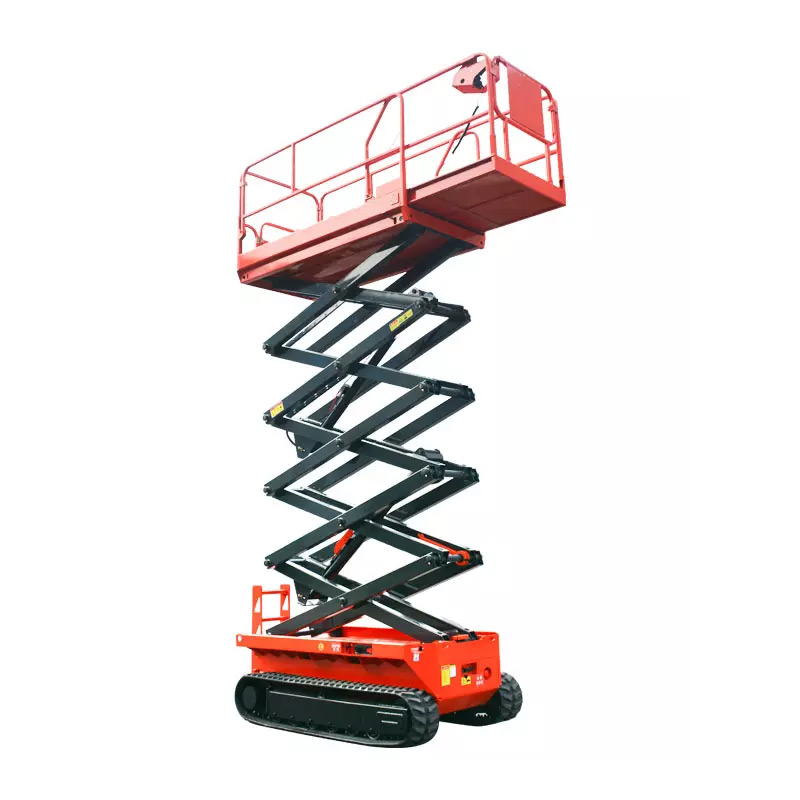

Product name : Crawler Lifting Platform
Model : ADYD/LD6-300
Table size : 1699mm*745mm
Platform height : 6m
Loading : 300kg
Self weight : 300kg

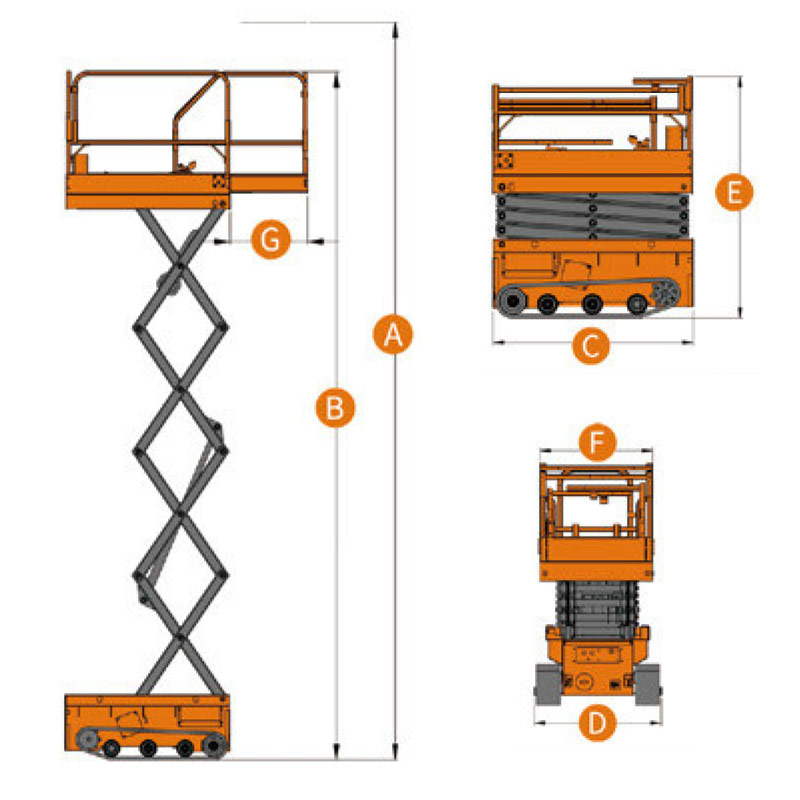

| Model | Dimension(mm) | Table size(mm) | Platform height(m) | Table extension(mm) | Loading(kg) | Self weight(kg) |
| ADYD/LD4-230 | 1500*1097*1700 | 1300*700 | 4 | 600 | 230 | 230 |
| ADYD/LD6-300 | 1975*1210*2070 | 1699*745 | 6 | 900 | 300 | 300 |
| ADYD/LD8-300 | 2518*1390*2420 | 2271*1110 | 8 | 900 | 300 | 300 |
| ADYD/LD10-300 | 2515*1390*2041 | 2271*1110 | 10 | 900 | 300 | 300 |
| ADYD/LD12-300 | 2855*1390*2172 | 2271*1110 | 12 | 900 | 300 | 300 |

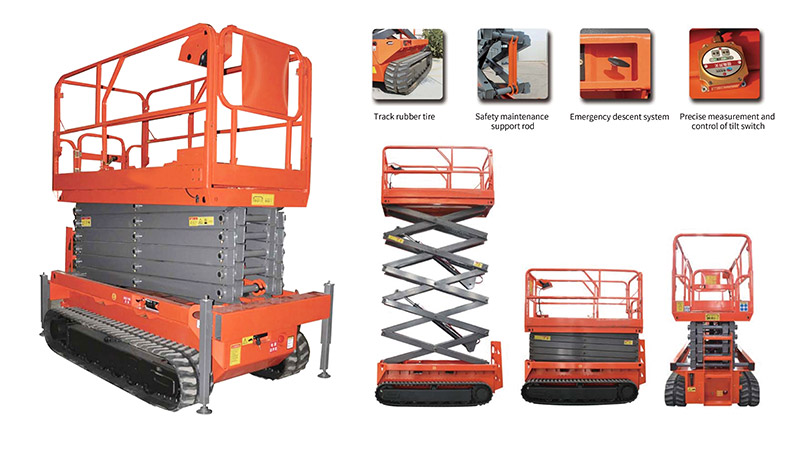

Product features
1. Light weight,small volume,it can be moved flexibly to the operation position
by single person;
2. The Minimum size of platform in the industry,1.15mX0.60m,so
it is fit for operating in narrow space;
3. Drawer type chassis is easy to
maintain;
4. Fault code display automatic,convenient to check and repair.
· Professional manufacturer with many years' experience
· Good quality with competitive price
· Various payment items are acceptable
· Good service by experienced manager
