PRODUCT LIST
Model : ADYD/LD12-300
Lift Mechanism : Scissor Lift Elevating Work Platform
Type : Crawler tracked Scissor Lift Elevating Work Platform
Table Extension : 900mm
Load : 300kg
Overall Dimension : 2515mm*1390mm*2041mm
Brand : AIDA

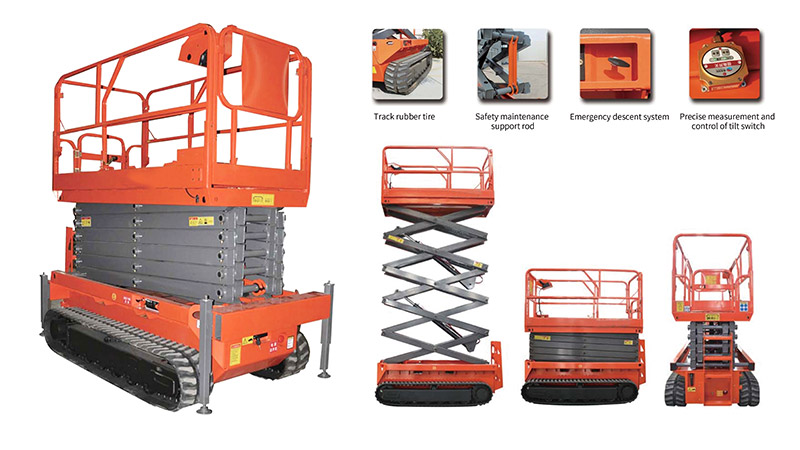

Features:
1.Light weight, small volume, can be moved flexibly to the operation position by one man
2.Mininum platform size 1.15m*0.6m, fits for operating in narrow space
3. drawer chassis, easy to maintain
4.Track rubber tire
5.Safety maintenance support rod
6.Emergency descent system
7.Tilt switch precise measurement and control
Technical parameter:
Model | Overall Dimension(mm) | Table length*Width(mm) | Platform height(m) | Table extension(mm) | Load(kg) | Self weight(kg) |
ADYD/LD4-230 | 1500*1097*1700 | 1300*700 | 4 | 600 | 230 | 230 |
ADYD/LD6-300 | 1975*1210*2070 | 1669*745 | 6 | 900 | 300 | 300 |
ADYD/LD8-300 | 2518*1390*2420 | 2271*1110 | 8 | 900 | 300 | 300 |
ADYD/LD10-300 | 2515*1390*2041 | 2271*1110 | 10 | 900 | 300 | 300 |
ADYD/LD12-300 | 2855*1390*2172 | 2271*1110 | 12 | 900 | 300 | 300 |
· Professional manufacturer with many years' experience
· Good quality with competitive price
· Various payment items are acceptable
· Good service by experienced manager
