Auxiliary walking hydraulic battery power aerial work loading heavily lift platform

Product specification : This series of products has lifting height ranging from 4m to 18m,and loading weight from 300kg to 50Okg. We can customize it for you based on your requirement.

Product advantages : It adopts high-strength manganese steel structure; the four wheels are easy to move; the working surface is large; the carrying capacity is high; multiple people can work at the same time, working at heights is safer and more efficient.

Applicable places : Installation, maintenance and cleaning of high-altitude equipment in construction sites, factories, warehouses, grain depots, stations, hotels, airports, docks, gas stations, stadiums, elevated pipelines, etc.; it can also be used for maintenance of lifting equipment, maintenance of field power facilities, and steel frame structures Plant maintenance, etc.

Send Inquiry Now

Auxiliary walking hydraulic battery power aerial work loading heavily lift platform
Auxiliary walking hydraulic battery power aerial work loading heavily lift platform
Auxiliary walking hydraulic battery power aerial work loading heavily lift platform
Product Details

 Model  Platform size(mm)  Net elevation(m)  Load(kg)  Self weight(kg)  Dimensions(mm)
  ADYD/FZO.5-4  2010*930  4  500  850  2016*1100*1100
  ADYD/FZO.5-6  2010*930  6  500  950  2016*1100*1295
  ADYD/FZO.5-7  2010*930  6.8  500  950  2016*1100*1295
  ADYD/FZO.5-8  2010*930  8  500  1070  2016*1100*1415
  ADYD/FZO.5-9  2010*930  9  500  1170  2016*1100*1535
  ADYD/FZO.5-10  2010*1130  10  500  1360  2016*1290*1540
  ADYD/FZO.5-11  2010*1130  11  300  1480  2016*1290*1660
  ADYD/FZO.5-12  2462*1210  12  500  1950  2465*1360*1780
  ADYD/FZO.5-14  2845*1420  14  500  2580  2845*1620*1895
  ADYD/FZO.3-16  2845*1420  16  300  2780  2845*1620*2055
  ADYD/FZO.3-18  3700*1628  18  300  3900  3700*1628*1950


Profile

Work platform lifts/scissor lift electric is mainly used to lift workers to high place for repairs, maintenance, cleaning or installation and so on. You can move it easily to the right working area. The Mobile Scissor Lift can be also equipped with battery. With the battery, you don't need to connect AC power, and you can let the mobile scissor lift at some work areas without power.   Also, this type of mobile scissor lift can be installed with the driven wheel to move it by hands without any hardness.

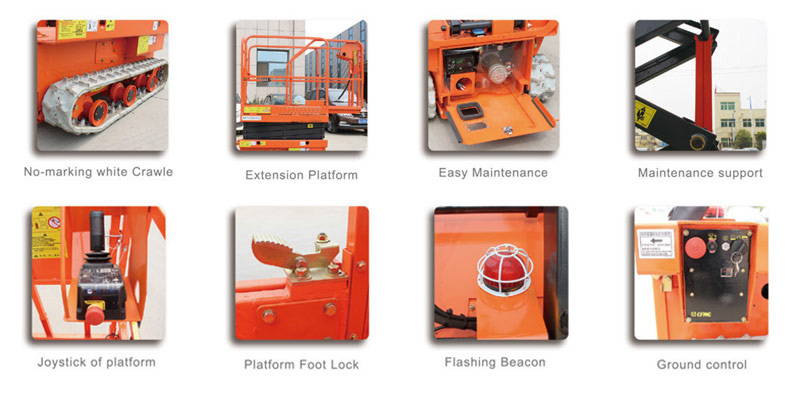

Scissor Aerial Work Platform Features
Lifting mechanism of high-strength
Manganese steel rectangular tube production.
With a safety device to prevent
Overloading of the lift.
Provided to prevent hydraulic line rupture safety
Protection valve.
Emergency lowering device in case of a power outage.


Why Choose Us

· Professional manufacturer with many years' experience

· Good quality with competitive price

· Various payment items are acceptable

· Good service by experienced manager
