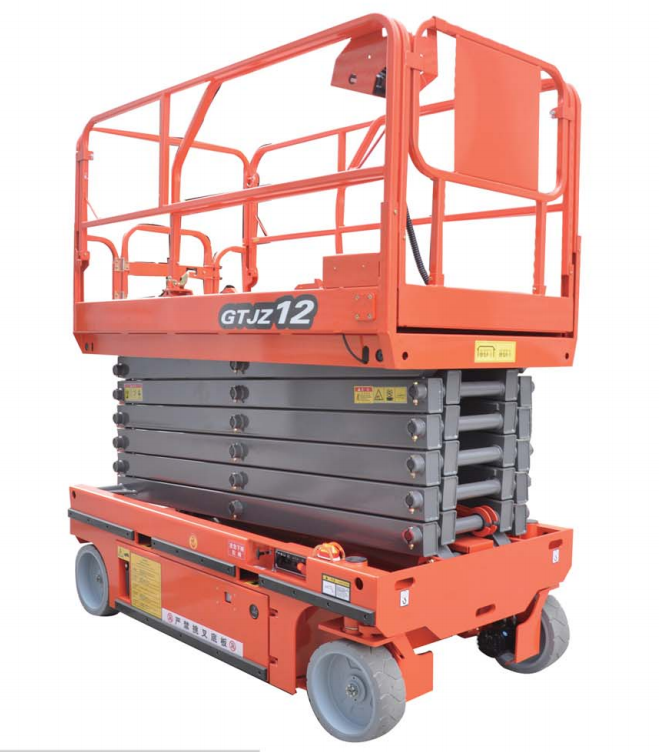

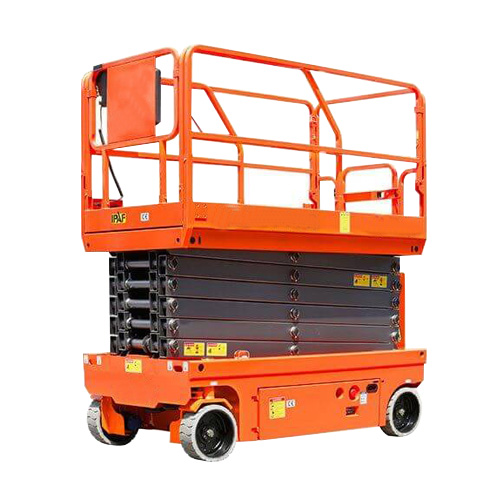

Wheel Type Working Platform 8m 10m 12m 14m Mobile Self-Propelled Scissor Lift Aerial Scissor Lift Platform with 230kg Loading

Product Description: : Mobile Self Propelled Scissor Lift moves and lifts all by battery power. Operator can control lifting, moving, turning and all movement on the platform through the control system.

Applicable Industries: : Hotels, Garment Shops, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Printing Shops, Food & Beverage Shops, Advertising Company and so on.

Product Features: : 1.It is powered by DC, can be controlled by manually. It can move automatically and the moving speed is adjustable. 2.It can be climbed a gradient very well. 3.The driving motor has the automatic braking function.

Send Inquiry Now

Wheel Type Working Platform 8m 10m 12m 14m Mobile Self-Propelled Scissor Lift Aerial Scissor Lift Platform with 230kg Loading

Product Details

Product Parameter-Hydraulic Drive:

Model	Table size ( M)	Load capacity	Platform height	Overall size (m)	Extension of platform	Overall weight(kg)
GTJZ-6A	2.26*0.81	380kg	6m	2.480.812.18	0.9m	1880
GTJZ-6A	2.26*1.13	550kg	6m	2.4751.152.158	0.9m	2060
GTJZ-8A	2.26*0.81	230kg	8m	2.480.851.85	0.9m	2030
GTJZ-8A	2.26*1.13	450kg	8m	2.481.191.82	0.9m	2190
GTJZ-10A	2.26*1.13	320kg	10m	2.4951.1871.92	0.9m	2500
GTJZ-12A	2.26*1.13	320kg	11.8m	2.4751.152.542	0.9m	2960
GTJZ-14A	2.64*1.13	227kg	13.8m	2.841.402.60	0.9m	3390

Product Parameter- Electric Drive:

Model	Table size(m)	Load capacity	Platform height	Overall size(m)	Extension of platform(m)	Overall weight(kg)
GTJZD-6	2.26*1.13	230kg	6m	2.4791.17*2.29	0.9	1900
GTJZD-8	2.26*1.13	230kg	8m	2.471.172.31	0.9	2060
GTJZD-10	2.26*1.13	230kg	10m	2.471.172.43	0.9	2300
GTJZD-10	2.26*1.13	320kg	10m	2.471.172.43	0.9	2730
GTJZD-12	2.26*1.13	230kg	12m	2.471.172.55	0.9	2460
GTJZD-12	2.26*1.13	320kg	12m	2.471.172.55	0.9	2860
