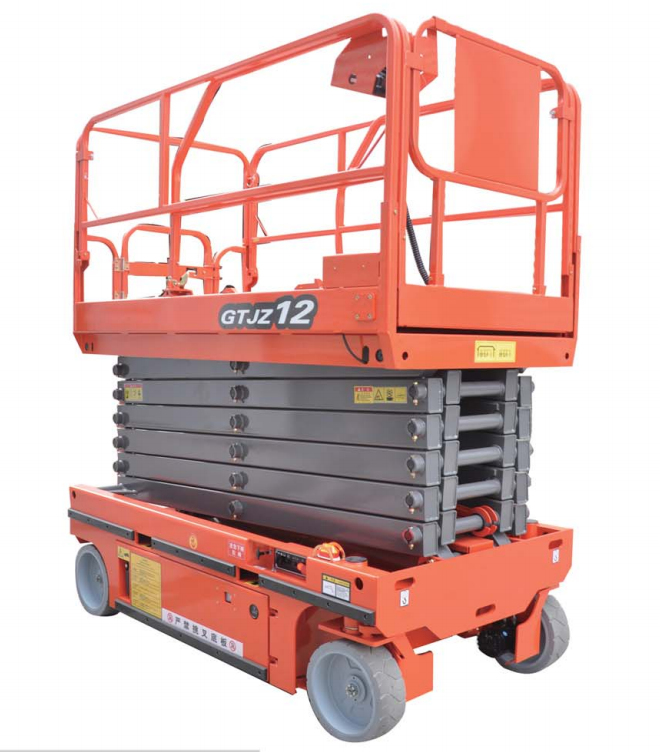

New Design Fully Automatic Mobile Lifting Platform Electric Lift Table 8m Scissor Lift Table

Product Features: : 1.It is powered by DC, can be controlled by manually. It can move automatically and the moving speed is adjustable. 2.It can be climbed a gradient very well. 3.The driving motor has the automatic braking function.

Product Description: : Mobile Lifting Platform moves and lifts all by battery power. Operator can control lifting, moving, turning and all movement on the platform through the control system.

Applicable Industries: : Hotels, Garment Shops, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Printing Shops, Food & Beverage Shops, Advertising Company and so on.

Send Inquiry Now

New Design Fully Automatic Mobile Lifting Platform Electric Lift Table 8m Scissor Lift Table
New Design Fully Automatic Mobile Lifting Platform Electric Lift Table 8m Scissor Lift Table
Product Details

Fully auto mobile lifting work platform is driven by electricity, very efficient and convenient. It is also the most popular selling machine in the market. We have rich experience in manufacturing portable lifting platform and offer customized design.

Fully automatic scissor lift could help increase working range and meet the special needs.

Product Parameter- Electric Drive:

 Model

 Table size(m)



Load
capacity

 Platform height

 Overall size(m)

Extension of platform(m)

 Overall weight(kg)

 GTJZD-6

 2.26*1.13

 230kg

 6m

 2.4791.17*2.29

 0.9

 1900

 GTJZD-8

 2.26*1.13

 230kg

 8m

 2.47*1.17*2.31

 0.9

 2060

 GTJZD-10

 2.26*1.13

 230kg

 10m

 2.47*1.17*2.43

 0.9

 2300

 GTJZD-10

 2.26*1.13

 320kg

 10m

 2.47*1.17*2.43

 0.9

 2730

 GTJZD-12

 2.26*1.13

 230kg

 12m

 2.47*1.17*2.55

 0.9

 2460

 GTJZD-12

 2.26*1.13

 320kg

 12m

 2.47*1.17*2.55

 0.9

 2860

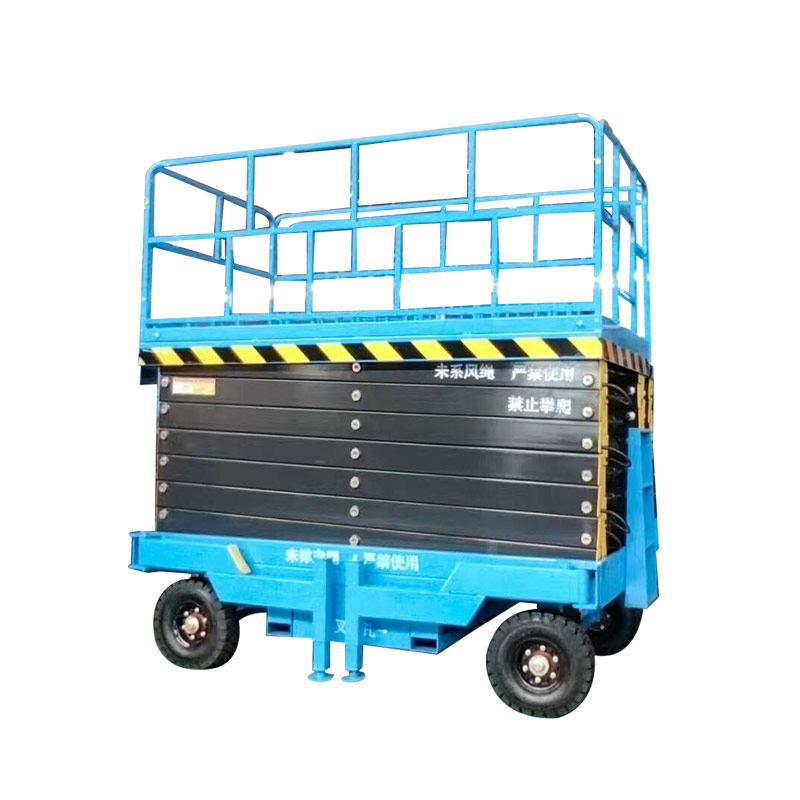

Product Parameter-Hydraulic Drive:

 Model



Table size
( M)



Load
capacity



Platform
height

 Overall size (m)

 Extension of platform

 Overall weight(kg)

 GTJZ-6A

 2.26*0.81

 380kg

 6m

 2.48*0.81*2.18

 0.9m

 1880

 GTJZ-6A

 2.26*1.13

 550kg

 6m

 2.475*1.15*2.158

 0.9m

 2060

  GTJZ-8A

 2.26*0.81

 230kg

 8m

 2.48*0.85*1.85

 0.9m

 2030

GTJZ-8A

 2.26*1.13

 450kg

 8m

 2.48*1.19*1.82

 0.9m

 2190

 GTJZ-10A

 2.26*1.13

 320kg

 10m

 2.495*1.187*1.92

 0.9m

 2500

 GTJZ-12A

 2.26*1.13

 320kg

 11.8m

 2.475*1.15*2.542

 0.9m

 2960

 GTJZ-14A

 2.64*1.13

 227kg

 13.8m

 2.84*1.40*2.60

 0.9m

 3390
