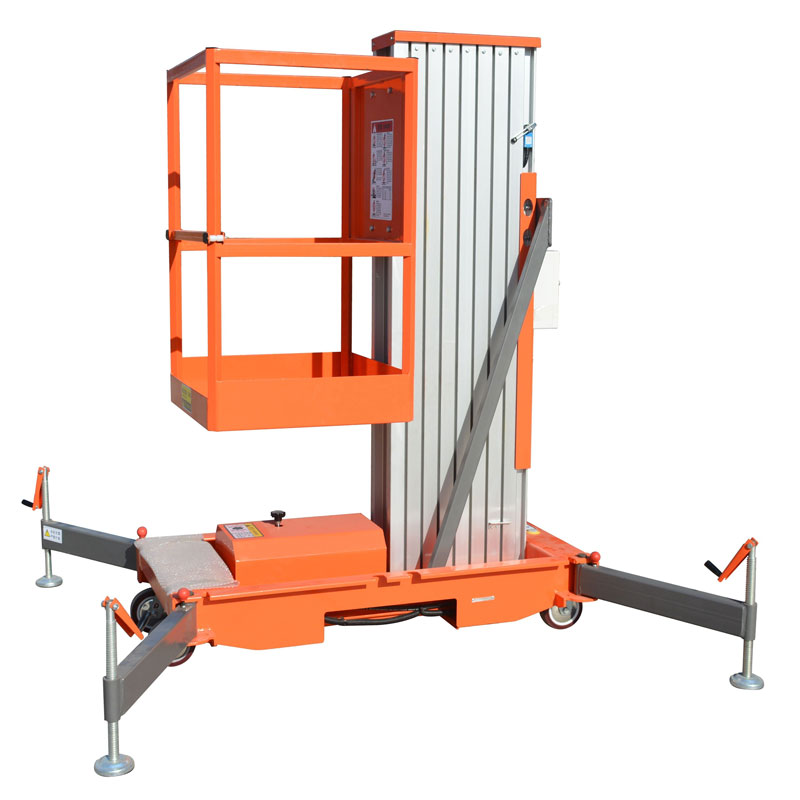

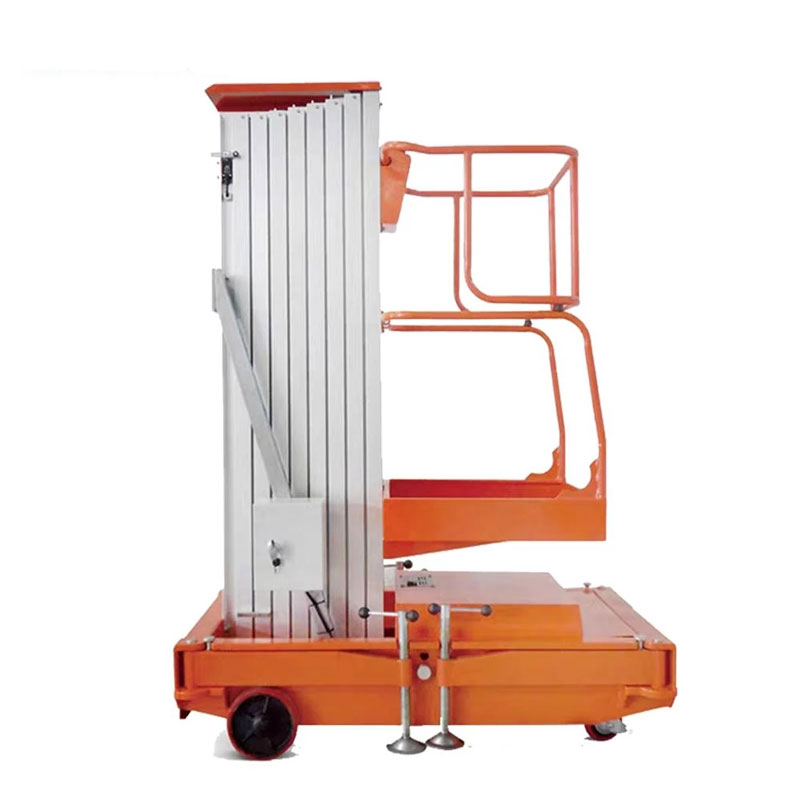

An Aluminum Alloy Aerial Work Lift Platform is an industrial equipment designed for both indoor and outdoor environments to provide workers with safe and efficient access to elevated work areas. These platforms are typically used in construction, maintenance, installation, and repair tasks where reaching high places is necessary.
Detailed characteristics
1. Emergency down function
Easy to operate, to prevent outages and accidents.
2. Foldable design
The tow-bar has a foldable design that is easy to operate and does not take up the space.
3. With spirit level
There is a level on the basis to ensure that the machine is in a horizontal position.
4. Sucker leveling legs
The suction cup adjusts the balance legs to provide the support for the platform.
5. Equipped facilities
The distribution box is rainproof and equipped with a key.
Parameters
Mast
| Model | Platform height(m) | Platform operation height(m) | Load capacity(kg) | Platform aize(m) | Supply voltage(v) | Power(kw) | Weight(kg) | Dimension(mm) |
| Single mast | ADGD/AL9-100M1 | 9 | 10.7 | 100 | 600*600 | AC220/50HZ | 1.1 | 320 | 1360*850*2000 |
| | ADGD/AL10-100M1 | 10 | 11.7 | 100 | 600*600 | AC220/50HZ | 1.1 | 340 | 1360*900*2100 |
| Double mast | ADGD/AL8-200M2 | 8 | 9.7 | 200 | 1150*600 | AC220/50HZ | 1.5 | 550 | 1360*900*2000 |
| | ADGD/AL12-200M2 | 12 | 13.7 | 200 | 1450*600 | AC220/50HZ | 1.5 | 700 | 1660*970*2000 |
| Three mast | ADGD/AL12-320M3 | 12 | 13.7 | 200 | 1570*900 | AC220/50HZ | 2.2 | 900 | 2100*1250*2000 |
| | ADGD/AL16-320M3 | 16 | 17.7 | 200 | 1570*900 | AC220/50HZ | 2.2 | 1000 | 2100*1250*2600 |
