Lift Mechanism : Scissor Lift
Lift Drive / Actuation : Hydraulic
Power : 1.5Kw or 2.2Kw or 3.0Kw, AC or DC power
Lifting height : 10m
Load capacity : 500kg
Platform size : 2.01m*1.13 m
Overall Dimension : 2.016*1.29*1.54 m

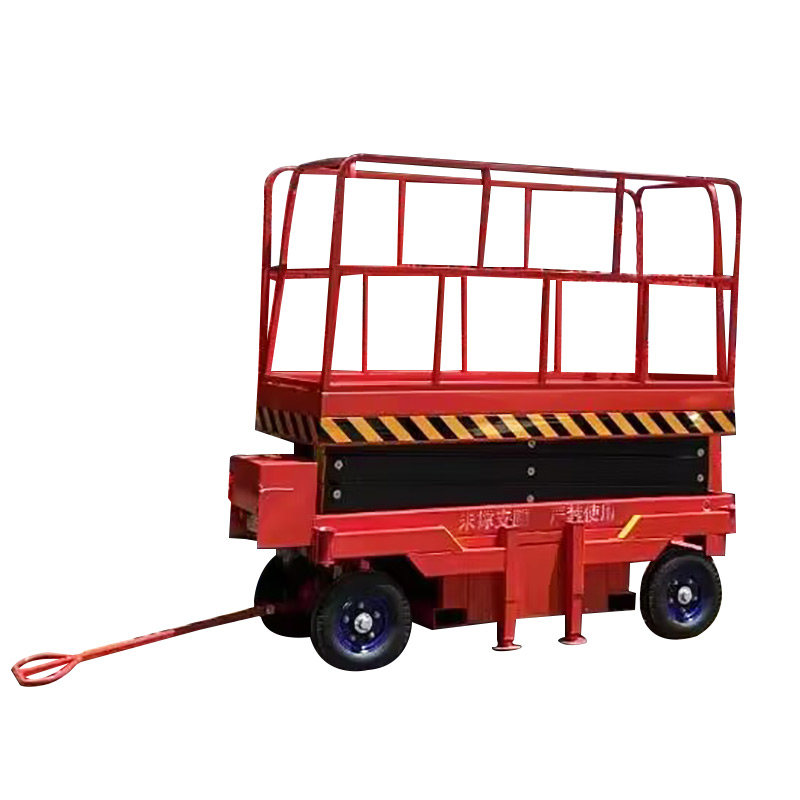

10m 500kg mobile scissor lift electric Hydraulic lifter platform
Hydraulic lifting platform is widely used in various industrial fields and production lines such as automobiles, containers, mold manufacturing, wood processing, and chemical filling, tilting, telescopic), with various control methods (separate action, linkage, explosion-proof), with the characteristics of stable and accurate lifting, frequent starting, large load capacity, etc., effectively solves the difficulties of various lifting operations in industrial enterprises, and makes production operations easy freely. The scissor-type lifting platform structure makes the lifting of the platform more stable, and the wide working platform and large carrying capacity make the range of high-altitude work larger and suitable for multiple people to work at the same time. It makes aerial work more efficient and safer!
Parameters
| Model | Platform size | Load capacity | Lifting Height | Overall Dimension | Self-weight |
| ADY0.5-4AC | 2.01*0.93 m | 500 KG | 4 M | 2.016*1.1*1.1 m | 880 KG |
| ADY0.5-6AC | 2.01*0.93 m | 500 KG | 6 M | 2.016*1.1*1.295 m | 980 KG |
| ADY0.5-8AC | 2.01*0.93 m | 500 KG | 8 M | 2.016*1.1*1.415 m | 1100 KG |
| ADY0.5-9AC | 2.01*0.93 m | 500 KG | 9 M | 2.016*1.1*1.535 m | 1150 KG |
| ADY0.5-10AC | 2.01*1.13 m | 500 KG | 10 M | 2.016*1.29*1.54 m | 1650 KG |
| ADY0.3-11AC | 2.01*1.13 m | 300 KG | 11 M | 2.016*1.29*1.66 m | 1460 KG |
| ADY0.5-12AC | 2.462*1.21 m | 500 KG | 12 M | 2.465*1.36*1.78 m | 2000 KG |
| ADY0.5-14AC | 2.845*1.42 m | 500 KG | 14 M | 2.845*1.62*1.895 m | 2580 KG |
| ADY0.3-16AC | 2.845*1.42 m | 300 KG | 16 M | 2.845*1.62*2.055 m | 2780 KG |
| ADY0.3-18AC | 3.06*1.62 m | 300 KG | 18 M | 3.060*1.8*2.12 m | 3900 KG |
| ADY1.0-4AC | 2.01*1.13m | 1000KG | 4M | 2.016*1.29*1.31m | 1150KG |
| ADY1.0-6AC | 2.01*1.13m | 1000KG | 6M | 2.016*1.29*1.31m | 1200KG |
| ADY1.0-8AC | 2.01*1.13m | 1000KG | 8M | 2.016*1.29*1.42m | 1450KG |
| ADY1.0-10AC | 2.01*1.13m | 1000KG | 10M | 2.016*1.29*1.55m | 1650KG |
| ADY1.0-12AC | 2.462*1.21m | 1000KG | 12M | 2.465*1.36*1.78m | 2400KG |
| ADY1.0-14AC | 2.845*1.42m | 1000KG | 14M | 2.845*1.62*1.895m | 2800KG |
| ADY1.5-6AC | 2.1*1.53m | 1500KG | 6M | 2.25*1.75*1.53m | 1780KG |
| ADY1.5-8AC | 2.1*1.53m | 1500KG | 8M | 2.25*1.75*1.69m | 2070KG |
| ADY1.5-10AC | 2.1*1.5m | 1500KG | 10M | 2.25*1.75*1.85m | 2250KG |
| ADY1.5-12AC | 2.6*1.5m | 1500KG | 12M | 3.0*1.9*2.3m | 3500KG |
· Professional manufacturer with many years' experience
· Good quality with competitive price
· Various payment items are acceptable
· Good service by experienced manager
