PRODUCT LIST

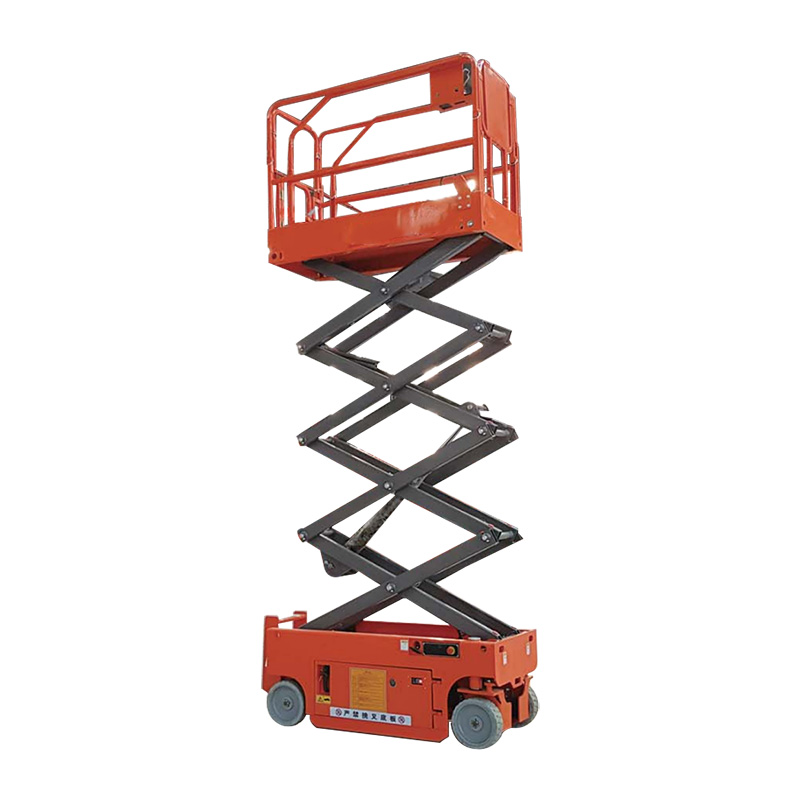

Type : self driven hydraulic mobile aerial scissor lift platform
Platform Size : 2.27m*0.18m
Platform H : 8m
Working H. : 10m
Overall Dimension : 2.48m*0.83m*1.99m
Power : 3.3kw
Brand : AIDA
230kg load one man lift vertical self driven hydraulic mobile aerial scissor lift platform
Self propelled Scissor Lifts only one man can operate on the working platform, does not need any support legs, with features of easily operate of moving
forward,turning around and lifting up.
Model | Working H.(m) | Platform H.(m) | Platform Size(m) | Load (kg) | Overall Dimension (L*W*H) | Power (KW) | Weight (kg) |
CFPT0608 | 8m | 6m | 2.27*1.12 | 450 | 2.48*1.19*1.66 | 3.3 | 2170 |
CFPT0810 | 10m | 8m | 2.27*1.12 | 450 | 2.48*1.19*1.84 | 3.3 | 2480 |
CFPT1012 | 12m | 10m | 2.27*1.12 | 320 | 2.48*1.19*1.91 | 3.3 | 2640 |
CFPT1214 | 13.8m | 11.8m | 2.27*1.12 | 320 | 2.48*1.19*2.03 | 4.5 | 2980 |
CFPT1416 | 15.7m | 13.7m | 2.64*1.12 | 230 | 2.85*1.25*2.1 | 4.5 | 3600 |
CFPT0608SP | 7.75m | 5.75m | 1.67*0.74 | 230 | 1.86*0.76*1.84 | 3.3 | 1460 |
CFPT0608NP | 8m | 6m | 2.27*0.18 | 320 | 2.48*0.83*1.87 | 3.3 | 2090 |
CFPT0810NP | 10m | 8m | 2.27*0.18 | 230 | 2.48*0.83*1.99 | 3.3 | 2260 |
features:
1. Self propelled Scissor Lifts only one man can operate on the working platform, no need any support legs
2. Moving forward,turning around and lifting up are easily operated
3. Short chargeable time and long dural time of the battery
4. Easily moved, spacious working platforms, smooth working condition and high working efficiency
Moving method: The chargeable battery provides the power to move and steer around.
Lifting Power:The chargeable battery provides the power to raise up the lift platforms.
Working heights ranges from 4m,6m,8m,9m,10m,12m,14m.
