PRODUCT LIST
Lift Mechanism : Scissor Lift
Lift Drive / Actuation : Electric Motor
Table Size : 2.27*1.12m
Overall Dimensions : 2.48*1.19*1.84m
Power : 3.3kw

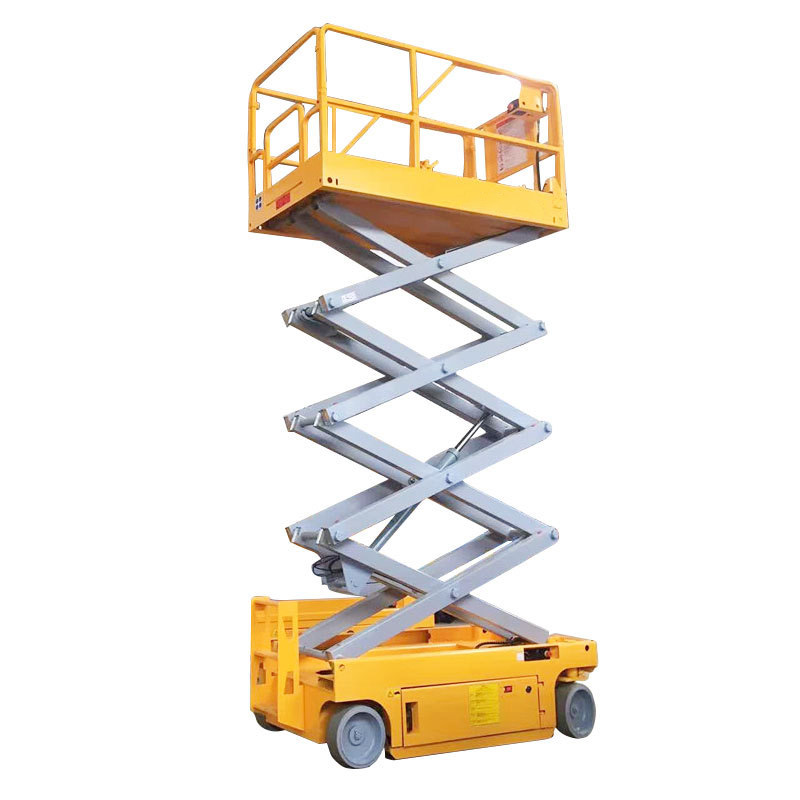

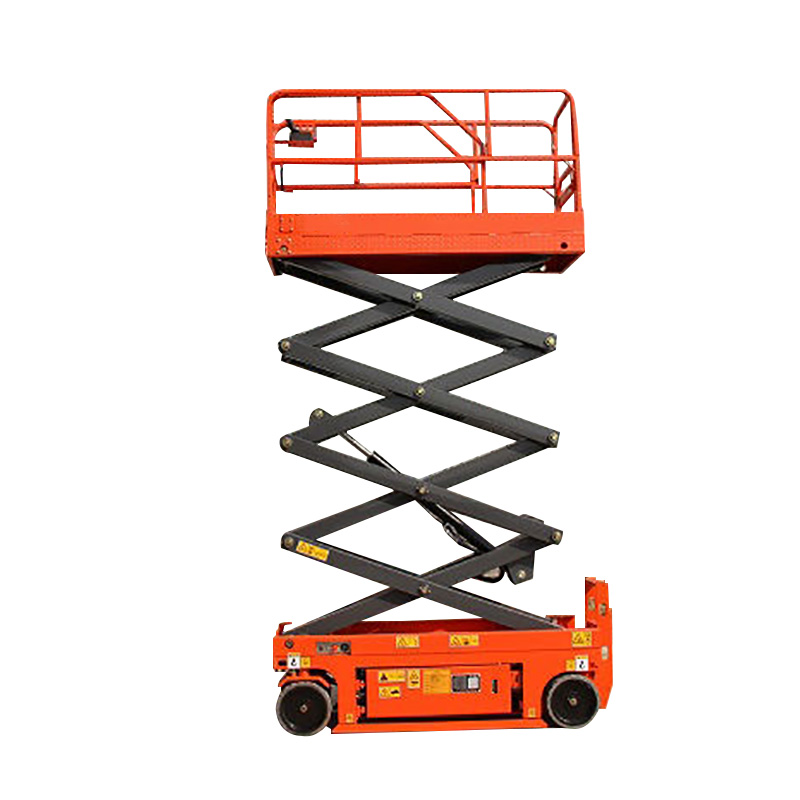

Feature : self-propelled scissor lift
A mobile scissor lift is a versatile and reliable access solution widely used in many fields for lifting personnel or materials to different heights. It is designed with a scissor-like mechanism that provides a smooth and stable platform for safe work operation.
The mobile scissor lift is a valuable tool for enhancing accessibility and safety in various industries. Its innovative design and versatile features make it an efficient access solution for a wide range of tasks, including maintenance, construction, and installation work.
Specifications:
Model | Working H.(m) | Platform H.(m) | Platform Size(m) | Load (kg) | Overall Dimension (L*W*H) | Power (KW) | Weight (kg) |
CFPT0608 | 8m | 6m | 2.27*1.12 | 450 | 2.48*1.19*1.66 | 3.3 | 2170 |
CFPT0810 | 10m | 8m | 2.27*1.12 | 450 | 2.48*1.19*1.84 | 3.3 | 2480 |
CFPT1012 | 12m | 10m | 2.27*1.12 | 320 | 2.48*1.19*1.91 | 3.3 | 2640 |
CFPT1214 | 13.8m | 11.8m | 2.27*1.12 | 320 | 2.48*1.19*2.03 | 4.5 | 2980 |
CFPT1416 | 15.7m | 13.7m | 2.64*1.12 | 230 | 2.85*1.25*2.1 | 4.5 | 3600 |
CFPT0608SP | 7.75m | 5.75m | 1.67*0.74 | 230 | 1.86*0.76*1.84 | 3.3 | 1460 |
CFPT0608NP | 8m | 6m | 2.27*0.18 | 320 | 2.48*0.83*1.87 | 3.3 | 2090 |
CFPT0810NP | 10m | 8m | 2.27*0.18 | 230 | 2.48*0.83*1.99 | 3.3 | 2260 |
Features:
1.
Self propelled Scissor Lifts only
one man can operate on the working platform, no need any support
legs
2.
Moving forward,turning around and lifting up are easily operated
3.
Short chargeable time and long service life of the battery
4.
Easily moved, spacious working platforms, smooth working condition and high
working efficiency
Moving
method: The chargeable battery provides the power to move and steer
around.
Lifting
Power:The chargeable battery provides the power to raise up the lift
platforms.
Working
heights rangs from 4m,6m,8m,9m,10m,12m,14m.
· Professional manufacturer with many years' experience
· Good quality with competitive price
· Various payment items are acceptable
· Good service by experienced manager
