PRODUCT LIST
Type : Self propelled Scissor Lifts
Lift Drive / Actuation : Electric Motor
Power : 3.3kw
Power supply : battery
Material : High Strength Steel
Load : 450kg

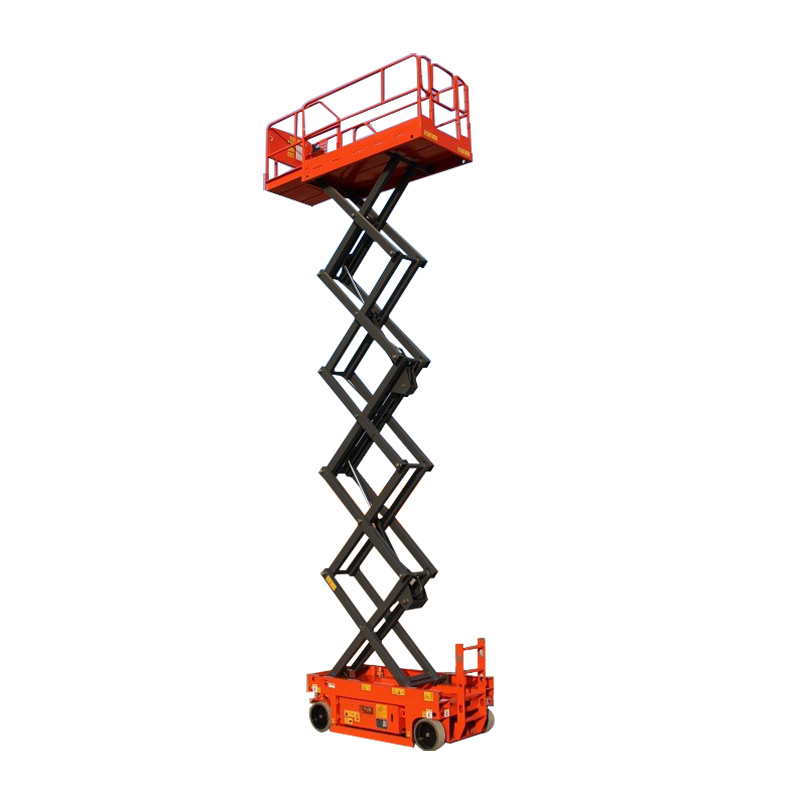

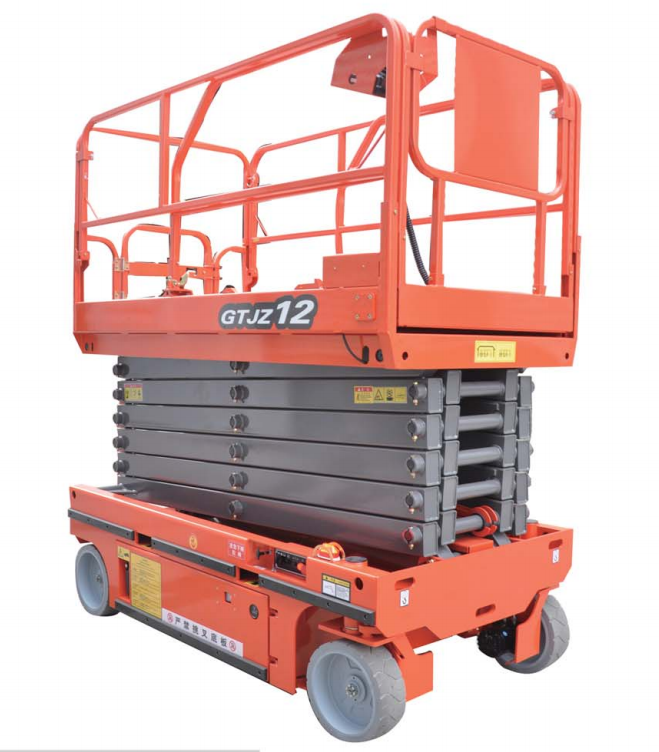

450kg load electric power self propelled lifts aerial working platform
Self-propelled scissor lifter features:
1. Self propelled Scissor Lifts only one man can operate on the working platform, no need any support legs
2. Moving forward,turning around and lifting up are easily operated
3. Short chargeable time and long dural time of the battery
4. Easily moved, spacious working platforms, smooth working condition and high working efficiency
Moving method: The chargeable battery provides the power to move and steer around.
Lifting Power:The chargeable battery provides the power to raise up the lift platforms.
Working heights rangs from 4m,6m,8m,9m,10m,12m,14m.
Specifications:
Model | Working H.(m) | Platform H.(m) | Platform Size(m) | Load (kg) | Overall Dimension (L*W*H) | Power (KW) | Weight (kg) |
CFPT0608 | 8m | 6m | 2.27*1.12 | 450 | 2.48*1.19*1.66 | 3.3 | 2170 |
CFPT0810 | 10m | 8m | 2.27*1.12 | 450 | 2.48*1.19*1.84 | 3.3 | 2480 |
CFPT1012 | 12m | 10m | 2.27*1.12 | 320 | 2.48*1.19*1.91 | 3.3 | 2640 |
CFPT1214 | 13.8m | 11.8m | 2.27*1.12 | 320 | 2.48*1.19*2.03 | 4.5 | 2980 |
CFPT1416 | 15.7m | 13.7m | 2.64*1.12 | 230 | 2.85*1.25*2.1 | 4.5 | 3600 |
CFPT0608SP | 7.75m | 5.75m | 1.67*0.74 | 230 | 1.86*0.76*1.84 | 3.3 | 1460 |
CFPT0608NP | 8m | 6m | 2.27*0.18 | 320 | 2.48*0.83*1.87 | 3.3 | 2090 |
CFPT0810NP | 10m | 8m | 2.27*0.18 | 230 | 2.48*0.83*1.99 | 3.3 | 2260 |
