Discount Price 8m Scissor Lift Table 10m Scissor Lift Aerial Working Platform

Driven parts of scissor lift table : 1. 4 wheel 2. 4 outrigger one push handle

Scissor lift table lifting motor : AC power , 110V 220V 380V 415 V or according to client's requrest

Applicable Industries : Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Home Use, Retail, Construction works , Energy & Mining, Advertising Company etc

Send Inquiry Now

Discount Price 8m Scissor Lift Table 10m Scissor Lift Aerial Working Platform

Product Details

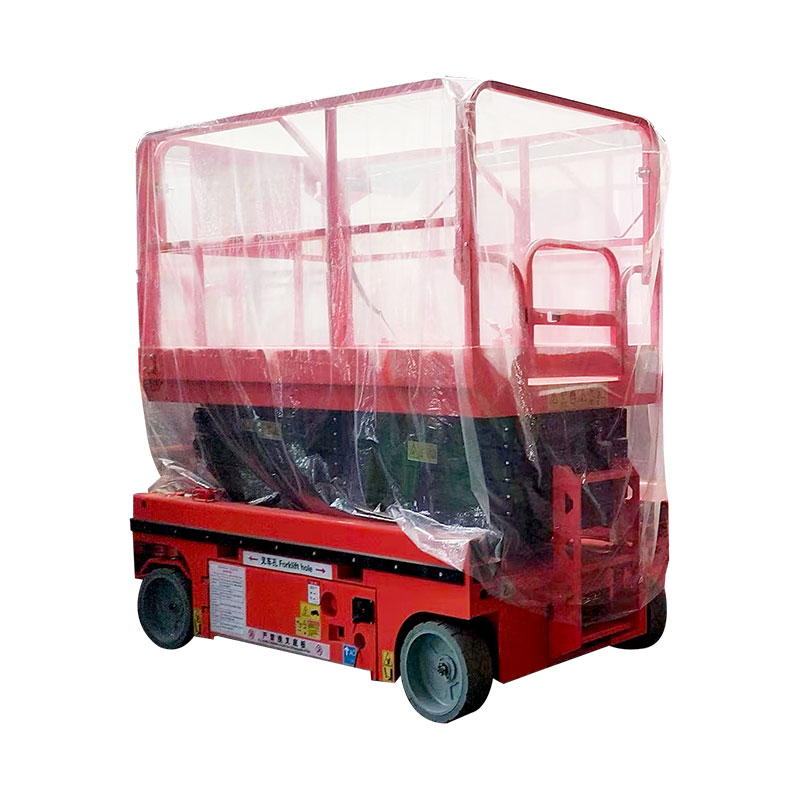

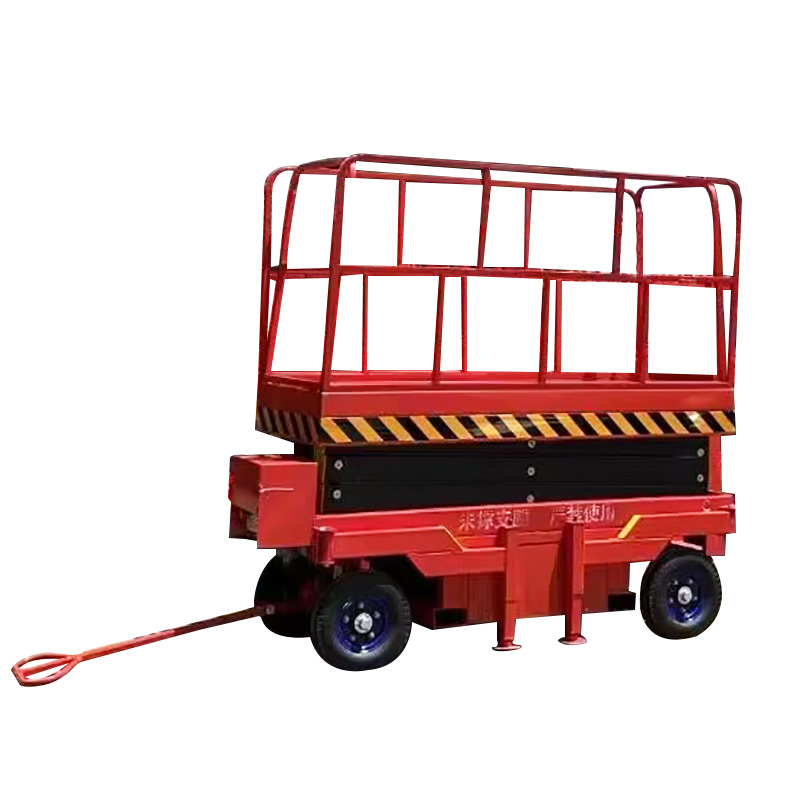

AIDA brand series scissor lift table is a kind of vertical lift, high-altitude operation equipment with a wide range of indoor and outdoor uses. It can be widely used in equipment maintenance, station, wharf, bridge, hall, plant indoor and outdoor mechanical installation, equipment maintenance, building maintenance. Scissor lift platform is mainly used in the logistics industry, production lines, the lifting, loading and unloading of goods from basement to floors, and can also be used for lifting stages, lifting consoles and so on.

Technical Data:

Type	Platform(mm)	Net elevation(m)	Load(kg)	Self weight（kg）	Overall dimension(mm)
ADYD/QX0.5-4	2010x 930	4	500	850	2016x1100x 1100
ADYD/QX0.5-6	2010x 930	6	500	950	2016x 1100x 1295
ADYD/QX0.5-7	2010x 930	6.8	500	950	2016x 1100x 1295
ADYD/QX0.5-8	2010x 930	8	500	1070	2016x 1100x 1415
ADYD/QX0.5-9	2010x 930	9	500	1170	2016x 1100x 1535
ADYD/QX0.5-10	2010x 1130	10	500	1360	2016x 1290x 1540
ADYD/QX0.5-11	2010x 1130	11	300	1480	2016x 1290x 1660
ADYD/QX0.5-12	2462 x 1210	12	500	1950	2465 x 1360x 1780
ADYD/QX0.5-14	2845x 1420	14	500	2580	2845x 1620x 1895
ADYD/QX0.3-16	2845x 1420	16	300	3780	2845x 1620x 2055
ADYD/QX0.3-18	3700x 1628	18	300	3900	3700x 1628 x 1950
