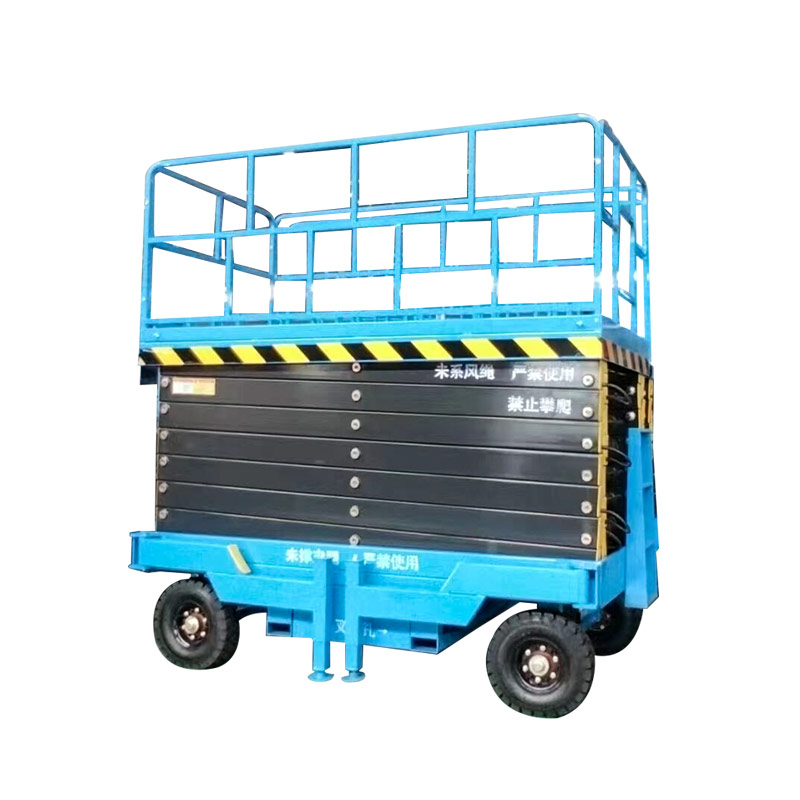

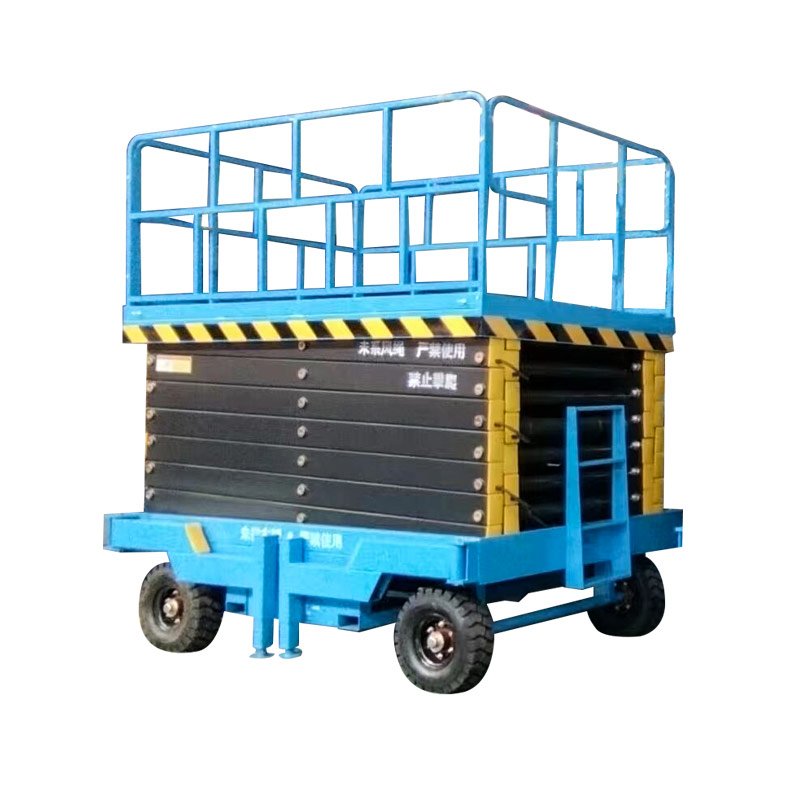

Hot Sale 4m-18m Manual Scissor Lift Platform with Bottom Price

Product Specification : The series scissor lift platform is new design mobile scissor lift, lifting height ranging from 4m to 18m,and loading weight from 300kg to 1000kg,with lifting mode of manually operating.

Product Advantage : 1. One man can operate on ground or on platform. 2. Solid steel platform with anti slip surface. 3. The variable speed motor to extend the life span of the battery and motor. 4. New designed scissor lift adopt Q345( manganese steel ),the reliability and safety can be ensured,we can supply 500 sets per month.

Applicable Places : Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company etc.

Send Inquiry Now

Hot Sale 4m-18m Manual Scissor Lift Platform with Bottom Price
Hot Sale 4m-18m Manual Scissor Lift Platform with Bottom Price
Product Details

Scissor Lift Platform is moved by man manually or towed by tractor or car. And lifts by different power,such as AC, DC, AC and DC, Diesel.

Item name

Hot Sale 4m-18m Manual Scissor Lift Platform with Bottom Price

Maximum platform height

4-18m

Maximum working height

6--20m

Power Source

move by tow,raise and down by AC/DC power

load capacity

300-1000KG

Horizontal platform extension

0.5 meter( optional configuration )

color

Blue;Red or according to client's requirements

gradeability

20%

Keyword

Scissor lift platform


Technical Data:



Type

Platform(mm)

Net elevation(m)

Load(kg)

Self weight(kg)

Overall dimension(mm)

ADYD/QX0.5-4

2010x 930

4

500

850

2016x1100x 1100

ADYD/QX0.5-6

2010x 930

6

500

950

2016x 1100x 1295

ADYD/QX0.5-7

2010x 930

6.8

500

950

2016x 1100x 1295

ADYD/QX0.5-8

2010x 930

8

500

1070

2016x 1100x 1415

ADYD/QX0.5-9

2010x 930

9

500

1170

2016x 1100x 1535

ADYD/QX0.5-10

2010x 1130

10

500

1360

2016x 1290x 1540

ADYD/QX0.5-11

2010x 1130

11

300

1480

2016x 1290x 1660

ADYD/QX0.5-12

2462 x 1210

12

500

1950

2465 x 1360x 1780

ADYD/QX0.5-14

2845x 1420

14

500

2580

2845x 1620x 1895

ADYD/QX0.3-16

2845x 1420

16

300

3780

2845x 1620x 2055

ADYD/QX0.3-18

3700x 1628

18

300

3900

3700x 1628 x 1950

Why Choose Us

· Professional manufacturer with many years' experience

· Good quality with competitive price

· Various payment items are acceptable

· Good service by experienced manager
