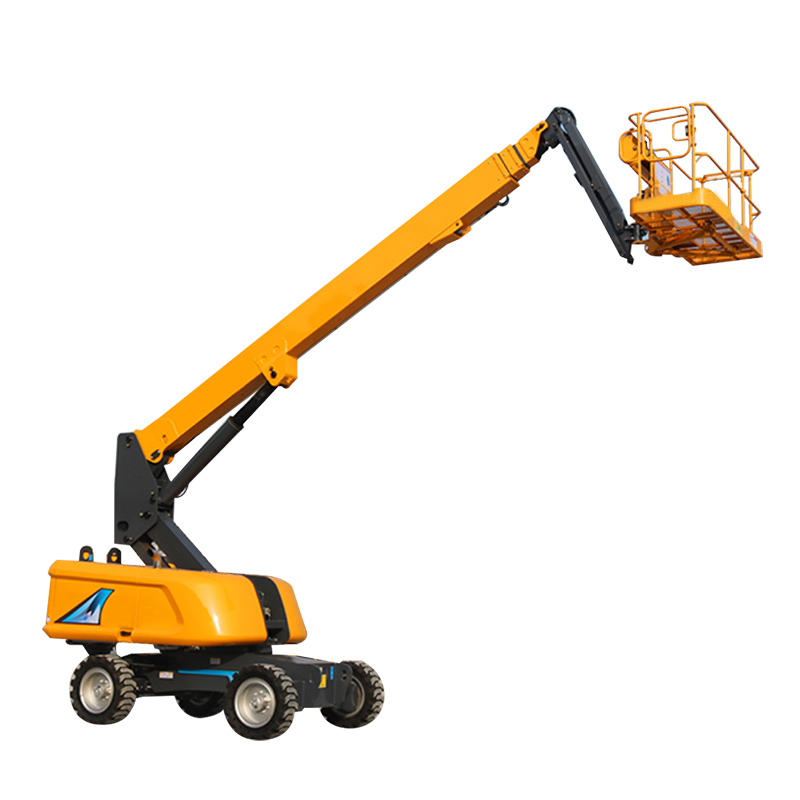

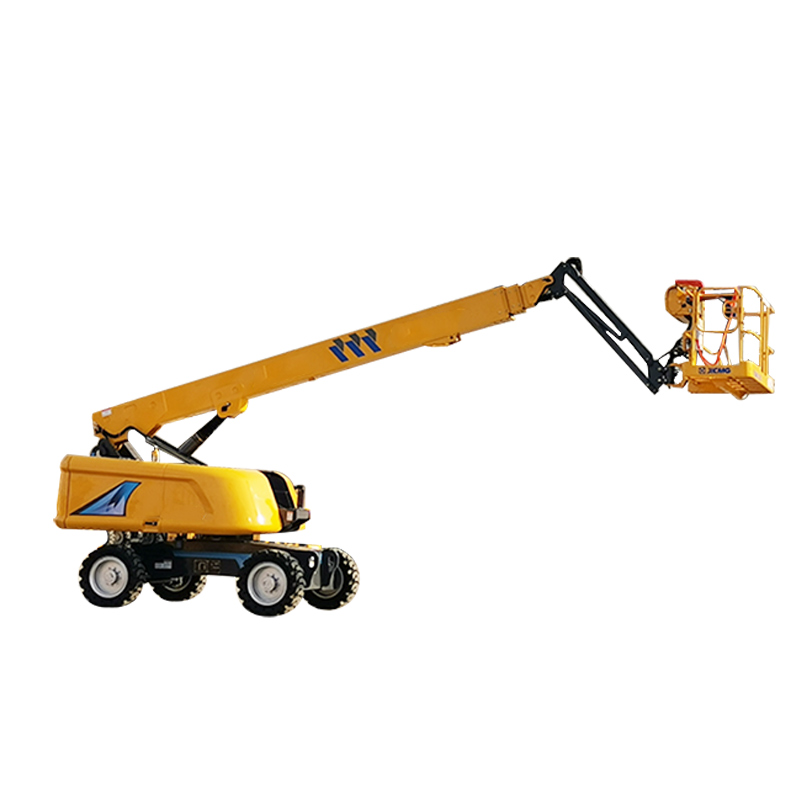

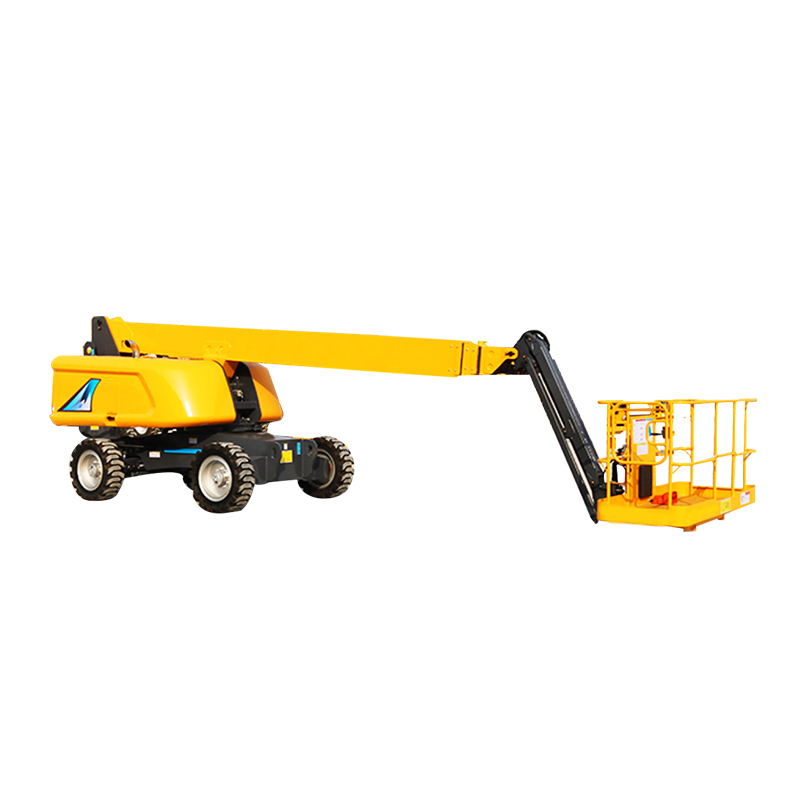

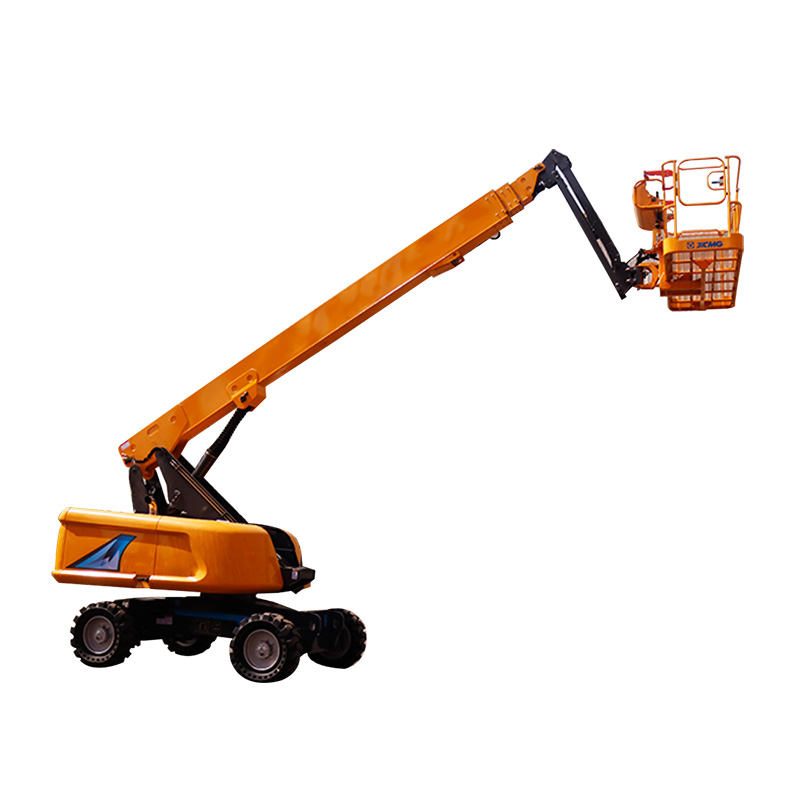

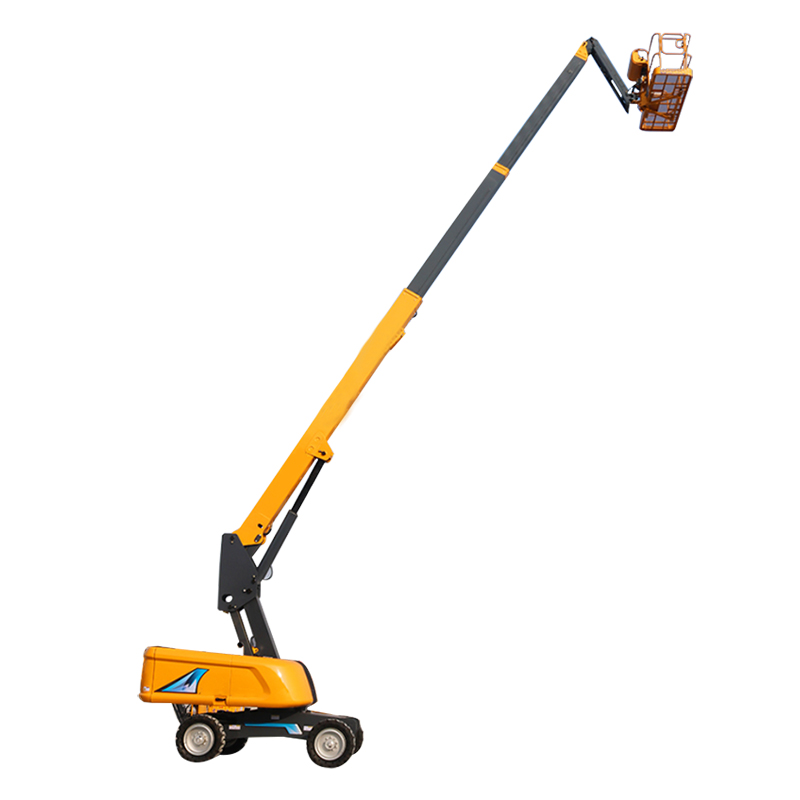

The Arm Aerial Work Platform (also known as a Boom Lift or Articulated Boom Lift) is an advanced, versatile piece of machinery designed to facilitate safe, efficient, and precise vertical and horizontal access to challenging work space at height.
Diesel straight arm aerial work platform can adapt to specific operating environment, that is, it can work in humid, corrosive, dusty, high temperature and low temperature environment.
The core feature of our arm aerial work platform is its articulated telescopic boom, meticulously constructed with high-strength materials to ensure durability and stability. This unique arm structure allows for multi-dimensional movement, extending upwards and outwards, enabling operators to maneuver around obstacles and reach precise locations that would otherwise be inaccessible. It consists of multiple hinged sections that articulate independently, thus providing a wide working envelope and enhanced flexibility.
The machine has the function of automatic walking. It can travel at fast and slow speeds under different working conditions. Only one person can operate the machine to continuously complete lifting, forwarding, retreating, steering, and rotating movements when working at heights. Compared with traditional hydraulic platforms, this machine greatly improve work efficiency, reduce the number of operators and labor intensity.
Product Features
1.Realize the dynamic adjustment of vehicle center of gravity, making the complete vehicle more stable.
2.The machine is excellent in drive and adaptability to road.
3.Making use of boom and making its work performance at leading edge.
4.Improves safety of extending mechanism and extends service life of steel rope.
5.Implementing the auto leveling, the weighting of platform payload, the dynamic monitoring and the fault warning.
Technical Parameter
| Item | ADYD/A2370-DSA | ADYD/A2790-DSA | ADYD/A3420-DSA | ADYD/A4020-DSA | ADYD/A4360-DSA | ADYD/A5860-DSA |
| Overall Length mm | 10150 | 12100 | 14300 | 14060 | 14950( 12000) | 19450/ 14600 |
| Overall Width mm | 2490 | 2490 | 2490/3800 | 2490/3800 | 2490/3800 | 2490/5030 |
| Overall Height mm | 2800 | 3050 | 3070 | 3000 | 3050 | 3050 |
| Wheel Base mm | 2500 | 3000 | 3800 | 3800 | 3800 | 5220/4590 |
| Maximum Working Heignt m | 23.7 | 27.9 | 34.2 | 40.2 | 43.6 | 58.6 |
| Maximum Platform Height m | 22 | 26.2 | 32.2 | 38.2 | 41.6 | 56.6 |
| Maximum Working Range m | 18.3 | 23.2 | 24.6 | 23.9 | 25 | 25.1 |
| Maximm Load Capacity kg | 340 | 340 | 230/340 | 230/340 | 230/450 | 230/450 |
| Boom Lffing Range ° | -5 ~ +75 | -5 ~ +75 | -6 ~ +75 | -7 ~ +75 | -1 ~ +75 | -1 ~ +80 |
| Crank Arm Lfing Range ° | -65 ~ +70 | -65 ~ +70 | 36C | -60 ~ +70 | -60 ~ +70 | -45 ~ +75 |
| Rotation Angle of Rtating Patorm ° | 360 | 360 | / | 360 | 360 | 360 |
| Maximum Tail Wagging mm | 1550 | 1400 | 2085/1430 | 2085/1430 | 2390/1725 | 2320 |
| Platform Size mm | 2400 x 900 | 2400*900/1800*800 | 2400*900 | 2400*900 | 2400*900 | 2400*900 |
| Rotation Angle of Paform ° | 180 | 180 | 180 | 160 | 160 | 160 |
| Total Weight kg | 12500 | 16600 | 18400 | 20600 | 21900 | 27200 |
| Maximum Travel Speed km/h | 6 | 6.1 | 5 | 5 | 5 | 4.5 |
| Minimum Turning Radius m | 6 | 6.7 | 10.8/8.2(Two-turn)6.8/5.8(Four-tirn) | 10.8/6.8(Two-turn)5.8/6.8(Four-turn) | 10.8/6.8(Two-turn)5.8/6.8(Four-turn) | 9.5/6.6 |
| Minimum Ground Clearance mm | 230 | 320 | 260 | 320 | 320 | 250 |
| Maximum Grade Ability % | 45 | 45 | 45 | 40 | 40 | 15 |
| Tire Specification | 355/55D625 | 385/65-22.5 | 385/65D22.5 | 445/50D710 | 445/50D710 | 445/50D710 |
| Engine Model | Perkins404D- 22T | Foton Cummins QSF2.8-71HP | Perkins 1 104D-44T | Perkins 114100B0385P | Perkins 1104D- -44T | Deutz TCD3.6L4 |
| Rated Power of Engine kw(r/min) | 43/(2600) | 53/(2200) | 55.5(2400) | 55. 5/240063/2600 | 55.5/2400 | 74. 4/2300 |
