Diesel crank-type aerial work platform comes with a power system, working height from 6 meters to 58 meters, with a short arm at the front of the boom can be adjusted freely, and has a variety of configurations, straight arm self-elevating work platform provides excellent performance And excellent durability, optional configurations include two-wheel and four-wheel drive, rough ground and a variety of power forms, diesel straight arm aerial work platform has self-walking function, can freely walk, back, turn, flexible movement, easy operation, free movement, can be completed by one person.
Product Features

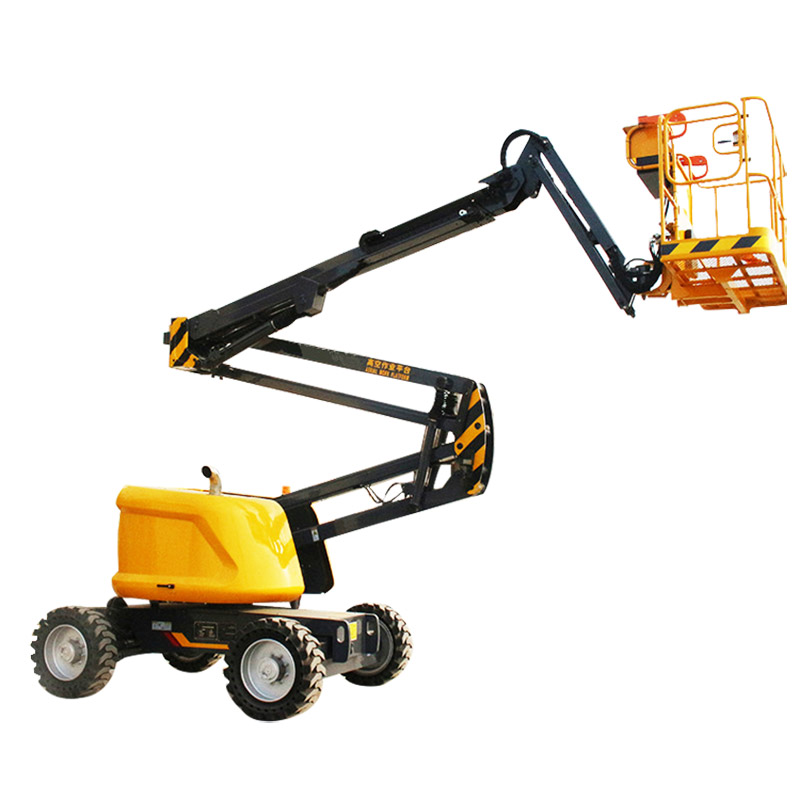

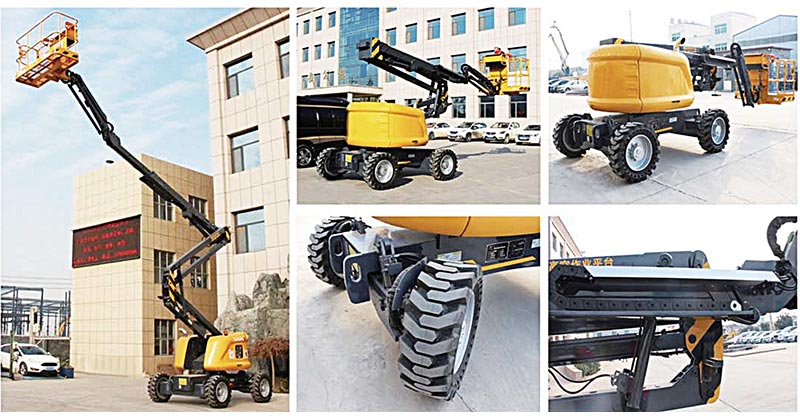

The diesel engine crank arm aerial work vehicle is a 20-meter-class articulated aerial work platform that aims to meet customer needs. It has an intelligent and complete control system, adopts a humanized layout, a lubrication-free design, and is easy to use and maintain; it provides comprehensive safety protection and a wealth of configuration options.

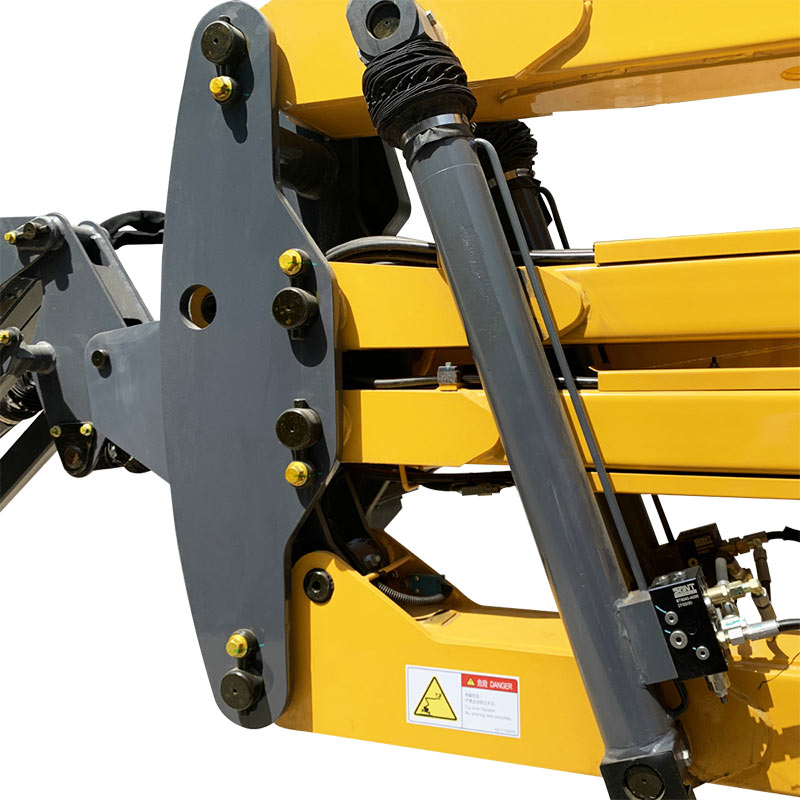

1. The “Σ-shaped” combined boom has a compact structure and flexible extension. It can achieve vertical lifting and horizontal extension, and has strong obstacle crossing ability; 160° rotatable platform provides a larger operating range; narrow turntable, compact layout, Realize “zero tail swing” and improve work efficiency.

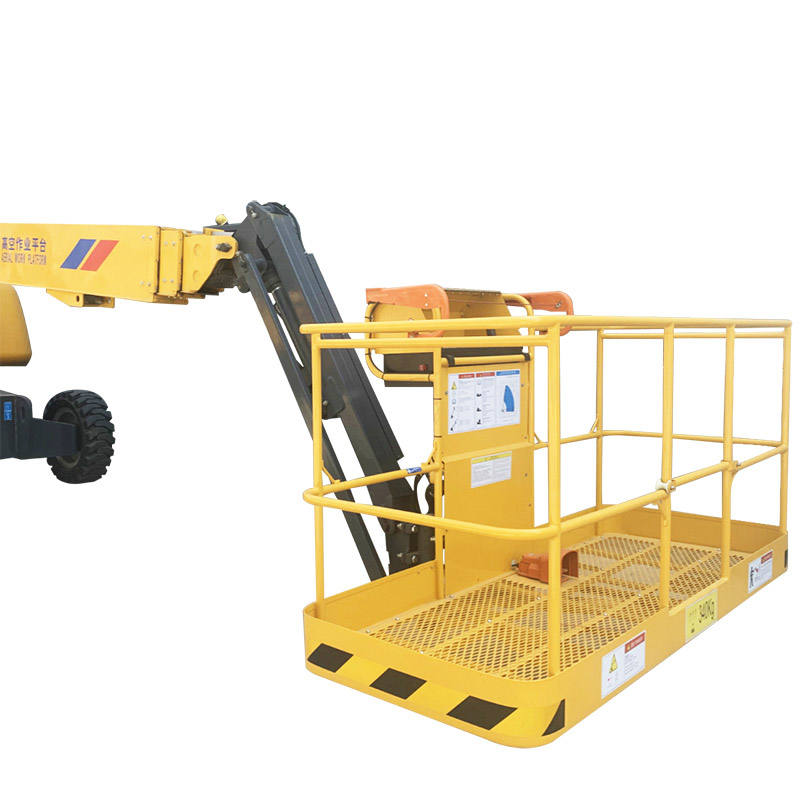

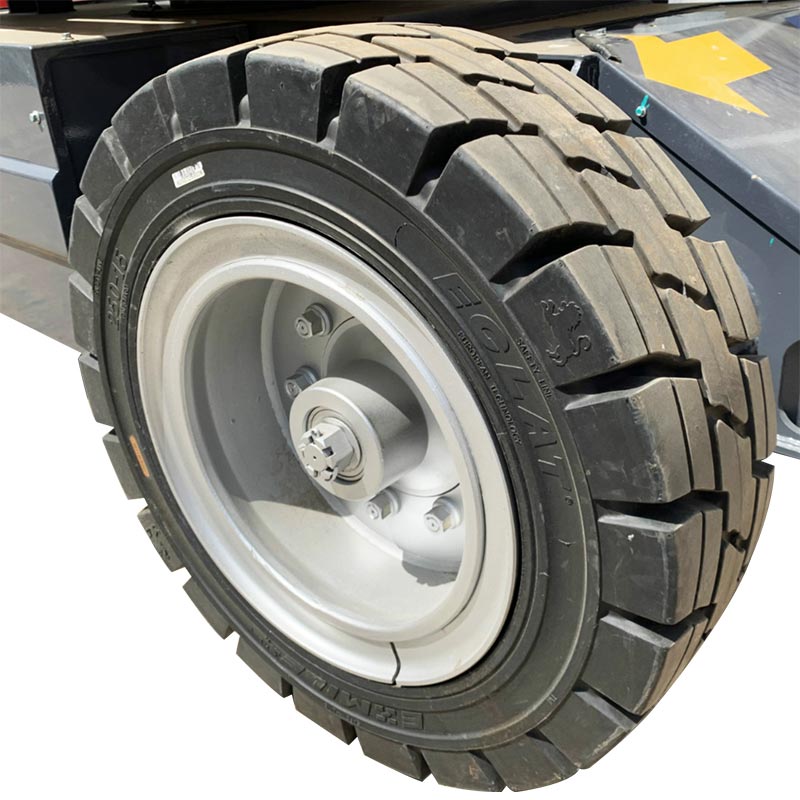

2. Equipped with off-road chassis, four-wheel drive system, perfusion off-road wide tires, full-time axle balancing system, 38kw strong power, so that the equipment has excellent terrain adaptability. The working platform is retractable and expandable, and has a larger working space. With a foldable fence, it is more convenient to transport and shift.

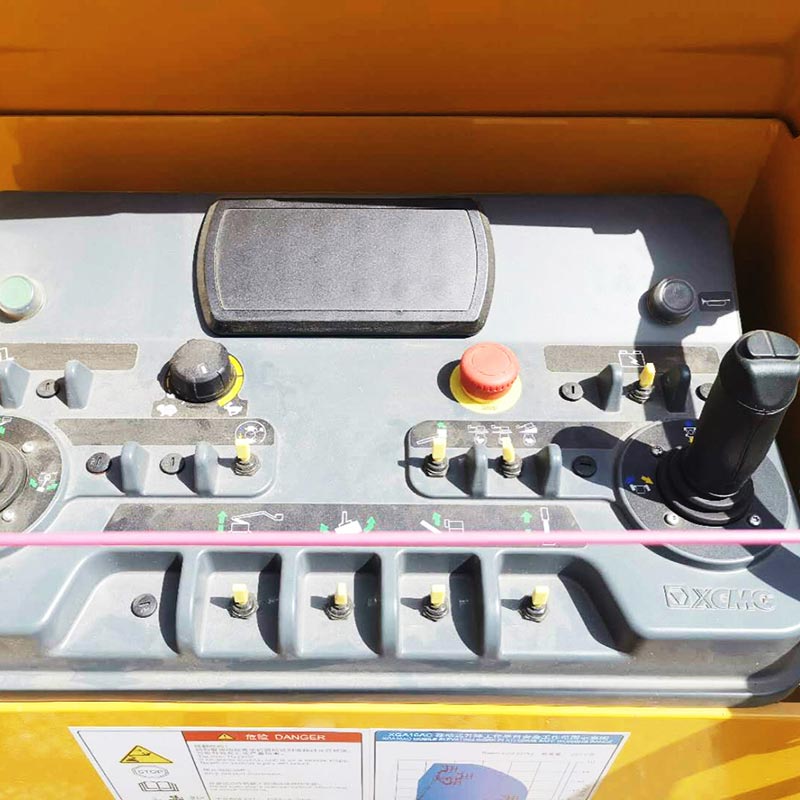

3. Full range operation, intuitive and friendly control panel, simple operation; accurate and efficient control of electro-hydraulic proportional system. Provide protection measures such as chassis tilt protection, platform overload alarm, emergency landing, safe speed limit, and flexible start-stop technology.
Technical Parameter
| Item |
DYD/A1590-DBA |
ADYD/A1575-DBA |
ADYD/A1550-DBA |
ADYD/A2010-DBA |
ADYD/A2608-DBA |
| Overall Length mm |
5780 |
6690 |
6420 |
9080 |
11280 |
| Overall Width mm |
2260 |
2260 |
1750 |
2490 |
2490 |
| Overall Height mm |
2130 |
2130 |
2000 |
2680 |
3000 |
| Wheel Base mm |
2100 |
2100 |
2010 |
2500 |
3000 |
| Maximum Working Heightm |
15.9 |
15.75 |
15.5 |
20.1 |
26.08 |
| Maximum Pattom Heightm |
14.2 |
14.05 |
13.8 |
18.4 |
24.38 |

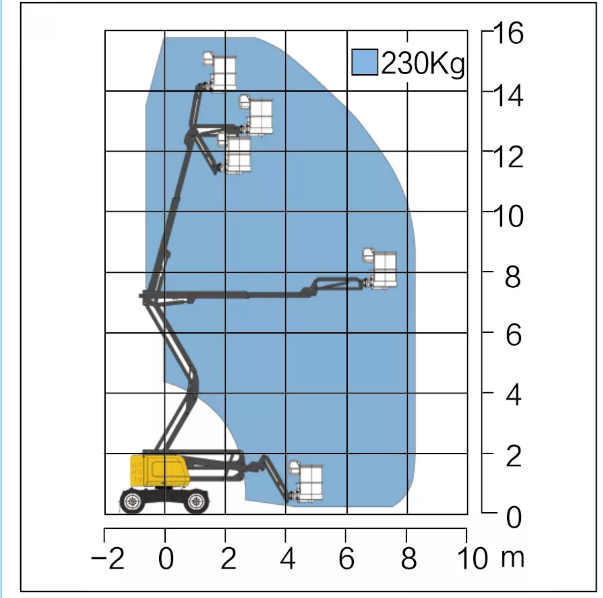

| Maximum Working Rangem |
8.09 |
8.22 |
8 |
11.9 |
18.9 |
| MaximumLoad Capacitykg |
230 |
230 |
230 |
230 |
230 |
| 1st Boom Luffing Range ° |
0~+60 |
0~+60 |
0~+60 |
0~+70 |
-1~+70 |
| 2nd Boom Luffing Range ° |
-22~+75 |
-8 ~ +75 |
-8 ~ +75 |
0~+75 |
-35 ~ +68 |
| Crank Arm Luffing Range ° |
- |
-60 ~ +80 |
-60 ~ +80 |
-65~+75 |
-60 ~ +70 |
| Rotation Angle of Rotating Platform
° |
355 |
355 |
355 |
360 |
360 |
| Maximum Tail Wagging mm |
0 |
0 |
0 |
0 |
1330(Arm raise) |
| Platform Size mm |
1830* 760*1150 |
1830*760*1150 |
700* 1400*1150 |
1830*760 |
2400*900 |
| Rotation Angle of Platform° |
180 |
180 |
180 |
180 |
180 |
| Total Weight kg |
6800 |
6900 |
6500 |
10600 |
17800 |
| Maximum Travel Speed km/h |
6.1 |
6.1 |
5.2 |
6 |
5 |
| Minimum Turning Radius m |
4.5 |
4.5 |
3.15 |
6 |
4.2m(four turns)/6.7m(two
turns) |
| Minimum Ground Clearancemm |
250 |
250 |
200 |
230 |
260 |
| Maximum Grade Abilty % |
45 |
45 |
30 |
45 |
45 |
| Tire Specification |
315/55D20 |
315/55D20 |
250-15 |
355/55D625 |
18/625 |
Engine Model
Rated Power of Engine
kw(/min) |
Perkins404D- -22
38/ ( 3000
) |
Perkins404D-22
38/ ( 3000
) |
/
/ |
Perkins404D-22
38/ ( 3000
) |
QSF2.8 71BHP/KDI2504 TCR
53(220)/55.
4(2600) |
