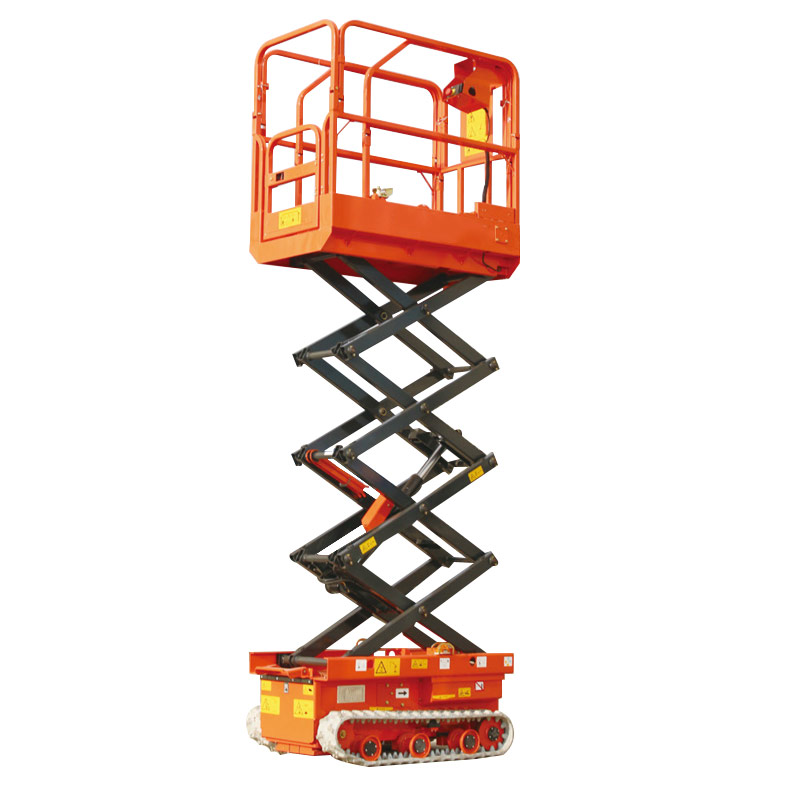

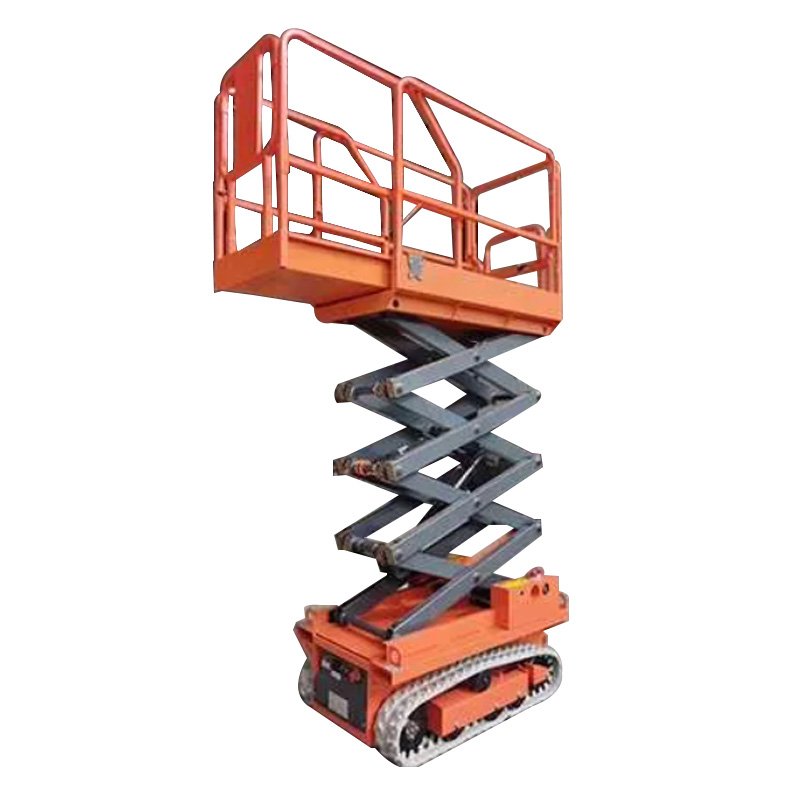

Mini crawler aerial working platform

Product specifications : Platform Height: 4.5 m, Platform capacity: 230 kg, Length: 1.5 m, Width: 1.097 m, Height: 2.020 m, Weight: 1050 kg.

Product advantages : Exquisite shape, the rubber track has little pressure on the ground, can transition, and work on any ground (such as delicate marble ground);

Applicable places : Now our mini crawler aerial working platform is widely used in various industries and places such as plant maintenance, equipment maintenance, warehousing and logistics, airports and ports, villa exhibition halls, aerial work, cleaning,installation,decoration,inspection,repairing stations,docks,exhibition halls, scaffolding,cladding,painting,air-conditioning,heating insulation,sandblasting...etc., and are recognized by our customers.

Send Inquiry Now

Product Details

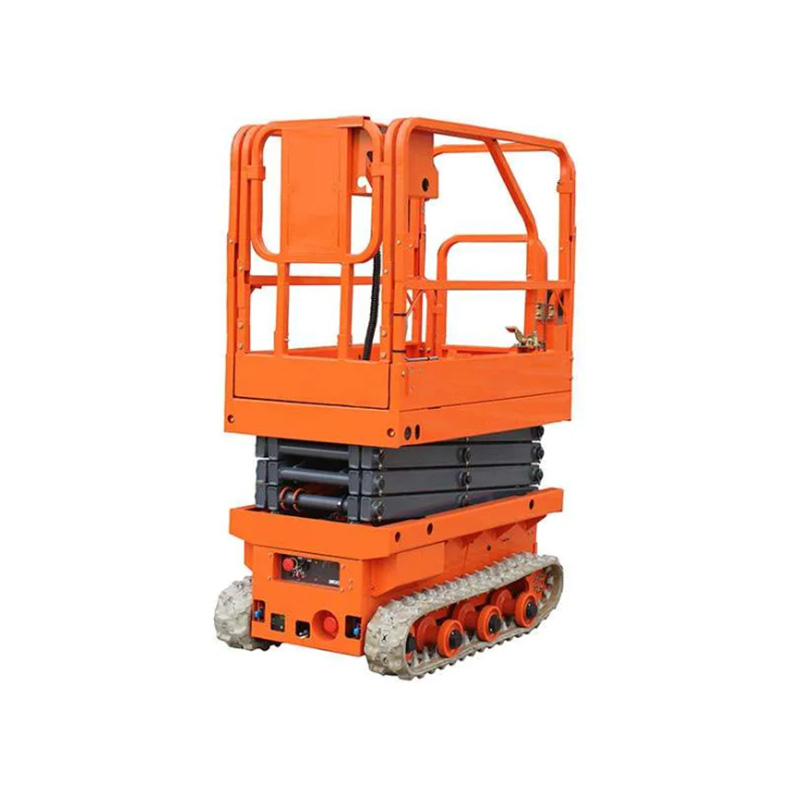

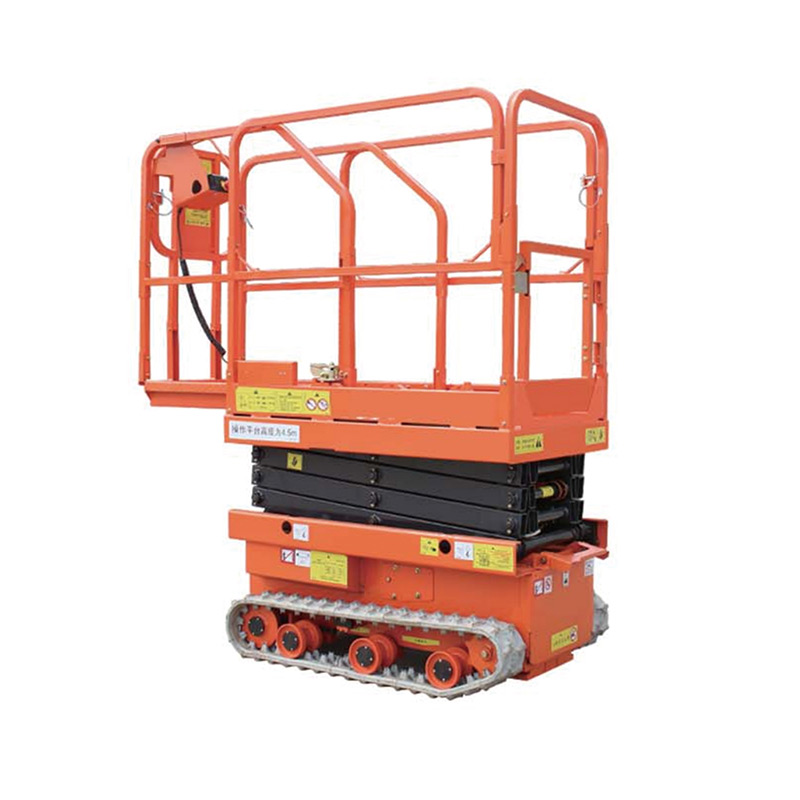

The compact size of this mini crawler aerial working platform makes it easier to get in and out of elevators and common doorways.

The crawler-type chassis makes it less force per unit area, can pass through rough roads, and can adapt to more different working environments, such as wooden floors.

Product Features

●25% gradeability

●Platform overload alarm device

●Tilt sensing device, prohibit lifting and walking when dangerous

●Zero turning radius, turn in place

●Low-speed and high-speed toggle switch

●Emergency lowering device in the state of no power

●Extendable Platform

●Foldable platform guardrail

●Fault automatic detection system

●Safety device to prevent the platform from suddenly descending due to the disconnection of the hydraulic oil pipe

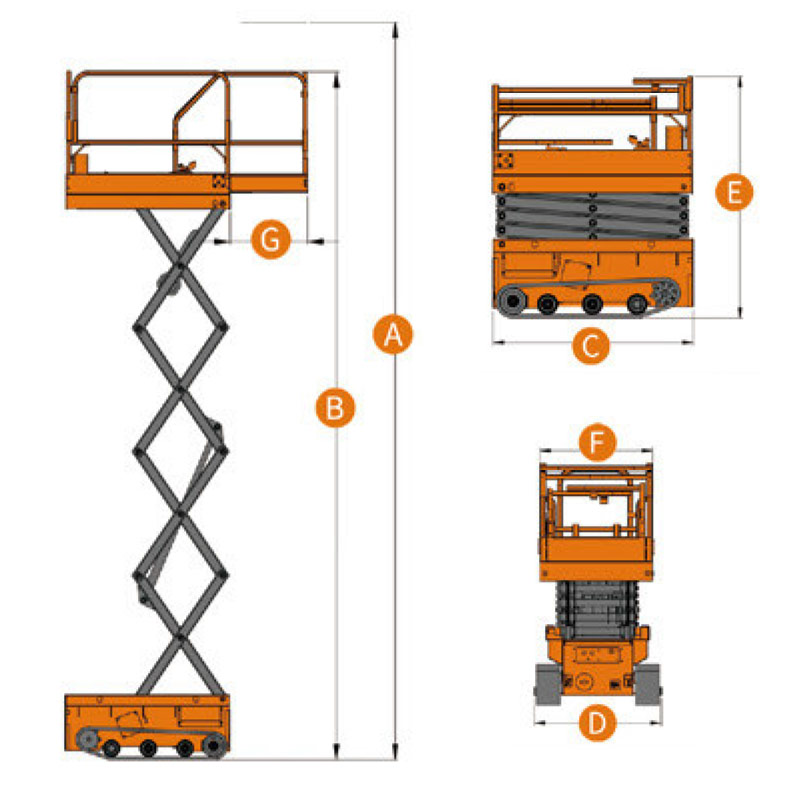

Technical Parameter

Model (Crawler Electric Drive)	ADYD/LD6-230SE
Maximum working height	6.00m
Maximum platform height	4.00m
Safe working load	230kg
Extended Platform Safe Working Load	113kg
Work platform size	1.300x0.700x 1.10m
Overall dimensions of the whole machine (the guardrail is not folded)	1.500(L) x1.097(W) x2.020(H)m
Overall dimensions of the whole machine (the guardrail is folded)	1.500(L) x1.097(W) x1.700(H)m
Countertop extension size	0.6m
Minimum ground clearance	**
Turning radius (inner wheel/outer wheel)	0
Rise	24V/1.5
Motor	2 x 24V/1.5KW
Lifting speed	3- -5m/min
Machine travel speed (folded state)	3.5km/h
Machine travel speed (lifted state, 3m)	0.8km/h
Battery	6/100Ahx4pcs
Charger	24V15A
Maximum gradeability	45%
Maximum allowable working angle	1.5°/3°
Track	1.220x0.15x0.27
Total Weight	About 1050kg
