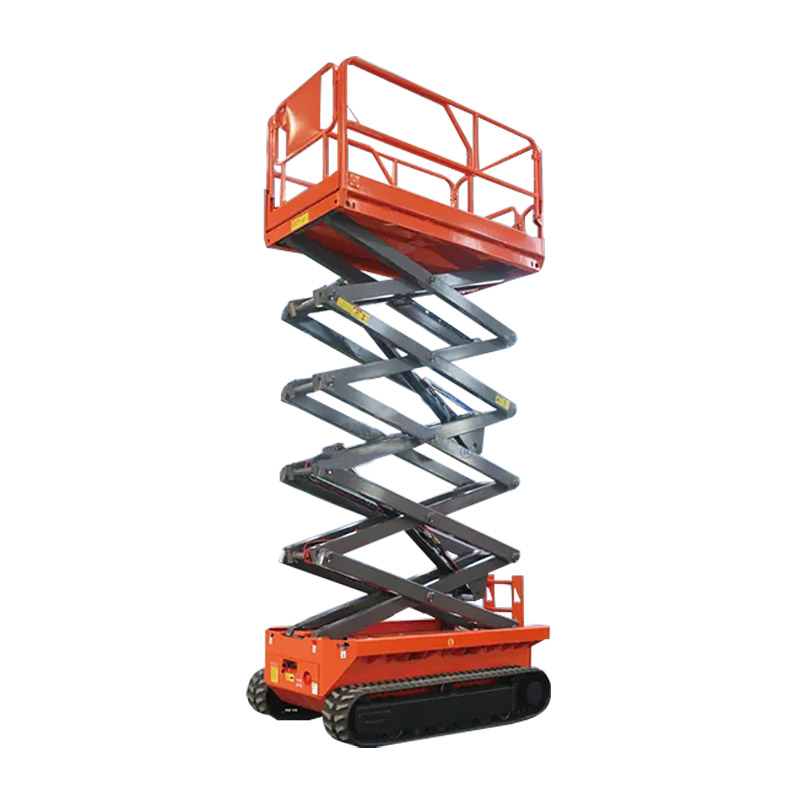

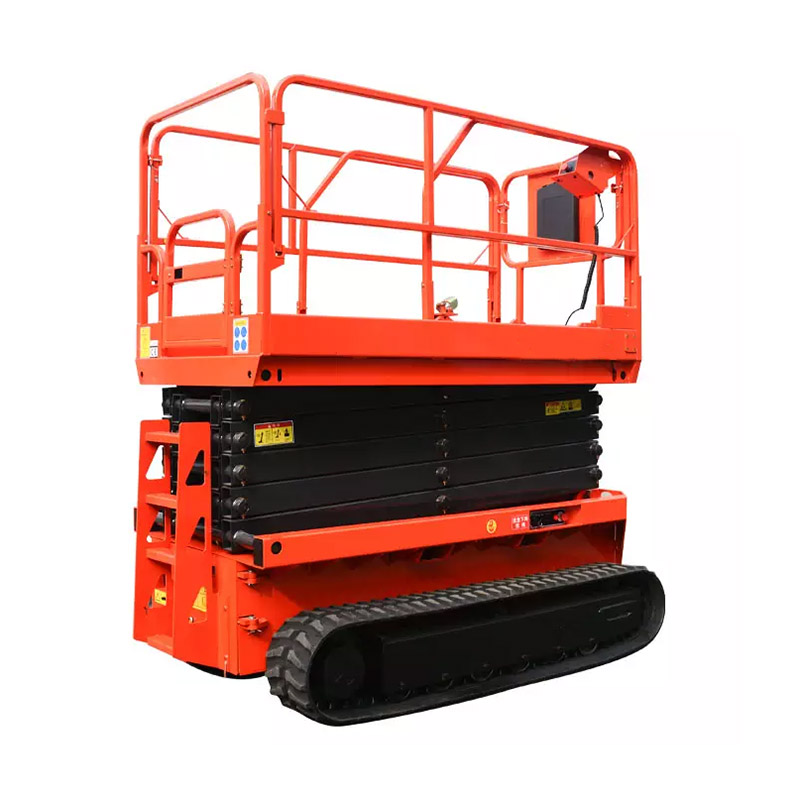

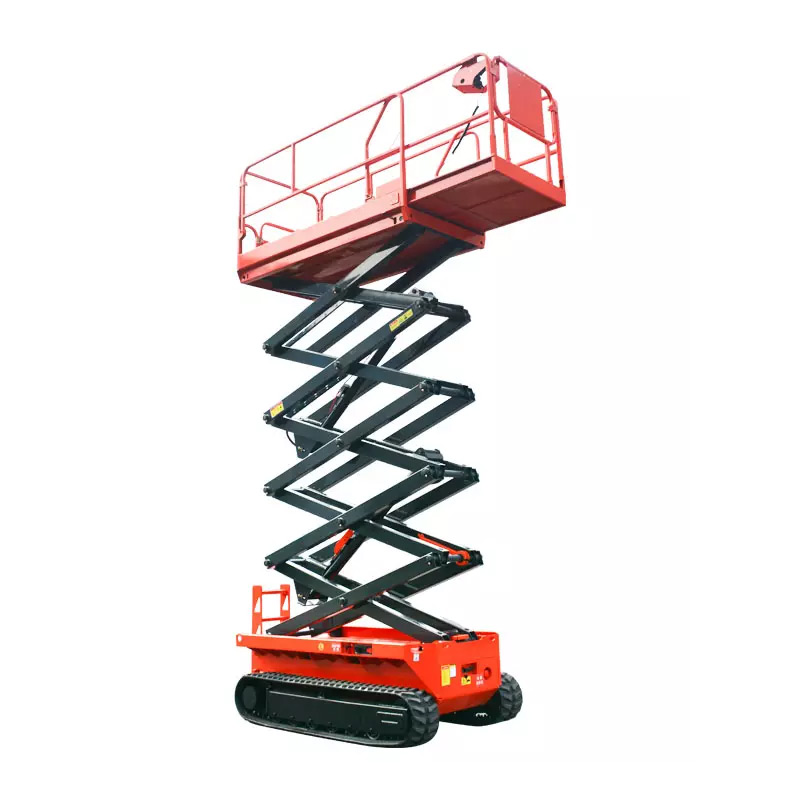

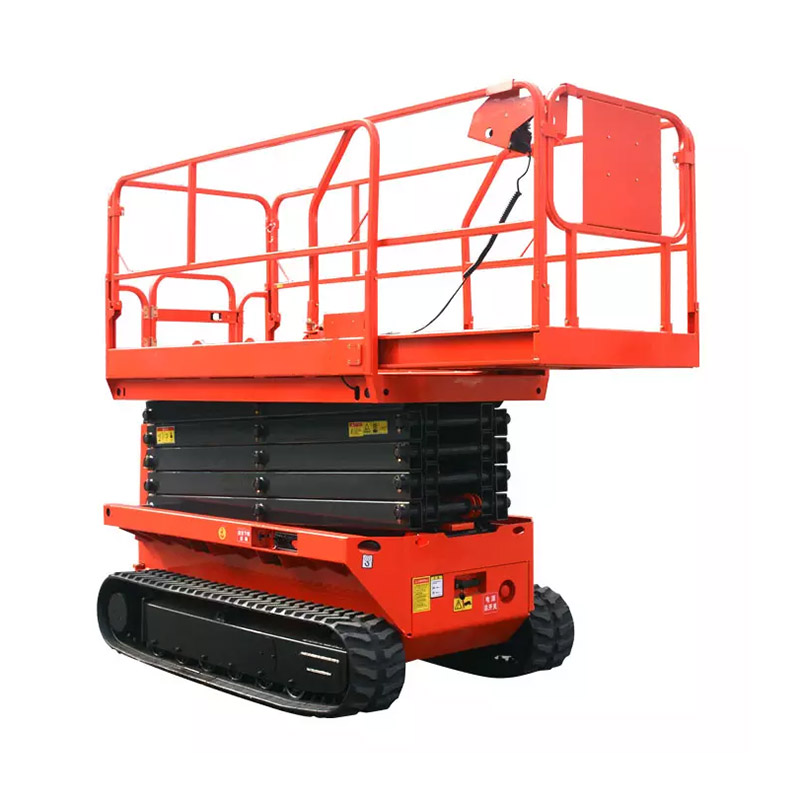

Cross country crawler aerial working platform

Product specifications : Light weight, small volume,it can be moved flexibly to the operation position by single person.The Minimum size of platform in the industry,1.15mX0.60m, so it is fit for operating in narrow space.Drawer type chassis is easy to maintain.Fault code display automatic,convenient to check and repair.

Product advantages : Cross country crawler aerial working platform doesn't need any outriggers, one man operates on the working platform.Moving forward, turning around, and lifting up are easily operated.Sort chargeable time and long dural time of the battery.Easily moved, spacious working platforms, smooth working condition, and high working efficiencyThe pedal extension platform can be quickly spread to the operating point. The foldable fence reduces the volume of the whole machine.25% climbing ability, can climb up the slope smoothly.Drawer-type chassis is easy to maintain.The fault code is automatically displayed for easy maintenance.The chargeable battery provides the power to move and steer around.The chargeable battery provides the power to raise up the lift platforms.

Applicable places : Now our cross country crawler aerial working platform are widely used in various industries and places such as plant maintenance, equipment maintenance, warehousing and logistics, airports and ports, villa exhibition halls, aerial work, etc., and are recognized by our customers.

Send Inquiry Now

Product Details

Cross country crawler aerial working platform, it has automatic walk function, quickly and slowly walk under different working state, when working at height, just need one person to operate the machine to continuously finish lifting, forward, backward, turning and others. The product has features of beautiful appearance, flexible mobility, simple operation, large loading capacity, stable lifting, reliability, safety, and more.

Cross country crawler aerial working platform is one kind of self-propelled scissor lift. It is famous for its highly efficient performance, very low failure rate, and sensitive speed adjustability. Motor drive supplies all power for moving and lifting. Cross country crawler aerial working platform can walk in very bad conditions, like muddy roads, grass, gravel road, shallow water road, etc. All of our hydraulic lifts are approved by European certificates and meet international standards. Certificated by CE, TUV, ISO, SGS, etc.

Compact structure can be modularized into a small space; With a new electric propulsion system, the ride provides more flexibility, more environmentally friendly exhaust emissions.

We not only have all kinds of advanced conventional hydraulic lifts but also customize products according to customer needs.

Product Features

●The surface of our Cross country crawler aerial working platform is shot blasting. It is very smooth and beautiful. The painting will be very anti-corrosion.

●Cross country crawler aerial working platform structure is very compact so as to guarantee the structure is strong enough.

●We adopt an automatic production line so that the quality is highly guaranteed.

●High strength steel structures, smoothly lift up and drop down, easily operated very few faults.

●Power sources: local power available at the working sites.

Technical Parameter

Model	Overal dimension (engh, wicth and heigh)mm	Table length and width mm	Platform height m	Table extension mm	Load kg	Self weight kg
ADYD/LD4-230	1500x 1097x1700	1300x700	4	600	230	230
ADYD/LD6-300	1975x 1210x2070	1669x745	6	900	300	300
ADYD/LD8-300	2518x 1390x2420	2271x1110	8	900	300	300
ADYD/LD10-300	2515x 1390x2041	2271x1110	10	900	300	300
ADYD/LD12-300	2855x 1390x2172	2271x1110	12	900	300	300
