A mini automatic aerial work platform, often referred to as a mini aerial platform or a compact man-lift, is a specialized piece of equipment designed to provide safe and efficient access to hard-to-reach areas. These platforms are typically smaller and more portable than standard aerial work platforms, making them ideal for use in spaces with limited clearance or in areas where larger equipment cannot fit.
The mini automatic aerial work platform is with turning function, 2 wheels drive and 2 wheels steering. Imported original battery, it can be used for more than 8 hours under general conditions. Built in 100-240 V wide voltage intelligent charger, and it has battery indicator light of fault diagnosis. The platform has very large load capacity and has horizontally extended function, ensure the host has higher working efficiency. Non-trace tires are durable and not easy to scratch the ground, can be skid resistant and prevent stuck by the impurities.Both ground control and platform control panel can work, the ground control provides the lifting feature and the platform control panel provides all functions include lifting, turning, walking and so on. With the battery and working hour meter, it is easy for the user to notice the battery volume and charge the battery at any time, and users can choose optional configuration of charging while working.

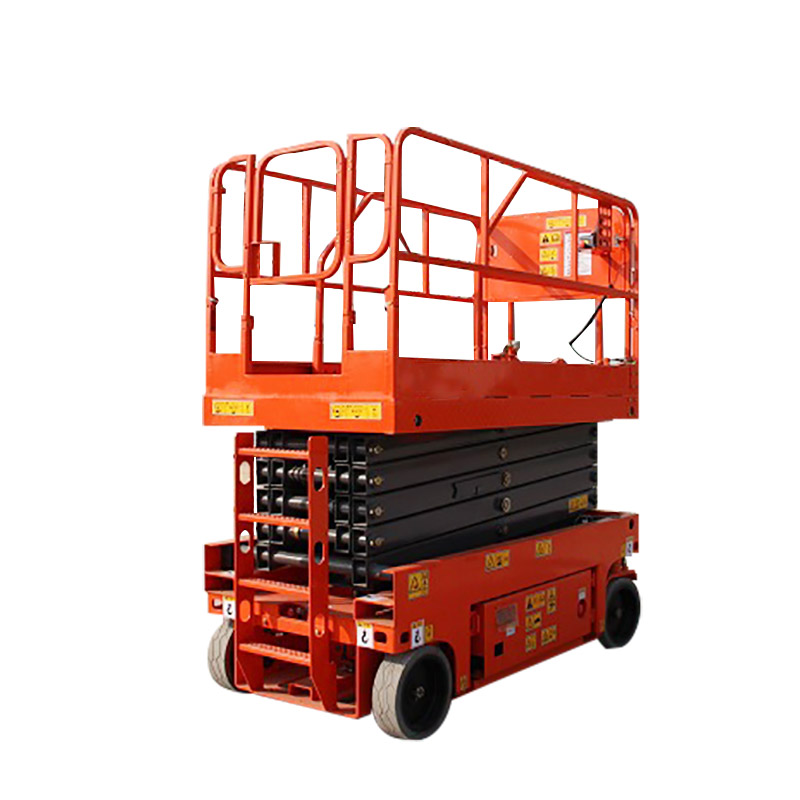

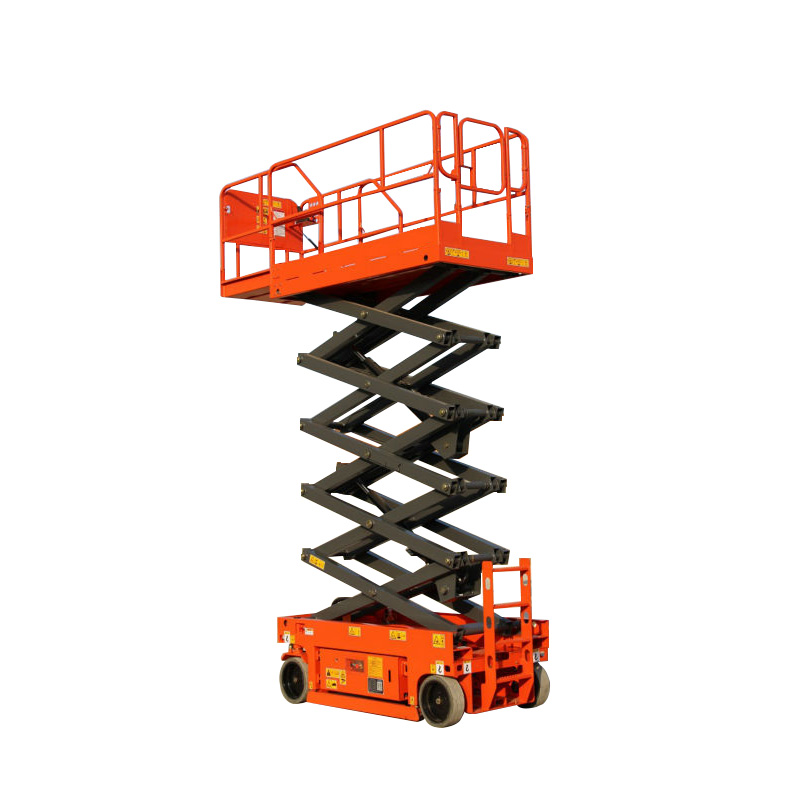

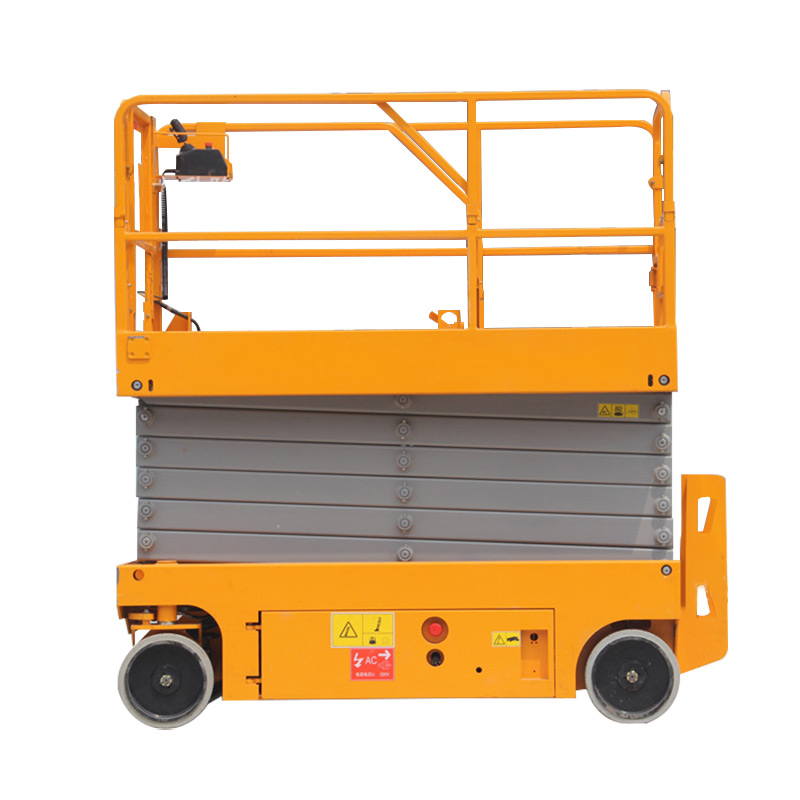

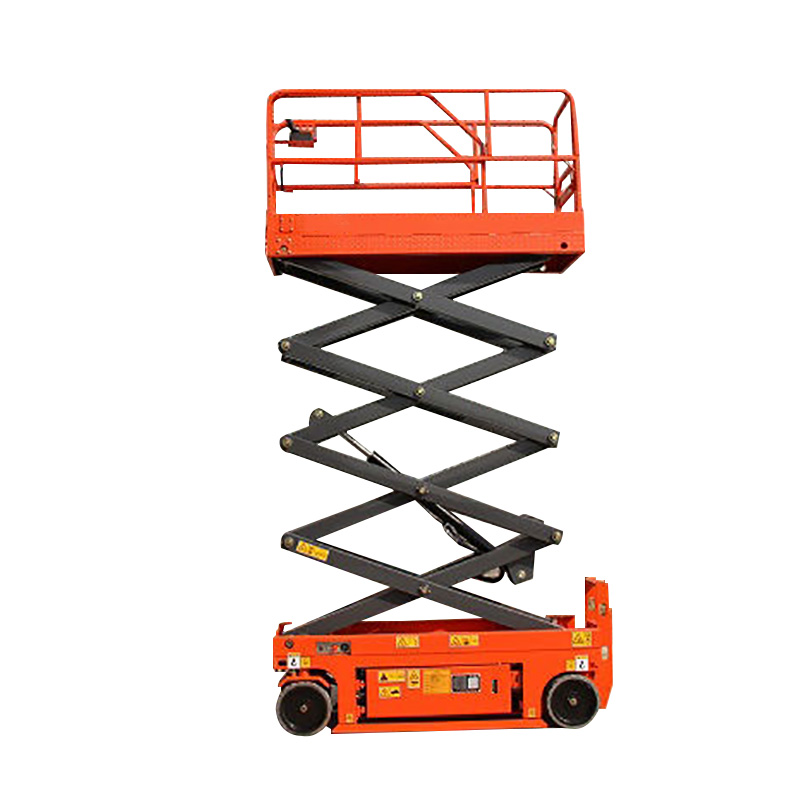

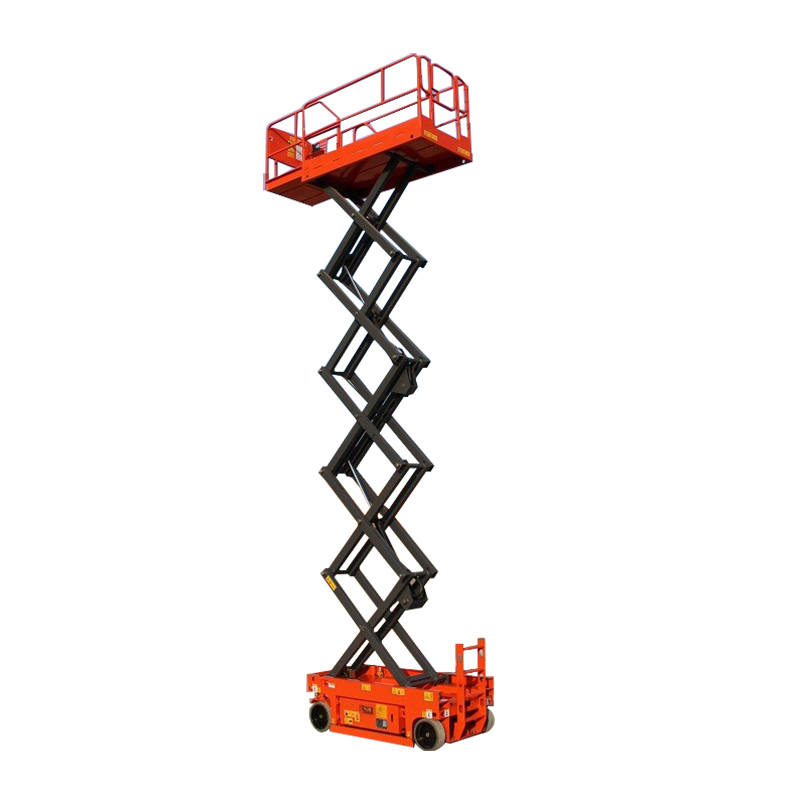

These platforms are designed to be compact, making them suitable for use in confined spaces such as between buildings, inside warehouses, or in narrow aisles. Here are some model photos and the design drawing.
Product Features
●Light weight, small volume, it can be moved flexibly to the operation position by single person.
●The Minimum size of platform in the industry, 1.15mX0.60m, so it is fit for operating in narrow space.
●Drawer type chassis is easy to maintain.
●Fault code display automatic, convenient to check and repair.
Technical Parameter
| Model |
ADYD/ZXZ5-240SE |
ADYD/ZXZ6-240SE |
| Safe load |
240kg |
240kg |
| Extended platform safety load |
100kg |
100kg |
| Maximum number of workers |
2 |
1 |
| E Maximum Platform Height |
3m |
4m |
| G Maximum working height |
5m |
6m |
| A Length of the whole machine |
1.44m |
1.435m |
| B Overall width |
0.76m |
0.76m |
| D height of the whole machine (the guardrail is not folded) |
2.03m |
1.985m |
| Height of the whole machine (the guardrail is folded) |
1.67m |
1.625m |
| Work Platform Dimensions (LxW) |
1.29x0.7m |
1.29 x 0.7m |
| F Platform extension dimension |
0.6m |
0.6m |
| Minimum ground clearance |
0.06/0.015m |
0.02m |
| Wheelbase |
1.05m |
1.1m |
| Minimum turning radius |
1.35m/0.3m |
1.35m/0.3m |
| Motor |
2x 24VDC/0.5kw |
2x 24VDC/0.5kw |
| Lifting motor |
24VDC/0.8kw |
24VDC/0.8kw |
| Machine travel speed (folded state) |
4.0km/h |
4.0km/h |
| Machine travel speed (lifted state) |
0.5km/h |
0.8km/h |
| Ascending plant descending speed |
4-6m/min |
4-6m/min |
| Battery |
2 x 12V/60Ah |
2 x 12V/60Ah |
| Maximum grade-ability |
25% |
25% |
| Maximum angle allowed for work |
2°/3° |
2° |
| Ground to counter top |
900mm |
900mm |
| Drive wheel |
Medium 230 x 80mm |
Medium 230 x 80mm |
| Front wheel |
Medium 230 x 80mm |
Medium 230 x 80mm |
| Total Weight |
890kg |
860kg |
