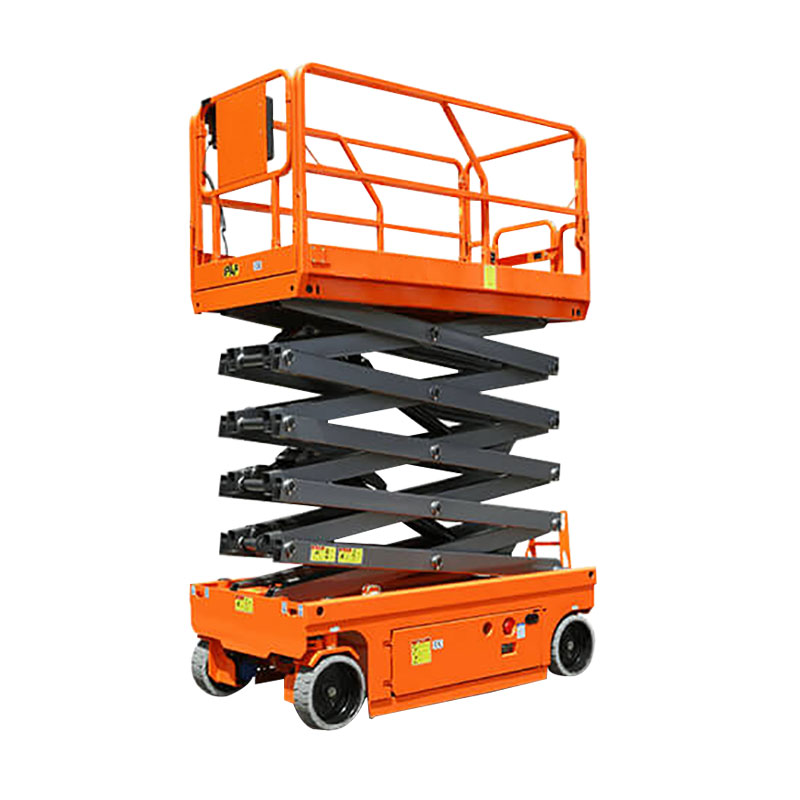

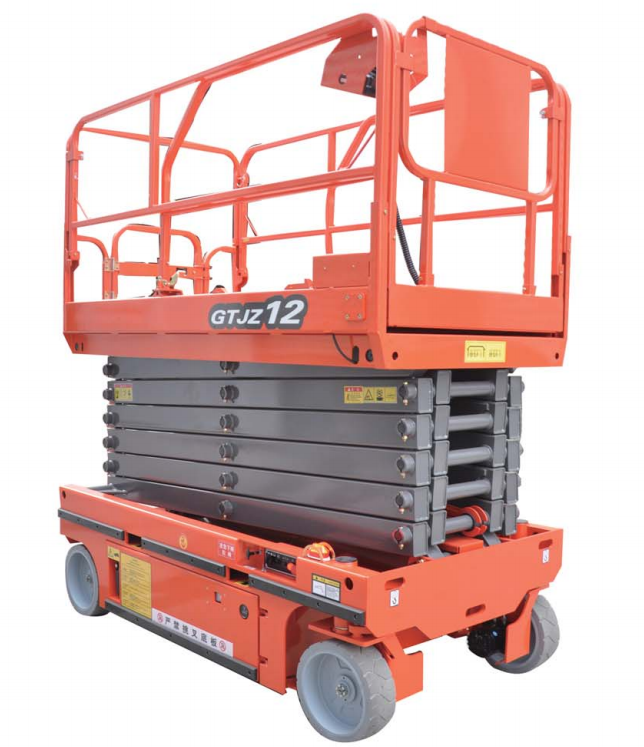

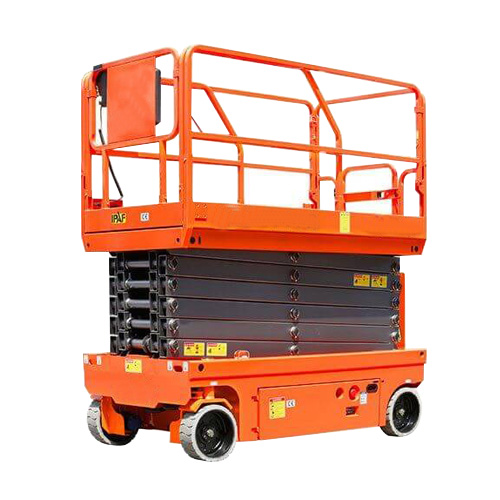

Self-propelled scissors lift has the function of automatic walking machine, integrated design, built- in battery power,meet in different working conditions, no external power supply, no external power traction can lift freely, and the equipment running and steering is also just a person can be completed. The operator only needs to master the control handle to the equipment before the complete equipment forward and backward, steering, fast, slow walk and equal action. Self scissors type lifting platform is mobile and flexible, convenient operation, labor saving, make high-altitude operations more efficient and convenient, is the ideal equipment for high-altitude operations, the safety production of the modern enterprise. You can check some details below. We offer customization service if you have specific requirements of the lifting platform.

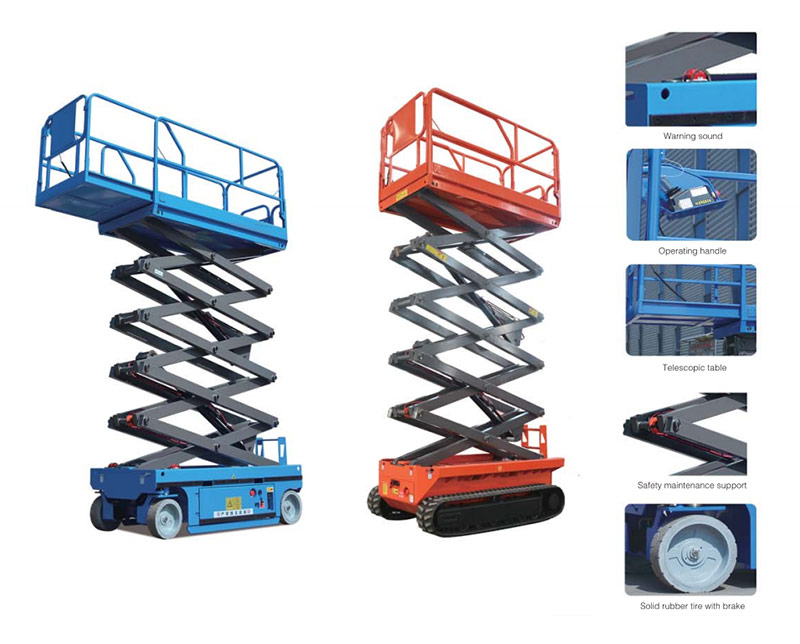

Features
Battery drive, lower noise, non-pollution, suitable for all kinds of working environment

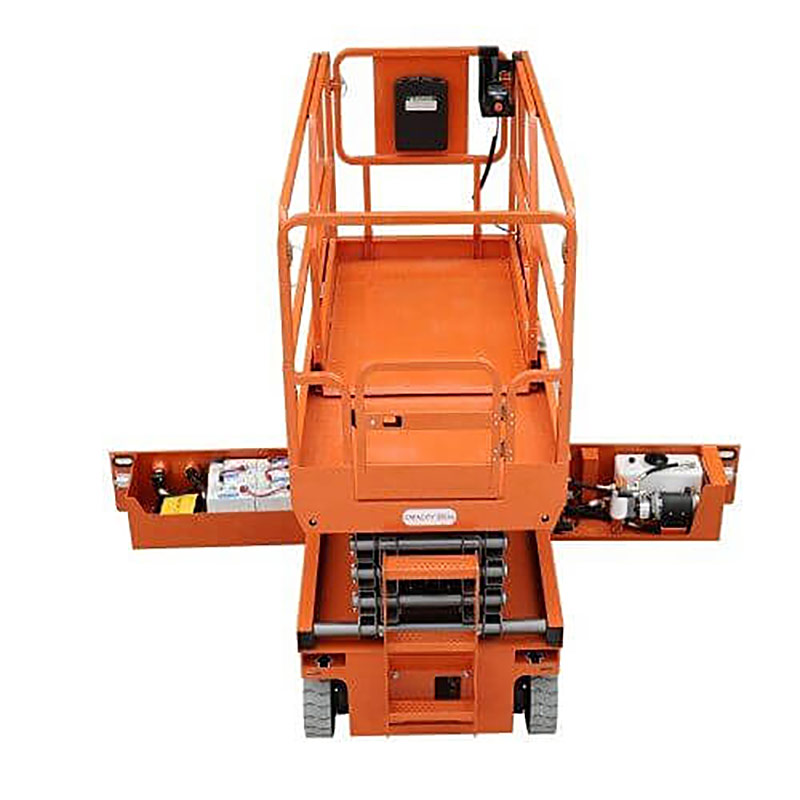

Pothole device More secure and reliable
Uni-direction extended platform and can reach work position quickly
automatic display of fault code for easy maintenance
Product Details
Model |
ADYD/ZXZ8-500 |
ADYD/ZXZ10-450 |
ADYD/ZXZ12-320 |
ADYD/ZXZ14-320 |
ADYD/ZXZ16-227 |
Working Height Maximum |
8.00m |
10.00m |
12.00m |
13.8m |
15.7m |
Platform Height Maximum |
6.00m |
8.00m |
10.00m |
11.8m |
13.7m |
Safe working load |
500kg |
450kg |
320kg |
320kg |
227kg |
Extended platform safe working load |
113kg |
113kg |
113kg |
113kg |
113kg |
Working platform size(L*w*h) |
2.2x1.1x1.13m |
2.26x1.13x1.13m |
2.26x1.13x1.13m |
2.26x1.12x1.13m |
2.64x1.12x1.13m |
Overall size |
2.475x1.15x2.15m |
2.475x1.15x2.28m |
2.475x1.15x2.41m |
2.475x1.19x2.54m |
2.8x1.39x2.59m |
Overall size |
2.475x1.15x1.711m |
2.475x1.15x 1.85m |
2.475x1.15x1.974m |
2.475x1.15x2.105m |
2.8x1.39x2.096m |
Length extension deck |
0.9m |
0.9m |
0.9m |
0.9m |
0.9m |
Ground clearance-center |
0.1/0.02m |
0.1/0.02m |
0.1/0.02m |
0.1/0.02m |
0.1/0.02m |
Wheelbase |
1.89m |
1.89m |
1.89m |
1.89m |
2.26m |
Turning radius (inner / outer wheel) |
0.15/2.3m |
0.15/2.3m |
0.15/2.3m |
0.15/2.3m |
0.15/2.85m |
Lifting / driving motor |
24V/4.5kw |
24V/4.5kw
| 24V/4.5kw |
24V/4.5kW |
24V/4.5kW |
|
Lifting speed |
3-5m/min |
3-5m/min |
3-5m/min |
3-5m/min |
3-5m/min |
The machine speed (folded state) |
4km/h |
4km/h |
4km/h |
4km/h |
3.5km/h |
Machine travel speed (lifting state) |
0.8km/h |
0.8km/h |
0.8km/h |
0.8km/h |
0.8km/h |
Battery |
4x6V/225ah |
4x6V/225ah |
4x6V/240ah |
4x12V/300ah |
4x12V/300ah |
Charger |
24V/30A |
24V/30A |
24V/30A |
24V/30A |
24V/30A |
Max Climb Capability |
25% |
25% |
25% |
25% |
25% |
Maximum allowable working angle |
1.5°/3° |
1.5°/3° |
1.5°/3° |
1.5°/3° |
1.5°/3° |
Tyre |
Φ381x127mm |
Φ381x127mm |
Φ381x127mm |
Φ381x127mm |
Φ381x127mm |
Weight |
2060kg |
2190kg |
2430kg |
2900kg |
3400kg |
