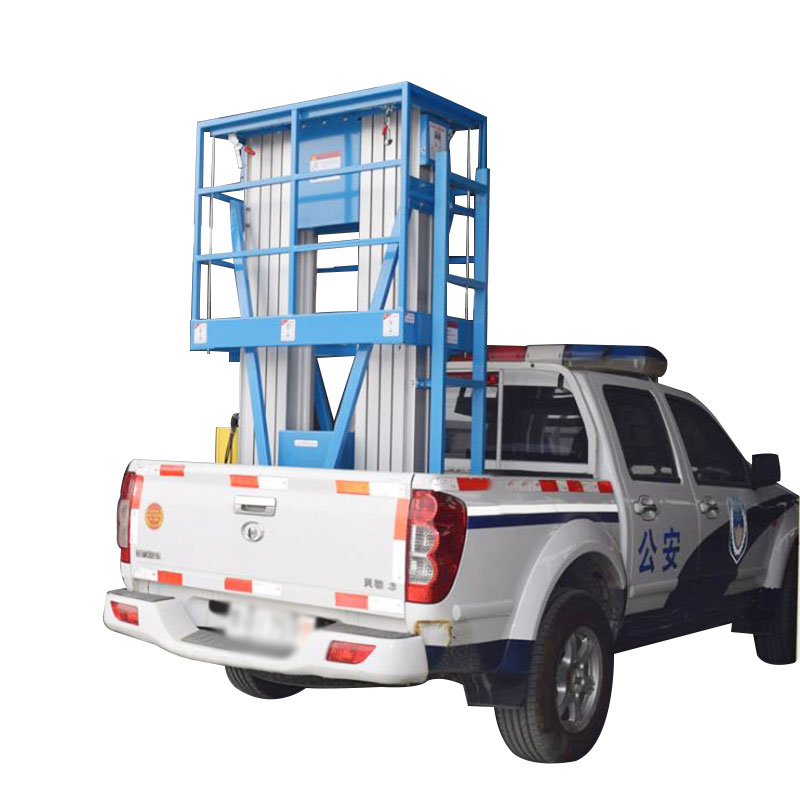

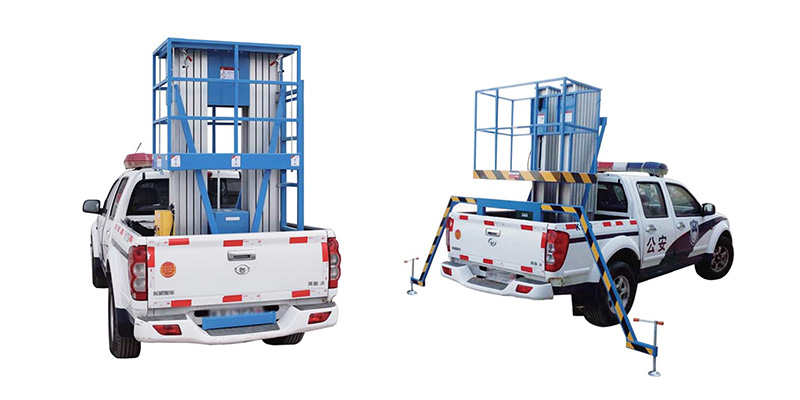

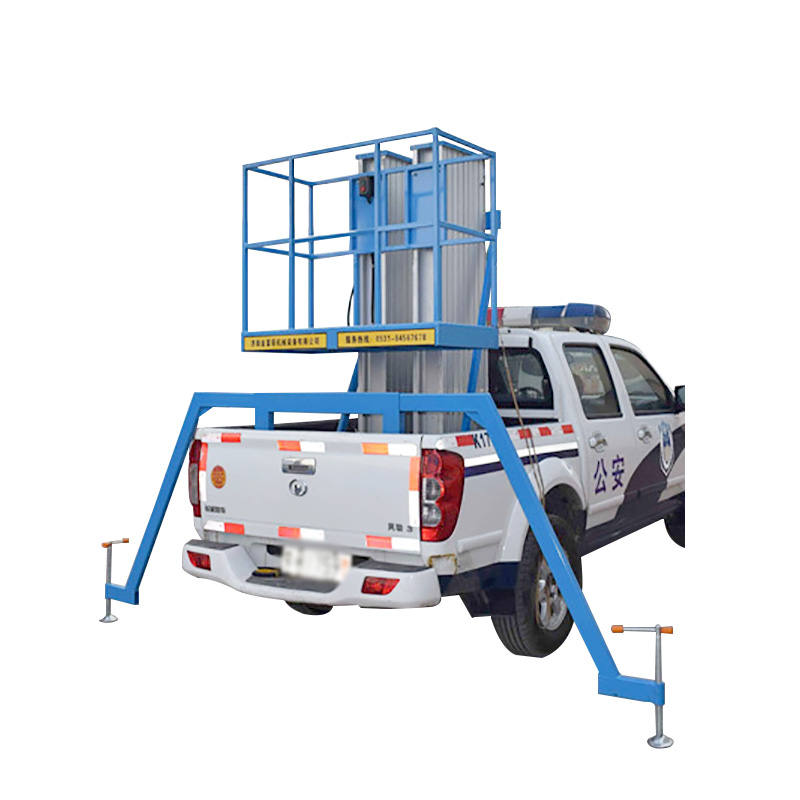

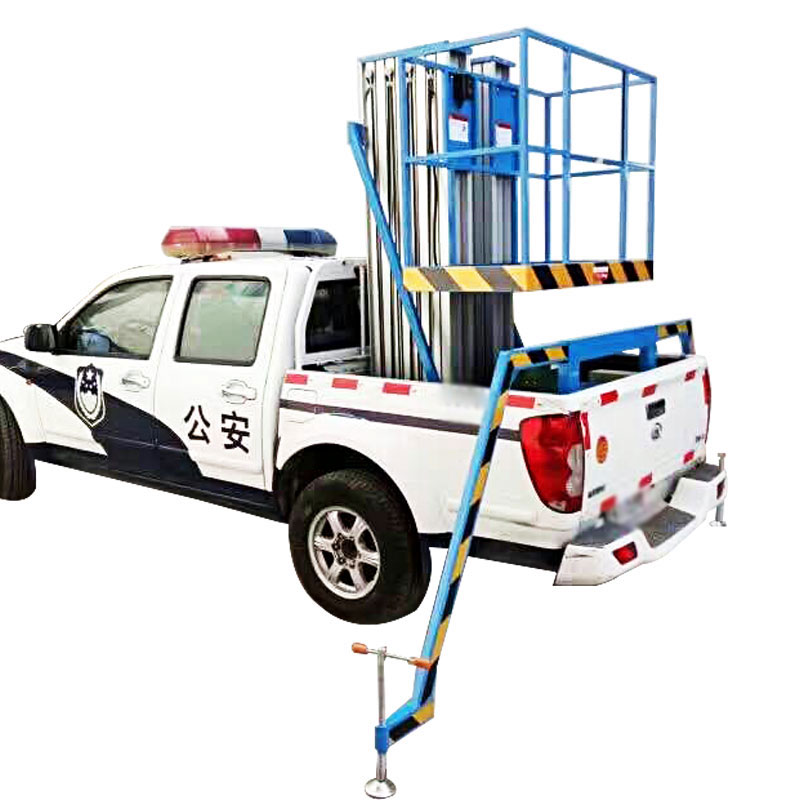

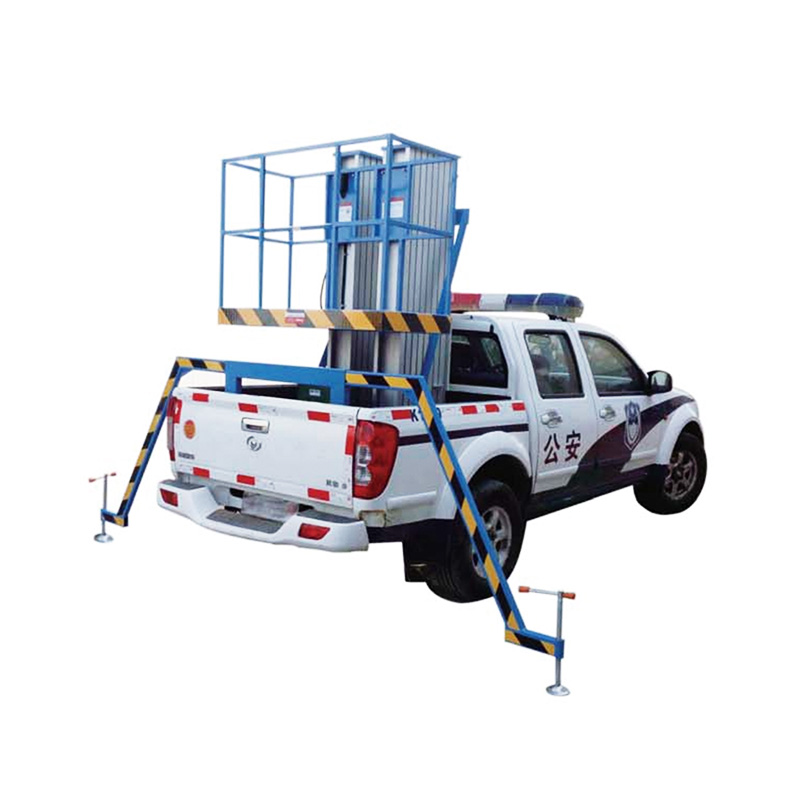

The platform and supporting structure are made from aluminum alloys, which offer strength, durability, and light weight, making it easy to transport and maneuver, while also being rust-proof for longer lifespan. Mounted on a vehicle, the aerial work platform is integrated onto a truck or van chassis, allowing it to be driven to different locations. It can have self-propelled features that allow for movement when the platform is extended.
The platform can extend vertically and sometimes horizontally, providing workers safe access to heights up to several stories high. It often comes with safety features like guardrails, harness anchor points, and automatic leveling systems.
The lift car is featured fast movement speed,large operation range, lifting without external power, strong maneuverability. They have been widely used in municipal construction and maintenance, street lighting, highway facilities maintenance ,engineering repair, landscape design and trim and other aerial-work industries.
Features
1. Small size and convenient expansion and contraction; during the lifting, the expansion and contraction are stable and safe; after the lifting, the structure is firm and the efficiency is high.
2. Easy to move, strong mobility, support customization;
3. High-strength guardrails are safe from falling, and high-strength guardrails make high-altitude operations safe and convenient;
4. Safe and efficient remote control box: The aluminum alloy elevator is equipped with a remote control box, which can be controlled by the control box under the equipment or by the remote controller above or beside the equipment. It is safe and efficient, saving you time. Effort;
5. Emergency lowering button to ensure safety: in an emergency, turn the emergency lower knob counterclockwise to make the platform fall. Under normal circumstances, the emergency lower knob should be rotated clockwise to the end, otherwise the platform cannot be lifted;
6. Shot blasting and derusting electrostatic spraying: All equipment is treated by large-scale sand blasting and shot blasting, and then the surface spraying treatment is completed through the electrostatic spraying line with a total length of more than 300 meters, and the paint surface of the whole machine is beautiful and bright;
7. The equipment is divided into single-column, double-column conventional upper guardrail, and double-column side guardrail. The height of the product is optional from 4-14 meters, and the product load is optional from 100-300kg. It adopts high-strength and high-quality aluminum alloy materials, and Q235 steel plate thickens the chassis. , To prevent bumps, the equipment is equipped with standard control and remote control, which is convenient for aerial workers to operate the equipment, saving time and efficiency.
A vehicle-mounted aluminum alloy aerial work platform offers an efficient, flexible, and safe solution for completing tasks at height in various environments and industries.
Technical Parameter
| Product name | Model | Maximum height of platform (m) | Rated load capacity (kg) | The size of the platform (m) | Power supply voltage V | Weight of the whole machine (kg) | Dimensions (m) |
| Single mast | ADGTWY4-100-1 | 4 | 100 | 0.65*0.5 | 220 | 100 | 1.35*1.45*1.91 |
| Single mast | ADGTWY6-100-1 | 6 | 150 | 0.65*0.5 | 220 | 100 | 1.35*1.45*1.91 |
| Single mast | ADGTWY8-100-1 | 8 | 130 | 0.65*0.65 | 220 | 100 | 1.35*1.45*1.91 |
| Single mast | ADGTWY10-100-1 | 10 | 130 | 0.65*0.65 | 220 | 100 | 1.35*1.45*1.91 |
| Double mast conventional guardrails | ADGTWY6-200-2 | 6 | 300 | 1.2*0.63 | 220 | 150 | 1.35*1.45*1.91 |
| Double mast conventional guardrails | ADGTWY8-200-2 | 8 | 300 | 1.2*0.63 | 220 | 150 | 1.35*1.45*1.91 |
| Double mast conventional guardrails | ADGTWY10-200-2 | 10 | 250 | 1.5*0.63 | 220 | 150 | 1.35*1.45*1.91 |
| Double mast conventional guardrails | ADGTWY12-200-2 | 12 | 200 | 1.5*0.63 | 220 | 150 | 1.35*1.45*1.91 |
| Double mast conventional guardrails | ADGTWY14-200-2 | 14 | 150 | 1.5*0.63 | 220 | 150 | 1.35*1.45*1.91 |
| Double mast side guardrails | ADGTWY6-200-2 | 6 | 300 | 1.27*0.65 | 220 | 180 | 1.35*1.45*1.91 |
| Double mast side guardrails | ADGTWY8-200-2 | 8 | 300 | 1.27*0.65 | 220 | 180 | 1.35*1.45*1.91 |
| Double mast side guardrails | ADGTWY10-200-2 | 10 | 250 | 1.27*0.65 | 220 | 180 | 1.35*1.45*1.91 |
| Double mast side guardrails | ADGTWY12-200-2 | 12 | 200 | 1.27*0.65 | 220 | 180 | 1.35*1.45*1.91 |
| Double mast side guardrails | ADGTWY14-200-2 | 14 | 150 | 1.27*0.65 | 220 | 180 | 1.35*1.45*1.91 |
