Small aluminum alloy aerial work platform is made up with high strength and high quality Aluminum Alloy material. It has the advantages of beautiful appearance, small size, light weight, lifting balance, safe and reliable, its insurance platform wearing wire rope and safety protection device, and can operate, widely used in factories, hotels, restaurants, airports, stations, theaters, exhibition hall hall and other places, can pass through the general and lift, it is very convenient and safe to operate. Generally, this type of aerial work platform can be designed based on the conditions of working sites. It can improve working efficiency greatly.
Aluminum alloy aerial work platforms are essential tools for a wide range of industries, including construction, maintenance, and installation. These platforms provide a safe and efficient way to perform tasks at height.

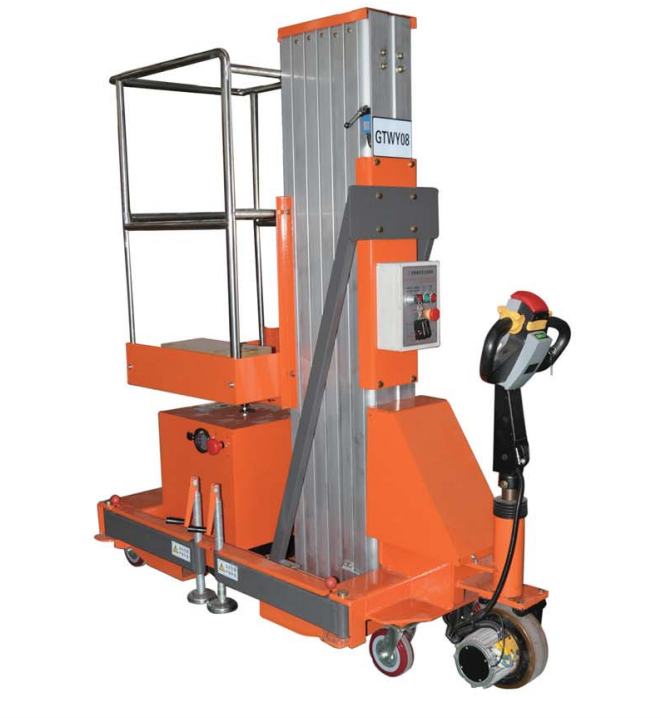

![X9H]}ZJ863J5$O9LJ($SNJV.png](/uploadfile/202208/c6dbd232243c8cf.png "X9H]}ZJ863J5$O9LJ($SNJV.png")
Product Features
1. The compact size, easily pass through standard doors and elevators
2. No trace 20 tires made of artificial high-elastic rubber, more environmentally friendly and quiet
3. The GRTPU towline cable for the upper control signal line improves the wear resistance
4. The internal transmission adopts imported oily material to achieve self-lubrication and maintenance-free
5. More stable imported rotary type inserted legs, wider force area.
Technical Parameter
Mast
|
Model
|
Platform height(m)
|
Platform operation height(m)
|
Load capacity(kg)
|
Platform size(m)
|
Supply voltage(v)
|
Power(kw)
|
Weight(kg)
|
Dimension(m)
|
| Single mast |
ADYD/AL4-100M1
|
4 |
5.7 |
100
|
600*600 |
AC220/50HZ
|
0.75 |
250 |
1280*800*1750 |
Single mast
|
ADYD/AL6-100M1
|
6 |
7.7 |
100
|
600*600 |
AC220/50HZ
|
0.75 |
280 |
1280*800*1900 |
Single mast
|
ADYD/AL8-100M1
|
8 |
9.7 |
100
|
600*600
|
AC220/50HZ
|
0.75 |
300 |
1280*800*1980
|
Single mast
|
ADYD/AL9-100M1
|
9 |
10.7 |
100
|
600*600
|
AC220/50HZ
|
1.1 |
320 |
1360* 850*2000
|
Single mast
|
ADYD/AL10-100M1
|
10 |
11.7 |
100 |
600*600
|
AC220/50HZ
|
1.1 |
340 |
1360*900*2100 |
Double mast
|
ADYD/AL4-200M2
|
4 |
5.7 |
200
|
1100*6000 |
AC220/50HZ
|
1.5 |
380 |
1300*900*1750 |
Double mast
|
ADYD/AL6-200M2
|
6 |
7.7 |
200
|
1100*6000 |
AC220/50HZ
|
1.5 |
420 |
1300*900*1900
|
Double mast
|
ADYD/AL8-200M2
|
8 |
9.7 |
200
|
1150*600 |
AC220/50HZ
|
1.5 |
550 |
1360*900*2000 |
Double mast
|
ADYD/AL10-200M2
|
10 |
11.7 |
200
|
1350*600 |
AC220/50HZ
|
1.5 |
600 |
1560*970*1900 |
Double mast
|
ADYD/AL12-200M2
|
12 |
13.7 |
200
|
1450*600 |
AC220/50HZ
|
1.5 |
700 |
1660*970*2000 |
Double mast
|
ADYD/AL14-200M2
|
14 |
15.7 |
200 |
1450*600 |
AC220/50HZ
|
1.5 |
800 |
1660*1100*2350 |
