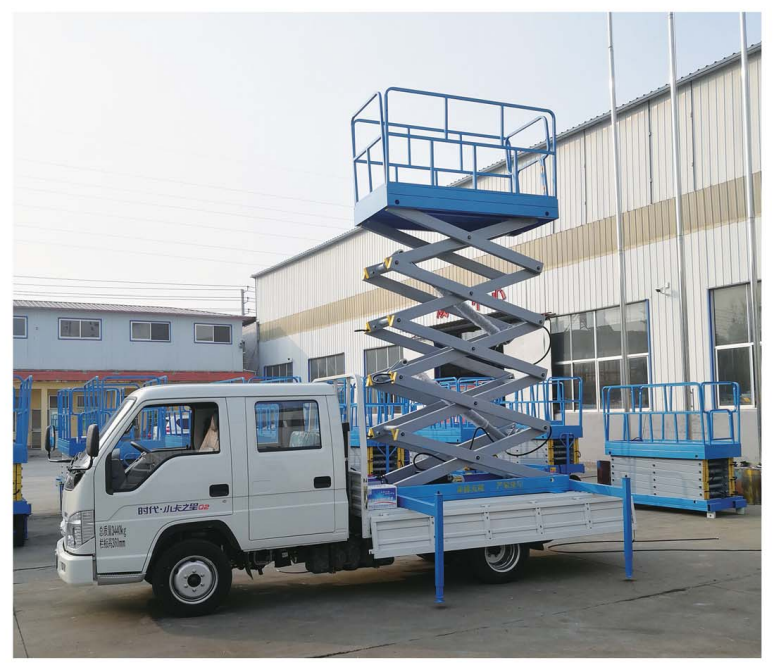

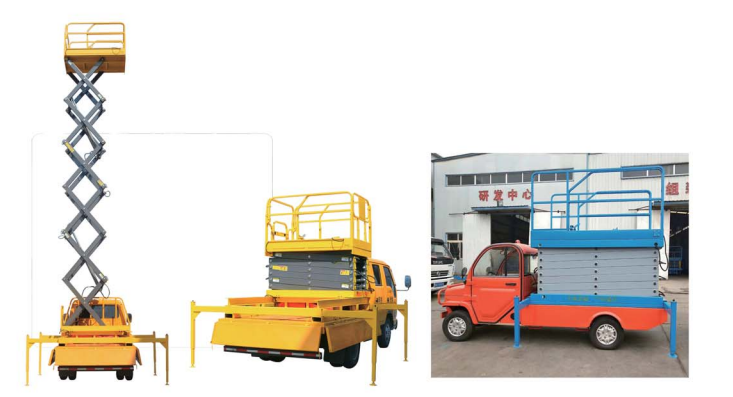

The vehicle-mounted version integrates this scissor lift system onto a mobile base, typically a truck or van chassis. It offers greater mobility compared to stationary platforms since it can be easily driven from one location to another. The platform usually includes safety features such as guardrails, safety interlocks, and emergency stop mechanisms to ensure worker safety while operating at heights.

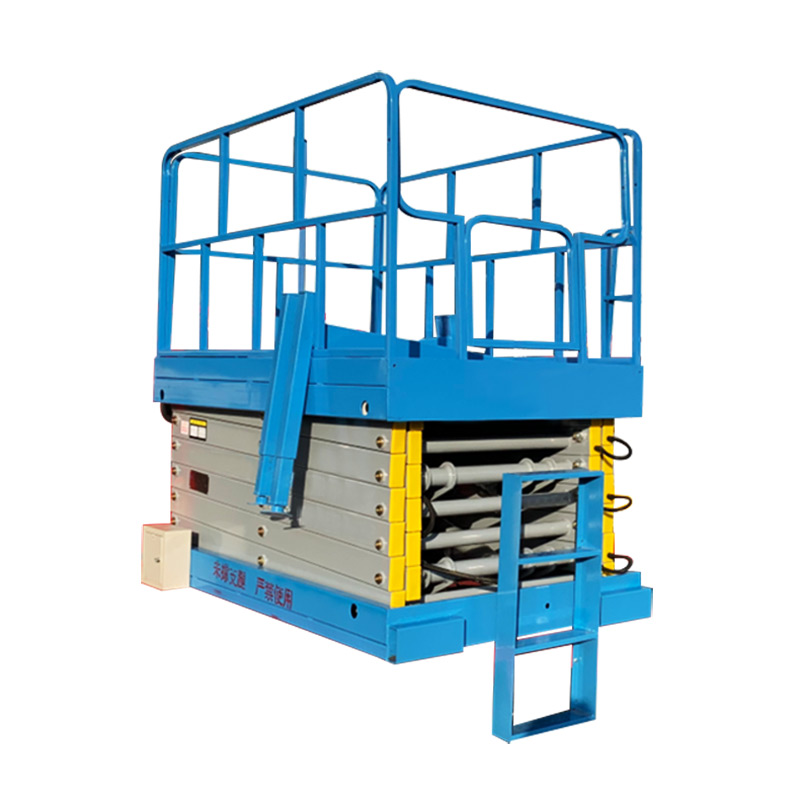

This type of aerial platform features a scissor lift mechanism which operates by the extension and contraction of crossed supports in a crisscross pattern, thereby lifting the platform vertically.
Lift car is featured fast movement speed,large operation range, lifting without external power, strong maneuverability. They have been widely used in municipal construction and maintenance, street lighting,highway facilities maintenance,engineering repair,landscape design and trim and other aerial-work industries.
Product Features

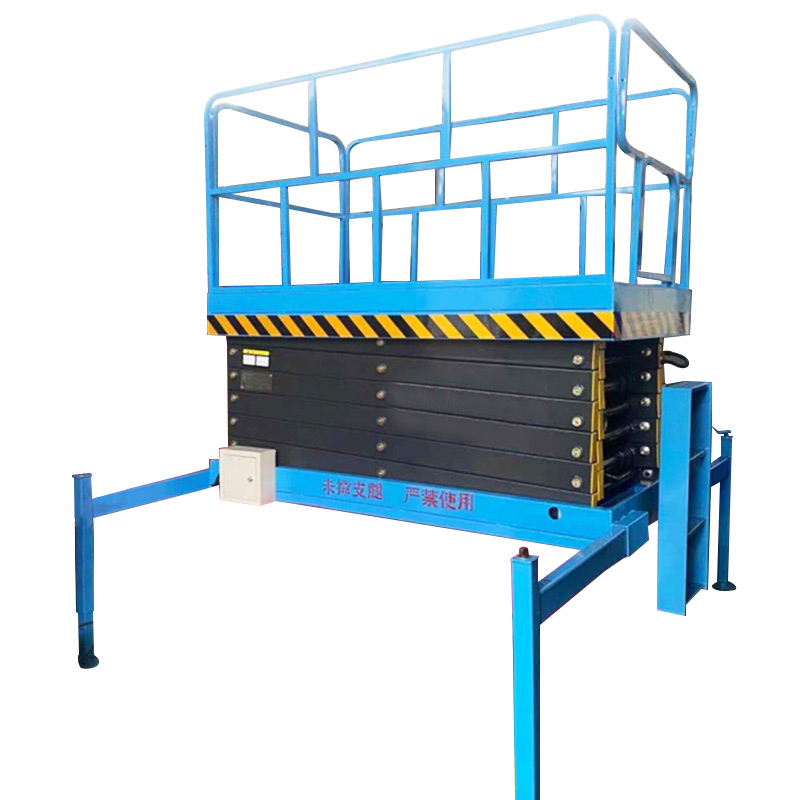

1. High-strength support legs, stable and not shaking
2. The tire has a large bearing capacity and is not easy to wear
3. Hydraulic cylinder with built-in explosion-proof valve
4. Hydraulic pump station power system
5. Shot blasting, sand blasting and rust removal; electrostatic powder spraying; the coating has excellent appearance quality, strong adhesion and mechanical strength, high color and brightness, and will not fade for many years.
Technical Parameter
Model
| Load(kg)
| Lifted height(m)
| Weight(kg)
| Guardrail(mm)
| Power |
ADGD/JC0.3-4C
| 300 | 4 | 800 | 1100 | 1.1KW/220V |
ADGD/JC0.3-6C
| 300
| 6 | 880 | 1100
| 1.1KW/220V |
ADGD/JC0.3-7C
| 300
| 7 | 970 | 1100
| 1.1KW/220V |
ADGD/JC0.3-8C
| 300
| 8 | 1050 | 1100
| 1.5KW/220V |
ADGD/JC0.3-9C
| 300
| 9 | 1165 | 1100
| 1.5KW/220V |
ADGD/JC0.3-10C
| 300
| 10 | 1360 | 1100
| 2.2KW/380 |
ADGD/JC0.3-11C
| 300
| 11 | 1400 | 1100
| 2.2KW/380V |
ADGD/JC0.3-12C
| 300
| 12 | 2260 | 1100
| 3KW/380V |
ADGD/JC0.3-14C
| 300
| 14 | 2400 | 1100
| 3KW/380V
|
ADGD/JC0.3-16C
| 300
| 16 | 3500 | 1100
| 3KW/380V
|
ADGD/JC0.3-18C
| 300
| 18 | 3900 | 1100
| 3KW/380V
|
ADGD/JC1.0-4C
| 1000 | 4 | 1250 | 1100
| 2.2KW/380V |
ADGD/JC1.0-6C
| 1000
| 6 | 1400 | 1100
| 2.2KW/380V |
ADGD/JC1.0-8C
| 1000
| 8 | 1585 | 1100
| 2.2KW/380V
|
ADGD/JC1.0-10C
| 1000
| 10 | 1700 | 1100
| 2.2KW/380V
|
ADGD/JC1.0-12C
| 1000
| 12 | 2560 | 1100
| 3KW/380V
|
ADGD/JC1.0-14C
| 1000
| 14 | 2765 | 1100
| 3KW/380V
|
ADGD/JC1.0-15C
| 1000
| 15 | 5000 | 1100
| 3KW/380V
|
ADGD/JC1.5-6C
| 1500 | 6 | 1780 | 1100
| 3KW/380V
|
ADGD/JC1.5-8C
| 1500
| 8 | 2070 | 1100
| 3KW/380V
|
ADGD/JC1.5-10C
| 1500
| 10 | 2250 | 1100
| 3KW/380V
|
ADGD/JC1.5-12C
| 1500
| 12 | 2900 | 1100
| 3KW/380V
|
ADGD/JC1.5-14C
| 1500
| 14 | 3400 | 1100
| 4KW/380V |
ADGD/JC2.0-6C
| 2000 | 6 | 1780 | 1100
| 3KW/380V
|
ADGD/JC2.0-8C
| 2000
| 8 | 2070 | 1100
| 3KW/380V
|
ADGD/JC2.0-10C
| 2000
| 10 | 2250 | 1100
| 3KW/380V |
ADGD/JC2.0-12C
| 2000
| 12 | 3200 | 1100
| 4KW/380V |
ADGD/JC2.0-14C
| 2000
| 14 | 3900 | 1100
| 4KW/380V |
ADGD/JC2.0-15C
| 2000
| 15 | 5600 | 1100
| 5.5KW/380V |
