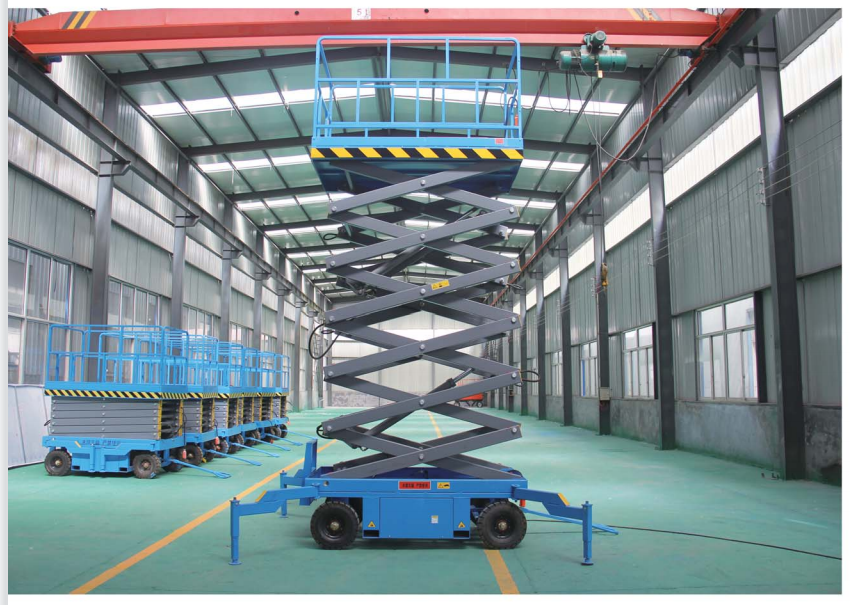

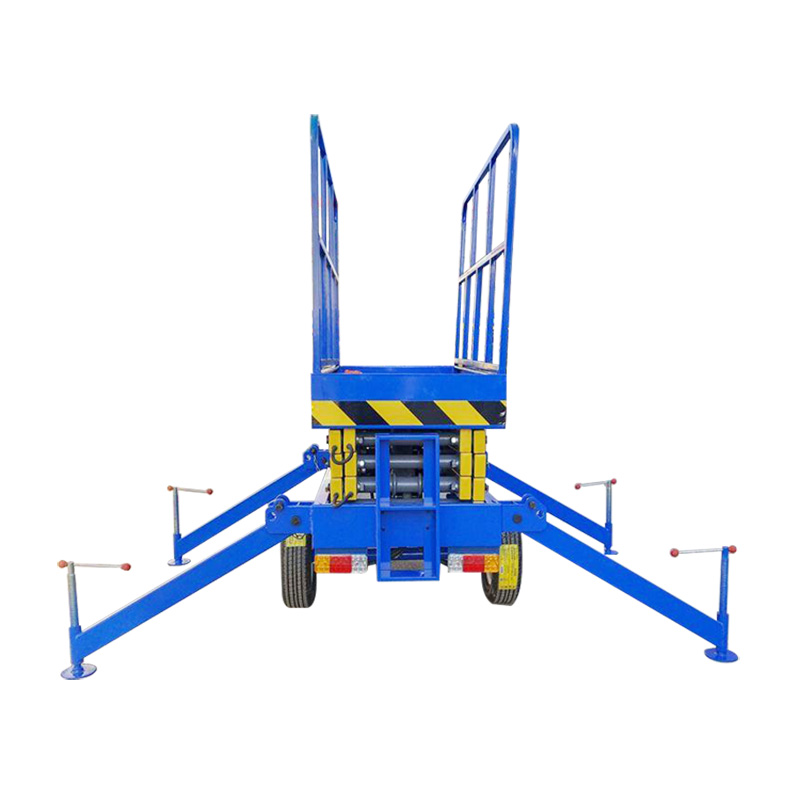

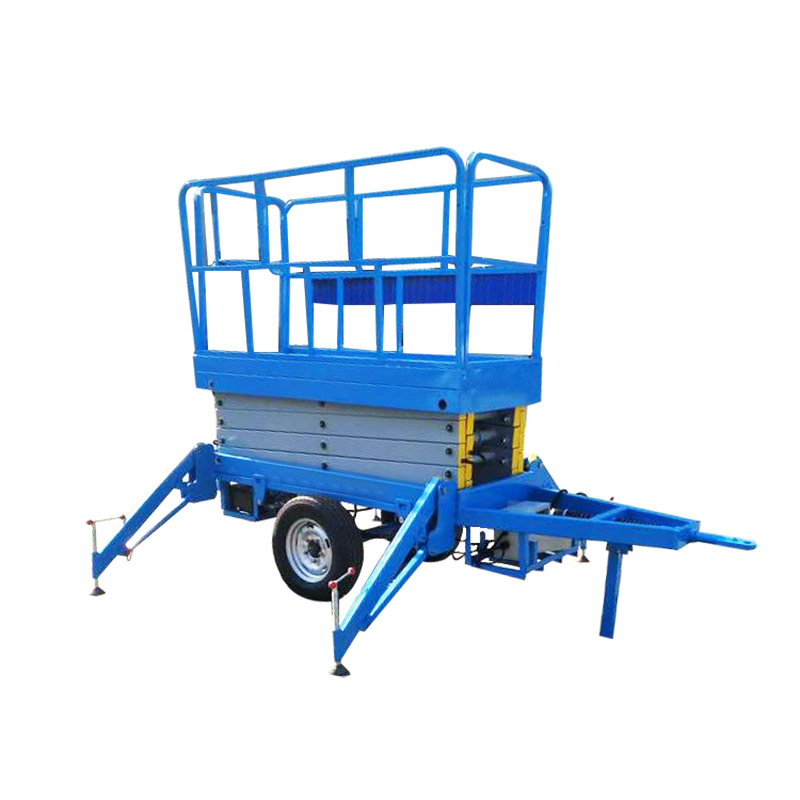

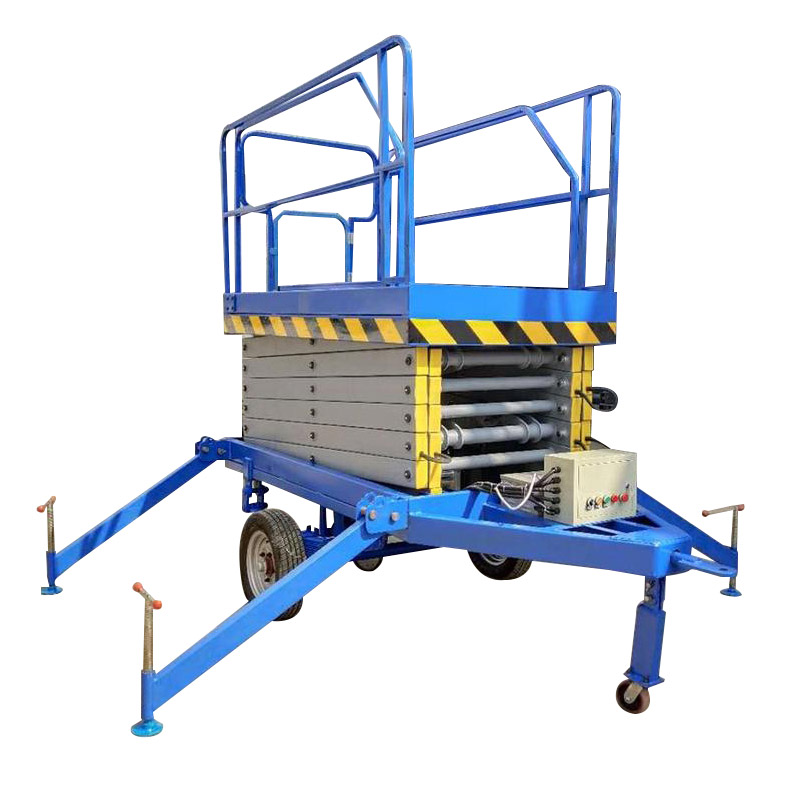

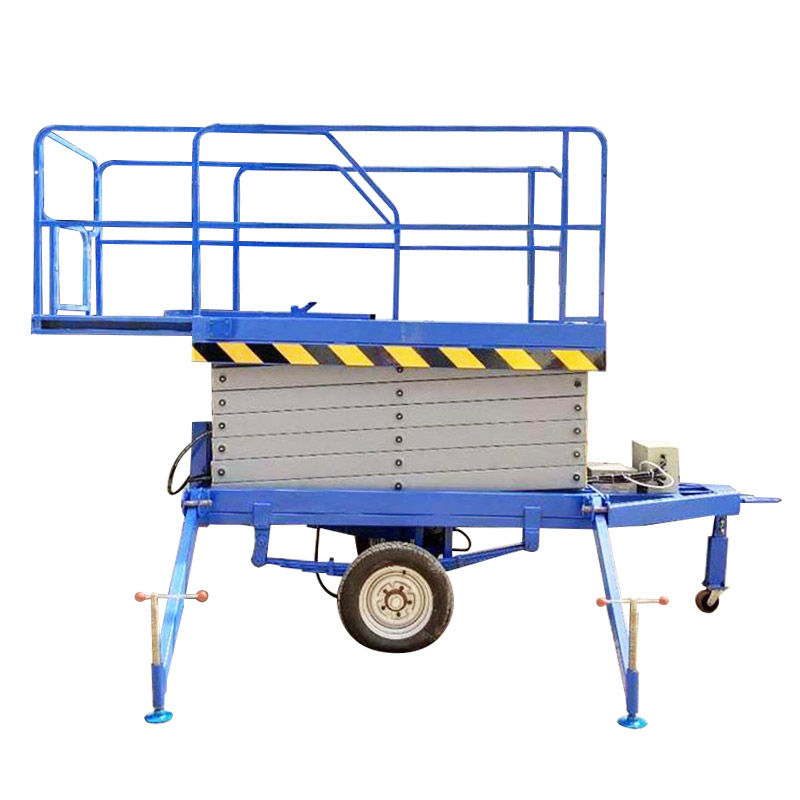

Introducing the cutting-edge Traction Aerial Working Platform, an innovative solution designed to revolutionize elevated work operations across various industries. Engineered for safety, efficiency, and versatility, this advanced system combines robust traction technology with precision aerial capabilities, providing professionals with unparalleled access to hard-to-reach areas while ensuring optimal performance and operator comfort.
This series of product has lifting height ranging from 4m to 18m, and loading weight from 300kg to 500kg, with lifting mode of manual operation,electric,battery and diesel oil,etc. Explosion-proof electric apparatus can be chosen for special places;remove control device platform can be installed according to the users' needs,which has advantages including easy to move,large surface and strong carrying capacity ,allowing simultaneous operation of several persons, and safety & reliability, so it is the optimal product for aerial lifting operation.
The traction aerial working platform is a highly adaptable mobile unit, expertly designed to navigate challenging terrain and tight spaces with ease. Its robust traction system, featuring 4 x 2 wheel configuration and electronically hydraulic control transmission, ensures smooth and precise maneuverability even on inclines or uneven surfaces. The platform's compact footprint and agile steering allow for seamless navigation through congested job sites, indoor facilities, or urban environments, minimizing disruption to surrounding areas.

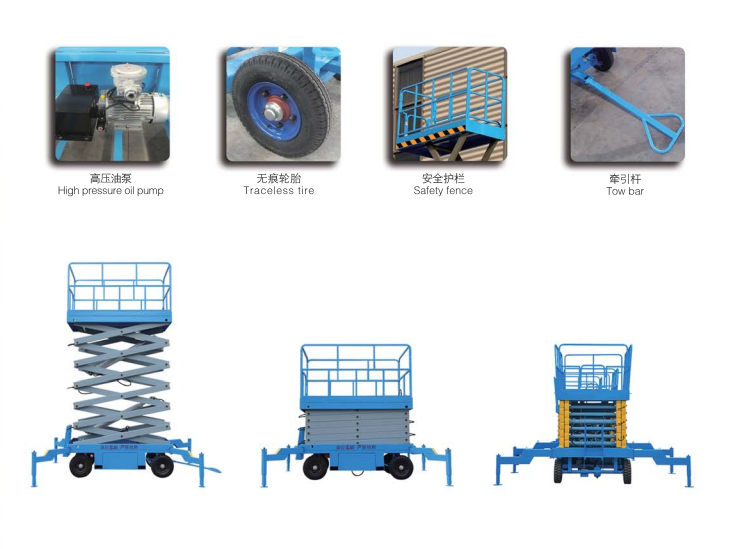

Product Features
1. High-strength support legs, stable and not shaking
2. The tire has a large bearing capacity and is not easy to wear
3. Hydraulic cylinder with built-in explosion-proof valve
4. Hydraulic pump station power system
5. Shot blasting, sand blasting and rust removal; electrostatic powder spraying; the coating has excellent appearance quality, strong adhesion and mechanical strength, high color and brightness, and will not fade for a long time.
Technical Parameter
Type
| Platform(mm)
| Load(kg)
| Lifted height(m)
| Dimension(mm)
| Weight(kg)
|
ADYD/QL0.5-4
| 2100x 830
| 500
| 4 | 2250x950x1200
| 880 |
ADYD/QL0.5-6
| 2100x 830
| 500
| 6
| 2250x950x1200
| 880
|
ADYD/QL0.5-7
| 2100x830
| 500
| 6.8
| 2250x950x1280
| 970
|
ADYD/QL0.5-8
| 2100x930
| 500
| 8
| 2250x1060x1380
| 1050
|
ADYD/QL0.5-9
| 2100x930
| 500
| 9
| 2250x1060x1500
| 1165
|
ADYD/QL0.5-10
| 2100x1230
| 500
| 10
| 2250x1350x1530
| 1360
|
ADYD/QL0.5-11
| 2100x1230
| 300
| 11
| 2250x1350x1650
| 1400
|
ADYD/QL0.5-12
| 2550x1530
| 500
| 12
| 2796x1670x1750
| 2260
|
ADYD/QL0.5-14
| 2812x1530
| 500
| 14
| 3067x1730x1810
| 2486
|
ADYD/QL0.3-16
| 2812x1600
| 300
| 16
| 3067x1810x2080
| 3063
|
ADYD/QL0.3-18
| 3070x1600
| 300
| 18
| 3321x1810x2080
| 3900
|
