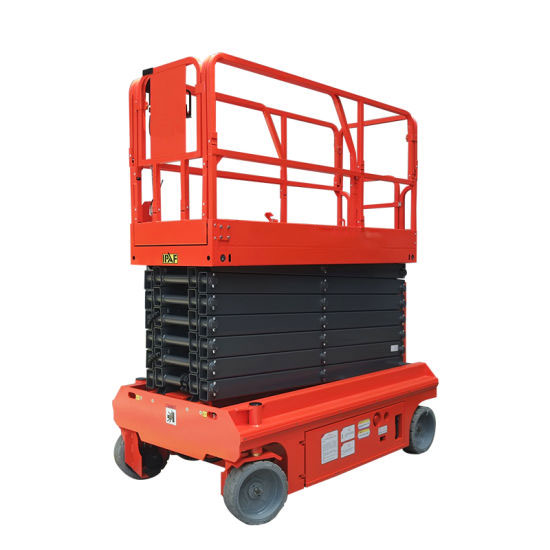

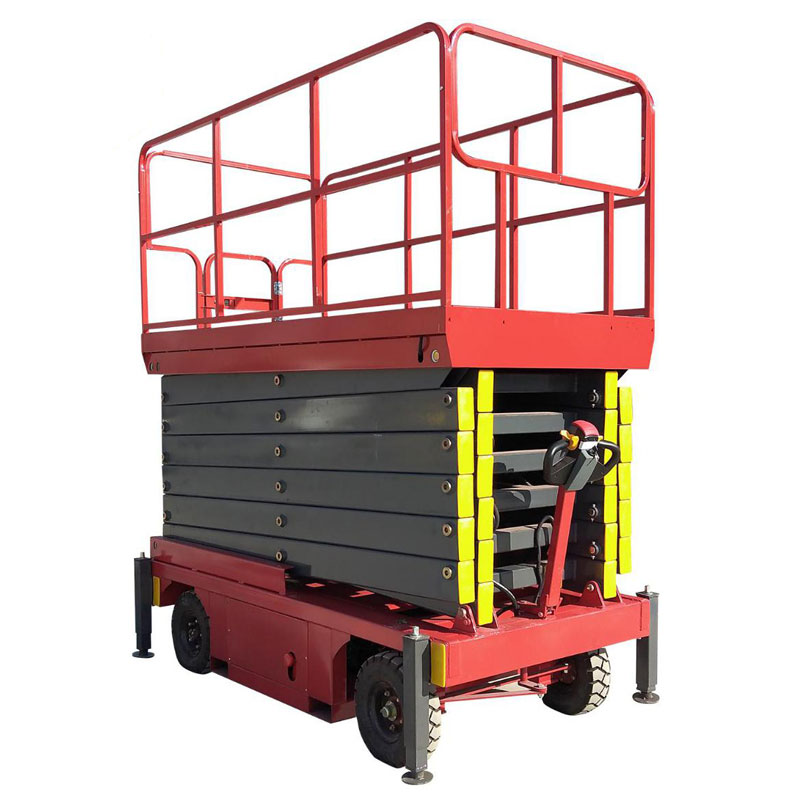

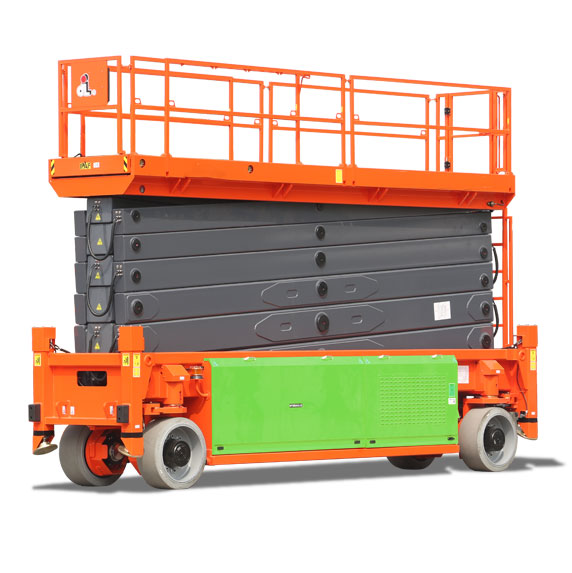

Auxiliary walking aerial work platform

Product Specifications : It is divided into 4, 6, 8, 10, 12, 14, 16, 18 meters according to the lifting height, and the series products have a load of 300 and 500 kilograms. Other loads need to be customized separately.

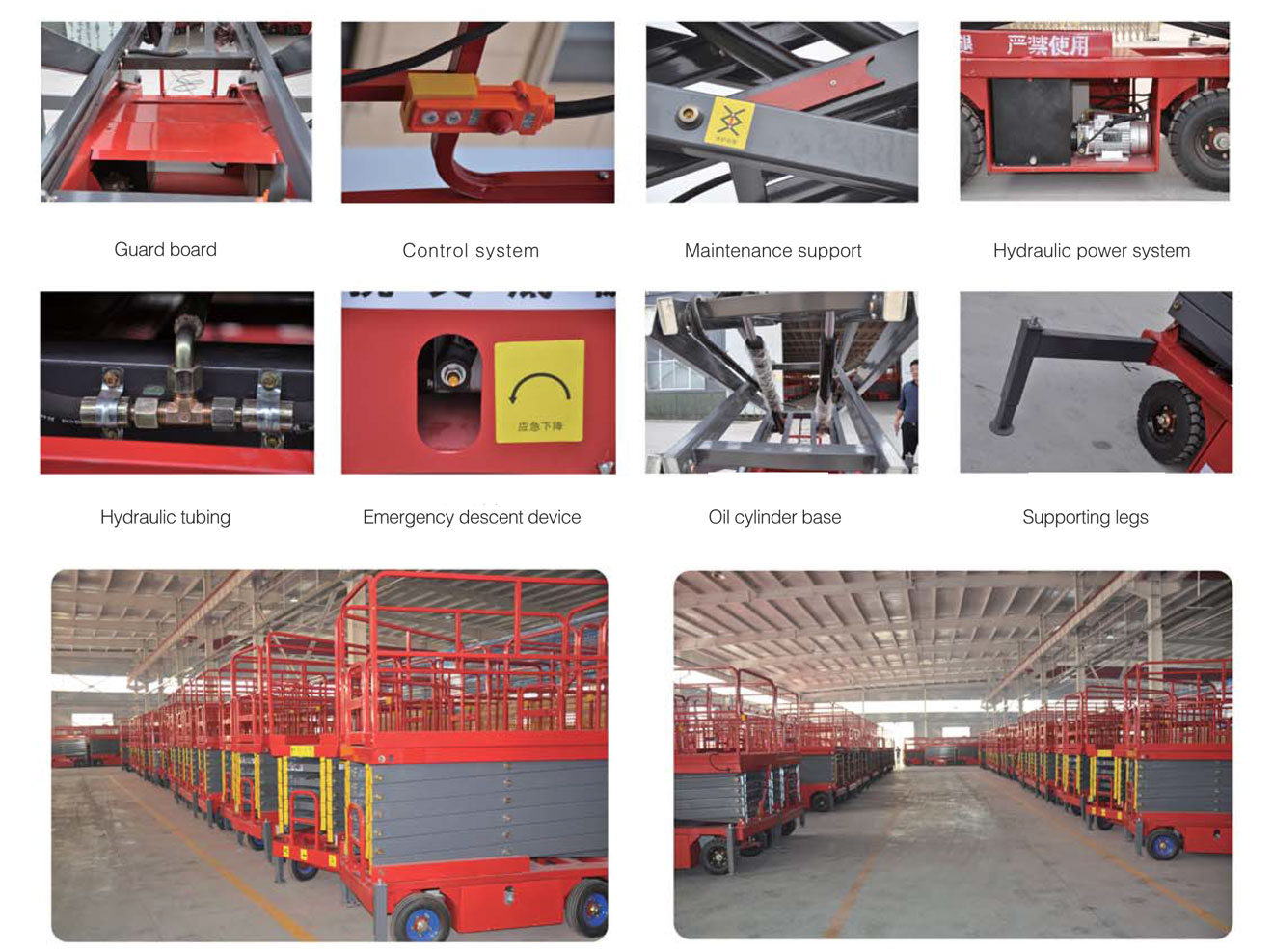

Product Advantages : high-strength manganese steel structure, convenient four-wheel movement , the wide work surface, and the high bearing capacity; multiple people working at the same time, making aerial work safer and more efficient

Applicable Places : Construction sites, factories, warehouses, grain depots, stations, hotels, airports, docks, gas stations, sports factories, overhead pipelines, high-altitude equipment installation, maintenance, cleaning, etc. It is also used for lifting equipment maintenance, wild power facility maintenance, steel frame structure workshop maintenance, etc

Send Inquiry Now

Product Details

An Auxiliary Walking Aerial Work Platform, also referred to as a push-around or manually propelled aerial platform, is a specialized type of mobile elevating work platform specifically designed for low-level access requirements. This equipment is often used in indoor or outdoor environments where there's a need for light-duty elevated work spaces.

This series of product has lifting height ranging from 4m to 18m, and loading weight from 300kg to 500kg,with lifting mode of manual operation, electric, battery and diesel oil, etc. Explosion-proof electric apparatus can be chosen for special places;remove control device platform can be installed according to the users' needs, which has advantages including easy to move, large surface and strong carrying capacity, allowing simultaneous operation of several persons,and safety & reliability, so it is the optimal product for aerial lifting operation.

Unlike motorized aerial platforms, auxiliary walking models are propelled manually. They are lightweight and compact, allowing operators to push them into position effortlessly. The control panel, usually located within easy reach on the platform or on the base unit, enables the operator to manage the lifting and lowering process.

Typically, this could be a simple scissor lift mechanism that uses a manual or electrically powered hydraulic system to raise and lower the working platform. The mechanism is designed to be user-friendly and safe, ensuring a steady ascent and descent.

Technical Parameter

Type	Platform（mm）	Net elevation（m）	load（kg）	Self weight（kg）	Overall dimension(mm)
ADYD/QX0.5-4	2010x 930	4	500	850	2016x1100x 1100
ADYD/QX0.5-6	2010x 930	6	500	950	2016x 1100x 1295
ADYD/QX0.5-7	2010x 930	6.8	500	95	2016x 1100x 1295
ADYD/QX0.5-8	2010x 930	8	500	1070	2016x 1100x 1415
ADYD/QX0.5-9	2010x 930	9	500	1170	2016x 1100x 1535
ADYD/QX0.5-10	2010x 1130	10	500	1360	2016x 1290x 1540
ADYD/QX0.5-11	2010x 1130	11	300	1480	2016x 1290x 1660
ADYD/QX0.5-12	2462 x 1210	12	500	1950	2465 x 1360x 1780
ADYD/QX0.5-14	2845x 1420	14	500	2580	2845x 1620x 1895
ADYD/QX0.3-16	2845x 1420	16	300	3780	2845x 1620x 2055
ADYD/QX0.3-18	3700x 1628	18	300	3900	3700x 1628 x 1950

Overall, the Auxiliary Walking Aerial Work Platform is a cost-effective and practical solution for low-height access needs, offering a flexible, safe, and efficient means to complete tasks at elevated levels in confined spaces or areas where heavy machinery cannot easily access.
