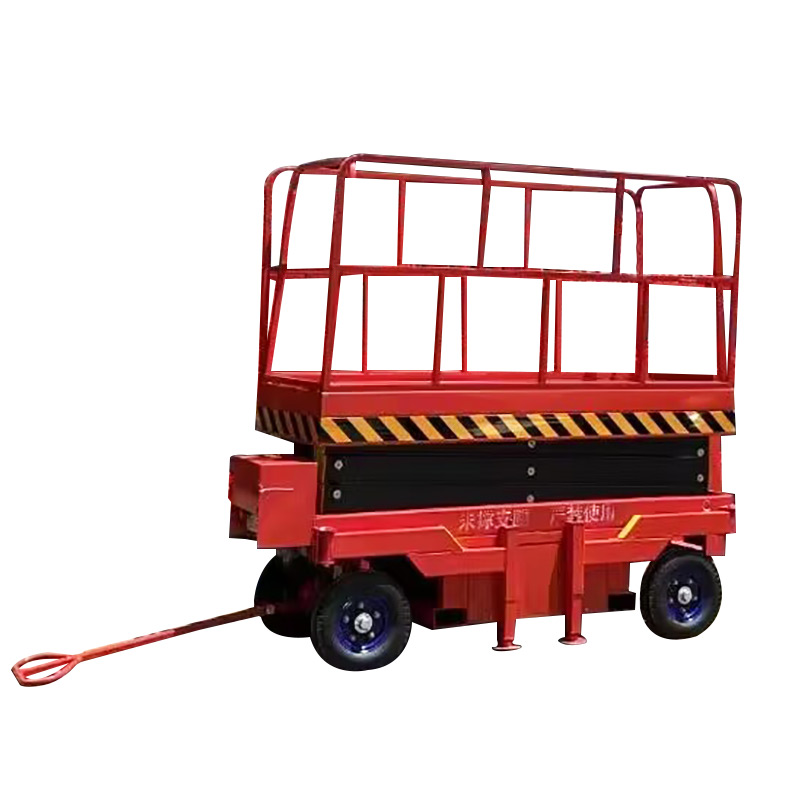

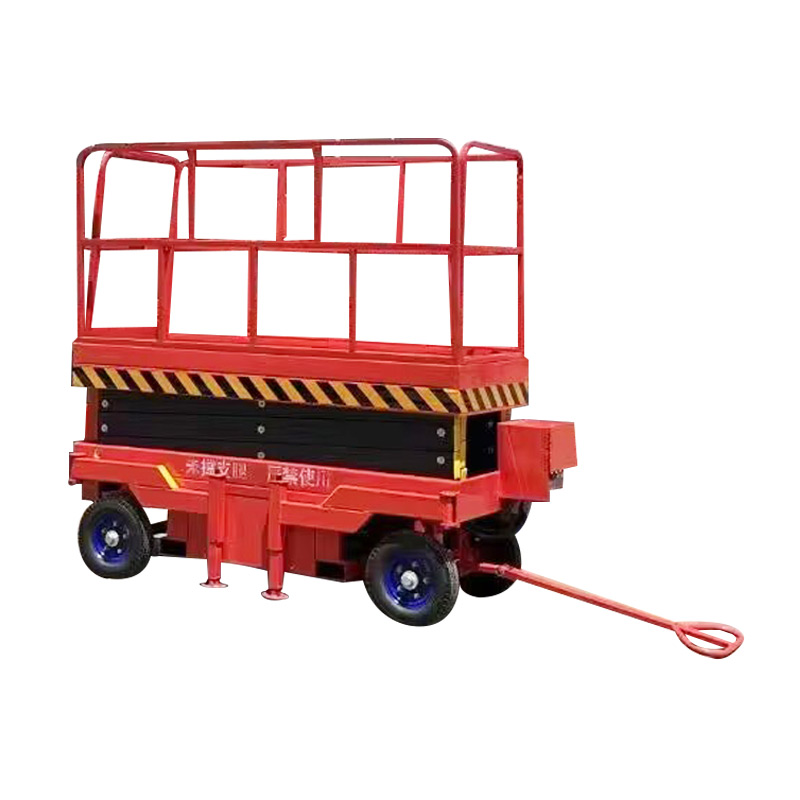

4m 6m 8m 16m Mobile Scissor Lift Platform Battery Trailer Electric Scissor 10m Table Lift

Type : Mobile Scissor Lift

Load capacity : 500kg

Lifting Height : 10m

Overall dimension(mm) : 2016x 1290x 1540

Gradeability : 20%

Power source : move by tow,raise and down by AC/DC Power

Color : Red or according to client's requirements

Send Inquiry Now

4m 6m 8m 16m Mobile Scissor Lift Platform Battery Trailer Electric Scissor 10m Table Lift

Product Details

Mobile Scissor Lift is moved by man manually or towed by tractor or car. And lifts are driven by different power, such as AC, DC, AC and DC, diesel. This type of lifting platform has good stability and strong capacity to meet different working conditions.

Product Feature

1. Strong Structure

2. Emergency Decline Valve

3. Heavy Duty Capacity

4. Four Support Legs

5. Different Power for Option

6. Dis-mountable Guardrails

7. Cylinder Check Valve

8. Self-lock gate on platform

Product Advantage

1. One man can operate on ground or on platform.

2. Solid steel platform with anti slip surface.

3. The variable speed motor to extend the life span of the battery and motor.

4. New designed scissor lift adopt Q345( manganese steel ),the reliability and safety can be ensured.

Technical Parameter for Mobile Scissor Lift

Type	Platform（mm）	Net elevation（m）	load（kg）	Self weight（kg）	Overall dimension(mm)
ADYD/QX0.5-4	2010x 930	4	500	850	2016x1100x 1100
ADYD/QX0.5-6	2010x 930	6	500	950	2016x 1100x 1295
ADYD/QX0.5-7	2010x 930	6.8	500	950	2016x 1100x 1295
ADYD/QX0.5-8	2010x 930	8	500	1070	2016x 1100x 1415
ADYD/QX0.5-9	2010x 930	9	500	1170	2016x 1100x 1535
ADYD/QX0.5-10	2010x 1130	10	500	1360	2016x 1290x 1540
ADYD/QX0.5-11	2010x 1130	11	300	1480	2016x 1290x 1660
ADYD/QX0.5-12	2462 x 1210	12	500	1950	2465 x 1360x 1780
ADYD/QX0.5-14	2845x 1420	14	500	2580	2845x 1620x 1895
ADYD/QX0.3-16	2845x 1420	16	300	3780	2845x 1620x 2055
ADYD/QX0.3-18	3700x 1628	18	300	3900	3700x 1628 x 1950
