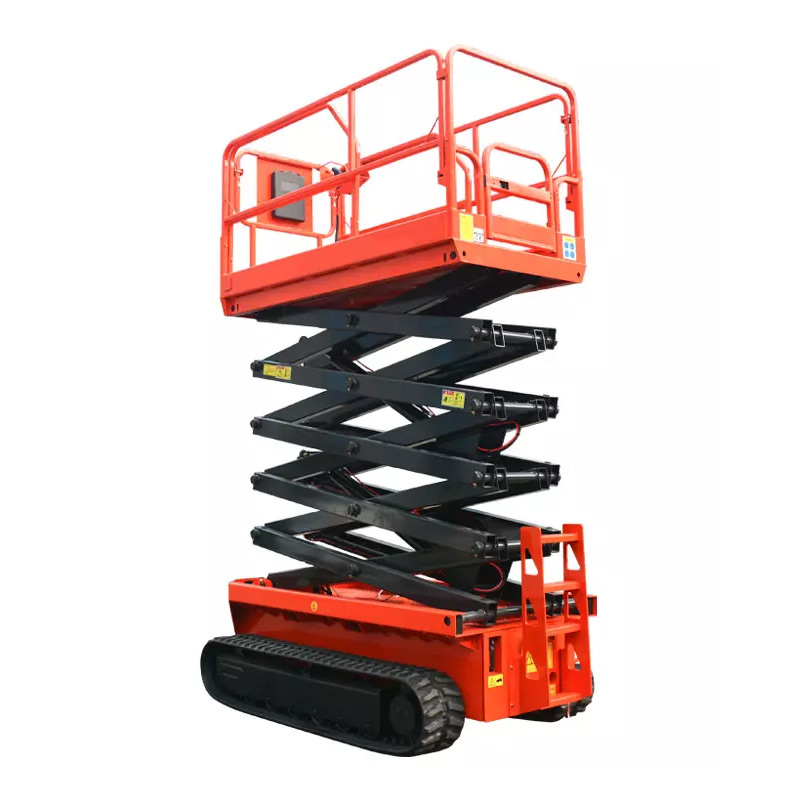

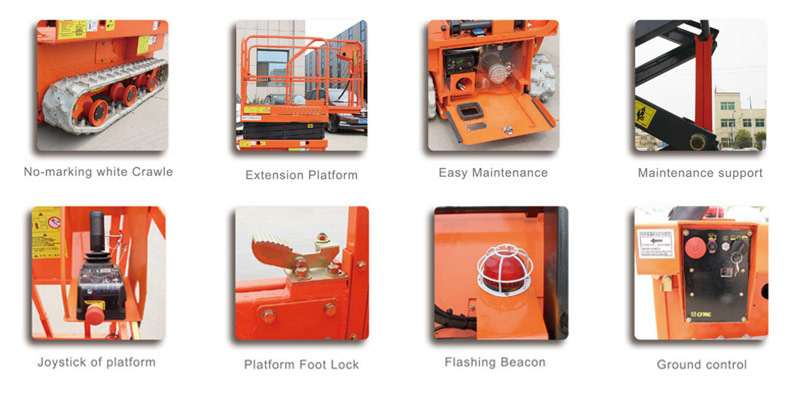

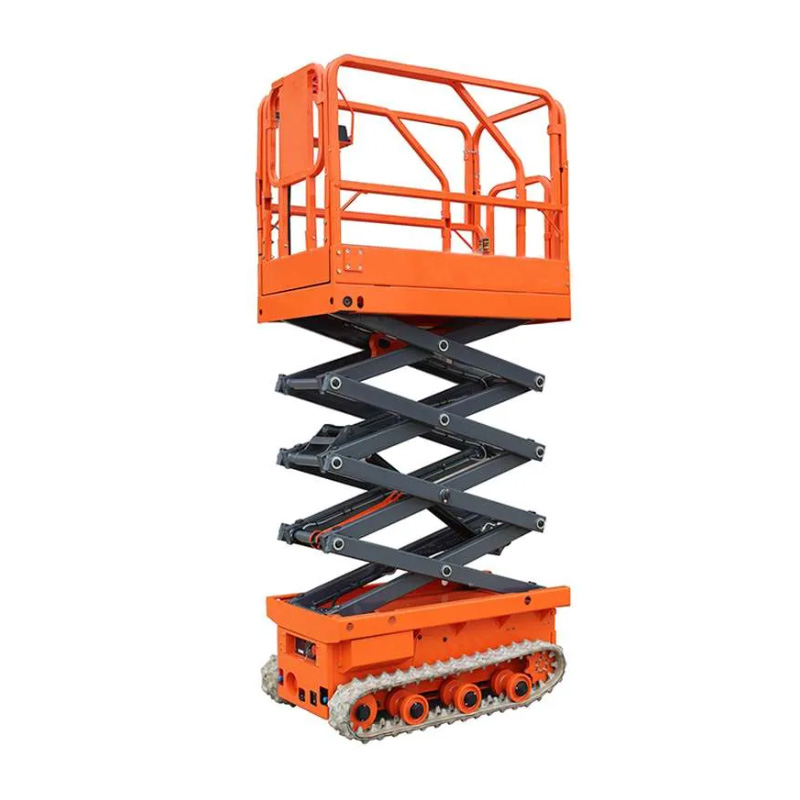

Cross country crawler aerial working platform doesn't need any outriggers, one man operates on the working platform.Moving forward, turning around, and lifting up are easily operated.Sort chargeable time and long dural time of the battery.Easily moved, spacious working platforms, smooth working condition, and high working efficiency. The pedal extension platform can be quickly spread to the operating point. The foldable fence reduces the volume of the whole machine.25% climbing ability, can climb up the slope smoothly.Drawer-type chassis is easy to maintain.The fault code is automatically displayed for easy maintenance.The chargeable battery provides the power to move and steer around.The chargeable battery provides the power to raise up the lift platforms.


Product Features
●The surface of our Cross country crawler aerial working platform is shot blasting. It is very smooth and beautiful. The painting will be very anti-corrosion.
●Cross country crawler aerial working platform structure is very compact so as to guarantee the structure is strong enough.
●We adopt an automatic production line so that the quality is highly guaranteed.
●High strength steel structures, smoothly lift up and drop down, easily operated very few faults.
●Power sources: local power available at the working sites.
Technical Parameter
Model | Overal dimension (engh, wicth and heigh)mm | Table length and width mm | Platform height m | Table extension mm | Load kg | Self weight kg |
ADYD/LD4-230 | 1500x 1097x1700 | 1300x700 | 4 | 600 | 230 | 230 |
ADYD/LD6-300 | 1975x 1210x2070 | 1669x745 | 6 | 900 | 300 | 300 |
ADYD/LD8-300 | 2518x 1390x2420 | 2271x1110 | 8 | 900 | 300 | 300 |
ADYD/LD10-300 | 2515x 1390x2041 | 2271x1110 | 10 | 900 | 300 | 300 |
ADYD/LD12-300 | 2855x 1390x2172 | 2271x1110 | 12 | 900 | 300 | 300 |
