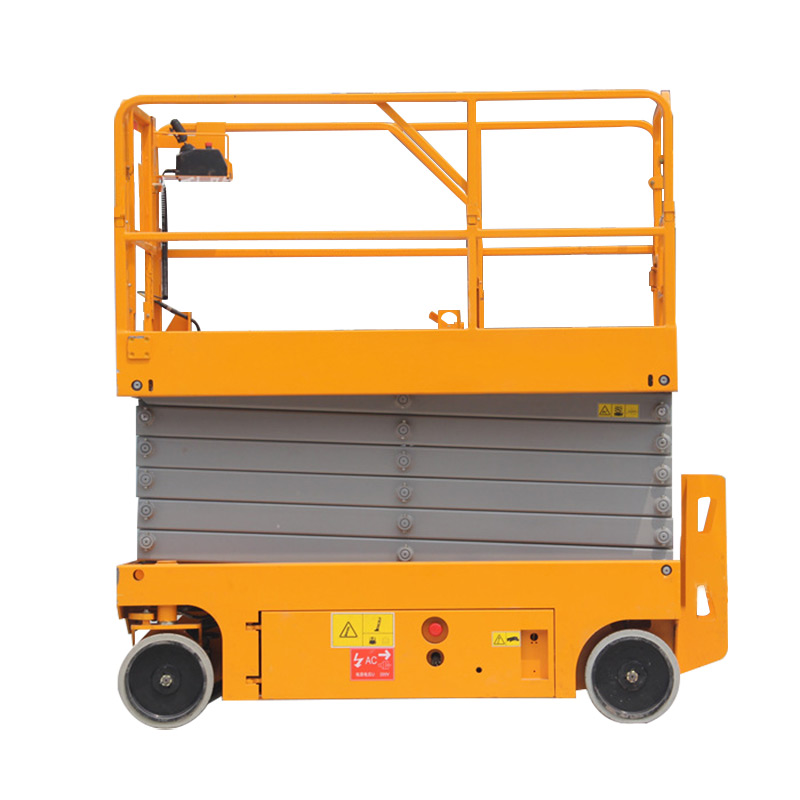

Battery charger electric fully automatic scissor lifts aerial work platform ADYD/ZXZ8-500

Model : ADYD/ZXZ8-500

Working height max. : 8m

Platform height max. : 6m

Safe working load : 500kg

Working platform size : 2.2*1.1*1.13m

Driving motor : 24V/4.5KW

Overall dimension(guard plate unfolded) : 2.475*1.15*2.15m

Send Inquiry Now

Battery charger electric fully automatic scissor lifts aerial work platform ADYD/ZXZ8-500
Product Details

Here is the brief introduction of our fully automatic walking aerial working platform. It is one of the aerial work platforms which can automatically move(upward and downward, forward and backward) and turn, ideal for long-time aerial moving operations. No extra supporting leg is needed. Therefore, this lifting platform can be quite convenient and efficient while performing task mission. And it is also equipped with the high quality safety device to make sure the operation process go well.


Self-propelled scissors lift Has the function of automatic walking machine, integrated design, built- in battery power,meet in different working conditions, no external power supply, no external power traction can lift freely, and the equipment running and steering is also just a person can be completed. The operator only needs to master the control handle to the equipment before the complete equipment forward and backward, steering, fast, slow walk and equal action. Self scissors type lifting platform is mobile and flexible, convenient operation, labor saving, make high-altitude operations more efficient and convenient, is the ideal equipment for high-altitude operations, the safety production of the modern enterprise.

Features

1. Self propelled Scissor Lifts only one man can operate on the working platform, no need any support legs

2. Moving forward,turning around and lifting up are easily operated
3. Short chargeable time and long durable time of the battery
4. Easily moved, spacious working platforms, smooth working condition and high working efficiency



Moving method: The chargeable battery provides the power to move and steer around

Lifting Power:The chargeable battery provides the power to raise up the lift platforms

Working heights range from 4m, 6m, 8m, 9m,10m,12m,14m


Product Details
ModelADYD/ZXZ8-500ADYD/ZXZ10-450ADYD/ZXZ12-320ADYD/ZXZ14-320ADYD/ZXZ16-227
Working Height Maxdmum8.00m10.00m12.00m13.8m15.7m
Plttorm Height Maximum6.00m8.00m10.00m11.8m13.7m
Safe working load500kg450kg320kg320kg227kg
Extended plttorm safe working load113kg113kg113kg113kg113kg
Working patom size(L*w*h)2.2x1.1x1.13m2.26x1.13x1.13m2.26x1.13x1.13m2.26x1.12x1.13m2.64x1.12x1.13m
[Overall size]2.475x1.15x2.15m2.475x1.15x2.28m2.475x1.15x2.41m2.475x1.19x2.54m2.8x1.39x2.59m
[Overall size]2.475x1.15x1.711m2.475x1.15x 1.85m2.475x1.15x1.974m2.475x1.15x2.105m2.8x1.39x2.096m
Length exenion deck0.9m0.9m0.9m0.9m0.9m
Ground clearance-center0.1/0.02m0.1/0.02m0.1/0.02m0.1/0.02m0.1/0.02m
Wheelbase1.89m1.89m1.89m1.89m2.26m
Turning radius (inner / outer wheel)0.15/2.3m0.15/2.3m0.15/2.3m0.15/2.3m0.15/2.85m
Lifting / driving motor24V/4.5kw24V/4.5kw 24V/4.5kw24V/4.5kW24V/4.5kW
Liting speed3-5m/min3-5m/min3-5m/min3-5m/min3-5m/min
The machine speed (folded state)4km/h4km/h4km/h4km/h3.5km/h
Machine travel speed (liting state)0.8km/h0.8km/h0.8km/h0.8km/h0.8km/h
Battery4x6V/225ah4x6V/225ah4x6V/240ah4x12V/300ah4x12V/300ah
Charger24V/30A24V/30A24V/30A24V/30A24V/30A
Max Climb Capability25%25%25%25%25%
Maximum allowable working angle1.5°/3°1.5°/3°1.5°/3°1.5°/3°1.5°/3°
TyreΦ381x127mmΦ381x127mmΦ381x127mmΦ381x127mmΦ381x127mm
Weight2060kg2190kg2430kg2900kg3400kg
