Type : scissor type lifting platforms
Max platform height : 4-18m
Load capacity : 300kg.500kg
Platform size : as models
Material : high strength manganese steel

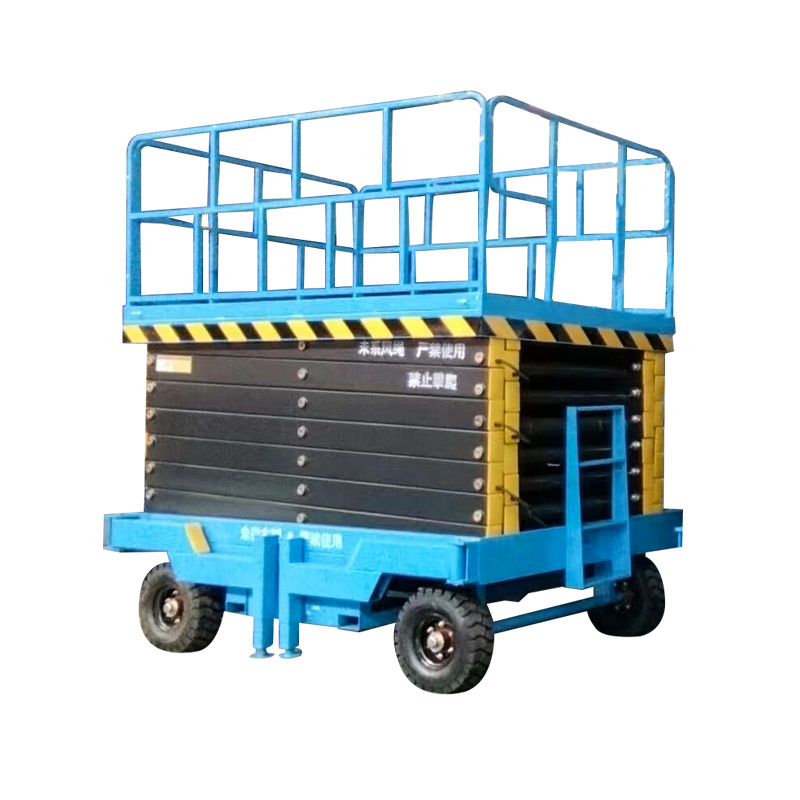

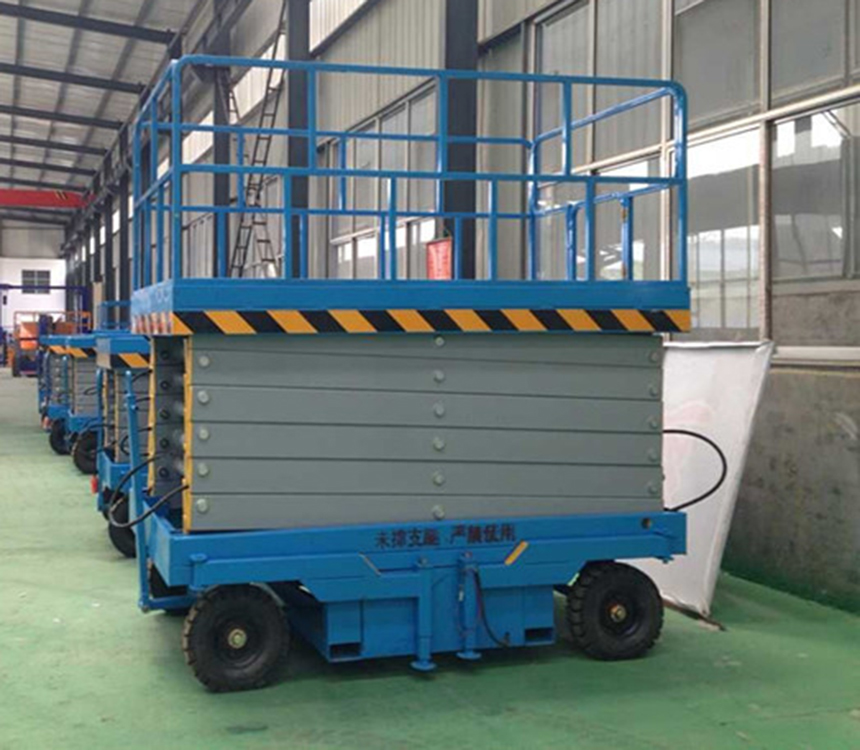

The series scissor lift platform is new design mobile scissor lift, lifting height ranging from 4m to 18m,and loading weight from 300kg to 1000kg,with lifting mode of manually operating.
Product Features
1.Strong Structure
2.Emergency Decline Valve
3.Heavy Duty Capacity
4.Four Support Legs
5. Different Power for Option
6. Dismountable Guardrails
7. Cylinder Check Valve
8.Self-lock gate on platform
Type | Platform（mm） | Net elevation（m） | load（kg） | Self weight（kg） | Overall dimension(mm) |
| ADYD/QX0.5-4 | 2010x 930 | 4 | 500 | 850 | 2016x1100x 1100 |
| ADYD/QX0.5-6 | 2010x 930 | 6 | 500 | 950 | 2016x 1100x 1295 |
| ADYD/QX0.5-7 | 2010x 930 | 6.8 | 500 | 95 | 2016x 1100x 1295 |
| ADYD/QX0.5-8 | 2010x 930 | 8 | 500 | 1070 | 2016x 1100x 1415 |
| ADYD/QX0.5-9 | 2010x 930 | 9 | 500 | 1170 | 2016x 1100x 1535 |
| ADYD/QX0.5-10 | 2010x 1130 | 10 | 500 | 1360 | 2016x 1290x 1540 |
| ADYD/QX0.5-11 | 2010x 1130 | 11 | 300 | 1480 | 2016x 1290x 1660 |
| ADYD/QX0.5-12 | 2462 x 1210 | 12 | 500 | 1950 | 2465 x 1360x 1780 |
| ADYD/QX0.5-14 | 2845x 1420 | 14 | 500 | 2580 | 2845x 1620x 1895 |
| ADYD/QX0.3-16 | 2845x 1420 | 16 | 300 | 3780 | 2845x 1620x 2055 |
| ADYD/QX0.3-18 | 3700x 1628 | 18 | 300 | 3900 | 3700x 1628 x 1950 |
