Electric Latest Design 6m-14m Hydraulic Lifting Equipment Mobile Scissor Lift

Product name : Mobile Scissor Lift

Model : GTJZ-14A

Load capacity : 228kg

Lifting height : 14m

Overall size : 2840mm*1400mm*2600mm

Voltage : 380V 50HZ 3 phase or 220/240/400V etc

Drive mode : Hydraulic drive

Send Inquiry Now

Electric Latest Design 6m-14m Hydraulic Lifting Equipment Mobile Scissor Lift

Product Details

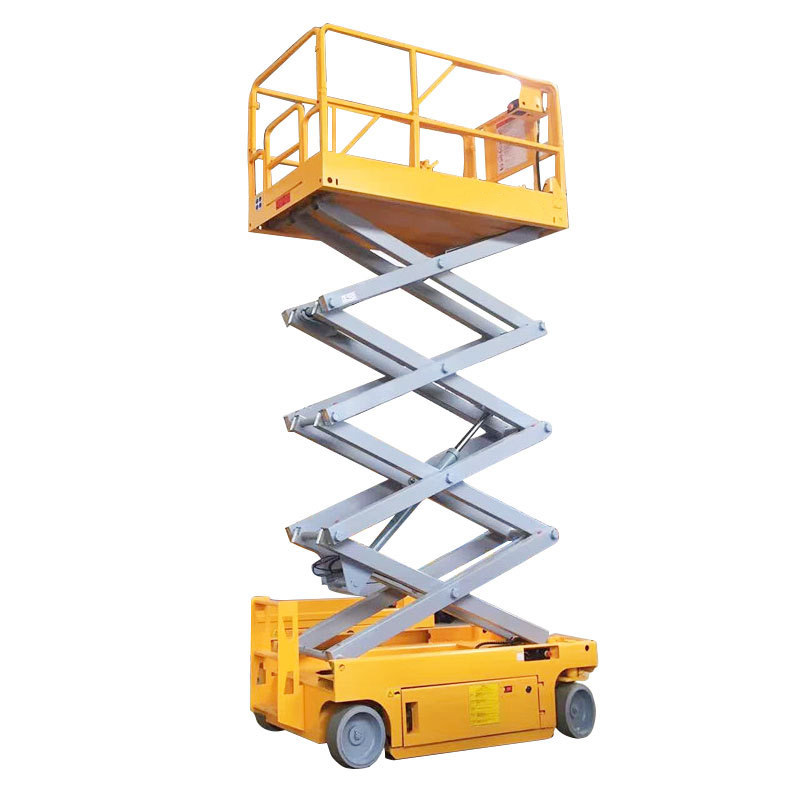

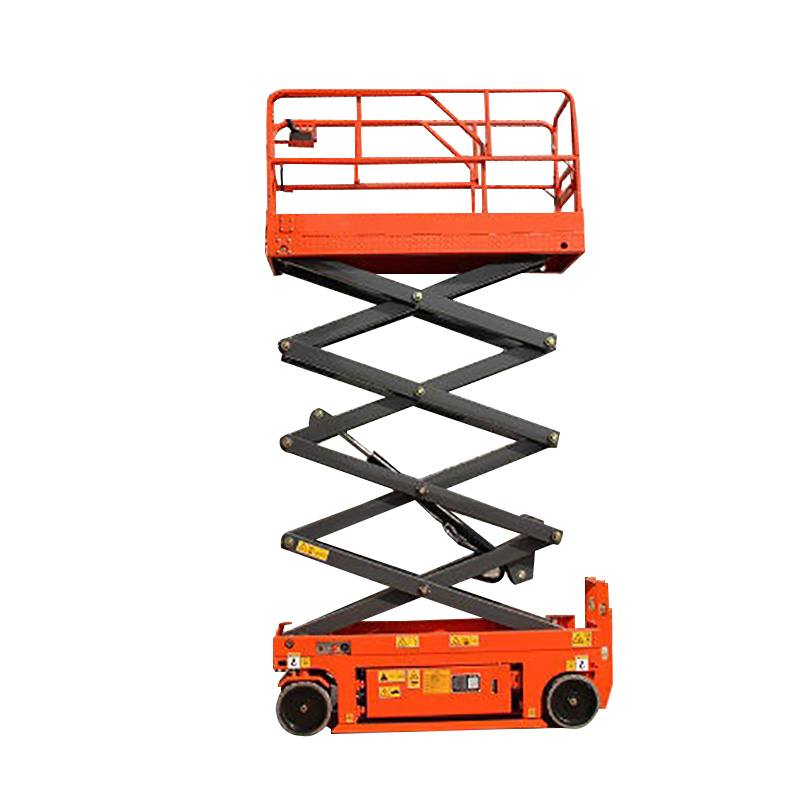

Mobile Scissor Lift is famous for its small compact body size,simple structure and very low failure rate. Its all by battery power. Operator can control lifting, moving, turning and all movement on the platform through the control system.

Configuration

1) Electric Motor for Travel

2) Electric Control System

3) Premium Hydraulic Pump Station

4) Durable Battery

5) Intelligent Battery Charger

6) Ergonomic Integrated Handle

7) High Strength Hydraulic Cylinder

Feature

1. Self-Drive System

2. Extention Deck

3. Non-Marking Tyres (Free from Dirt when Travelling on Floor)

4. Power Source 24V Four 6V AH Battery

5. Compact, Fit through Doors and Aisles

6. 10 to 15 Degree Slope Climing Ability

Technical Parameter for Mobile Scissor Lift

Model	Table size ( M)	Load capacity	Overall size (m)	Platform height	Overall weight(kg)
GTJZ-6A	*2.260.81**	380kg	*2.480.812.18*	6m	1880
GTJZ-6A	*2.261.13**	550kg	*2.4751.152.158*	6m	2060
GTJZ-8A	*2.260.81**	230kg	*2.480.851.85*	8m	2030
GTJZ-8A	*2.261.13**	450kg	*2.481.191.82*	8m	2190
GTJZ-10A	*2.261.13**	320kg	*2.4951.1871.92*	10m	2500
GTJZ-12A	*2.261.13**	320kg	*2.4751.152.542*	12m	2960
GTJZ-14A	*2.641.13**	227kg	*2.841.402.60*	14m	3390
