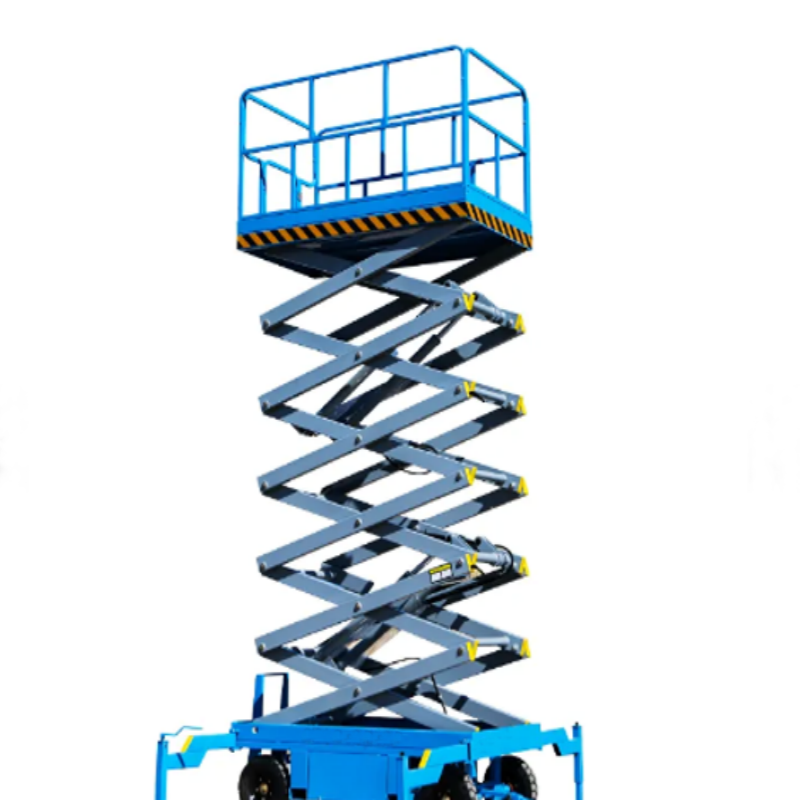

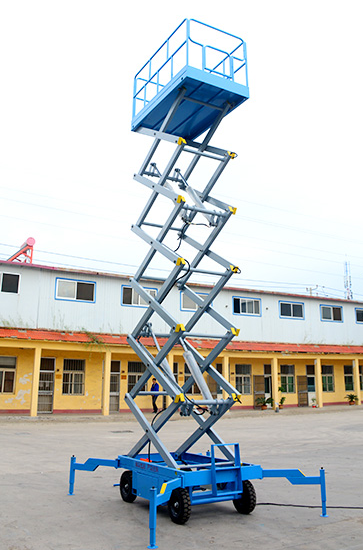

ADYD/QL0.5-6 500kg 6m lifting height warehouse used wheel type Scissor Lift Elevating Work Platform

Type : wheel type Scissor Lift Elevating Work Platform

Model : ADYD/QL0.5-6

Platform size : 2100*830mm

Load capacity : 500kg

Lifted height : 6m

Weight : 880kg

Dimension : 2250mm*950mm*1200mm

Send Inquiry Now

ADYD/QL0.5-6 500kg 6m lifting height warehouse used wheel type Scissor Lift Elevating Work Platform

Product Details

This series of lifting platform with lifting height ranging from 4m to 18m and loading weight from 300kg to 500kg, with lifting mode of manual operation, electric, battery and diesel oil etc.. Explosion-proof electric apparatus can be chosen for special places; remove control device platform can be installed according to the users’needs, which has advantages including easy to move, large surface and strong carrying capacity, allowing simultaneous operation of several persons, and safety & reliability, so it is the optimal product for aerial lifting operation.

Product Features

1. High-strength support legs, stable and not shaking

2. The tire has a large bearing capacity and is not easy to wear

3. Hydraulic cylinder with built-in explosion-proof valve

4. Hydraulic pump station power system

5. Shot blasting, sand blasting and rust removal; electrostatic powder spraying; the coating has excellent appearance quality, strong adhesion and mechanical strength, high color and brightness, and will not fade for a long time.

Technical Parameter

Type	Platform(mm)	Load(kg)	Lifted height(m)	Dimension(mm)	Weight(kg)
ADYD/QL0.5-4	2100x 830	500	4	2250x950x1200	880
ADYD/QL0.5-6	2100x 830	500	6	2250x950x1200	880
ADYD/QL0.5-7	2100x830	500	6.8	2250x950x1280	970
ADYD/QL0.5-8	2100x930	500	8	2250x1060x1380	1050
ADYD/QL0.5-9	2100x930	500	9	2250x1060x1500	1165
ADYD/QL0.5-10	2100x1230	500	10	2250x1350x1530	1360
ADYD/QL0.5-11	2100x1230	300	11	2250x1350x1650	1400
ADYD/QL0.5-12	2550x1530	500	12	2796x1670x1750	2260
ADYD/QL0.5-14	2812x1530	500	14	3067x1730x1810	2486
ADYD/QL0.3-16	2812x1600	300	16	3067x1810x2080	3063
ADYD/QL0.3-18	3070x1600	300	18	3321x1810x2080	3900

As the top ranking lifting work platforms, this type scissor lift is very popular selling and widely used in many industries. You can tell us your requirements so that we could design the product to meet your needs.
