Vehicle mounted aluminum alloy hydraulic telescopic lift platform

Type : vehicle mounted aluminum alloy lift platform

Platform height max. : customized as requirement

Load capacity : customized as requirement

Feature : Easy to move, strong mobility, support customization

Lifting height : 4-14m

MOQ : 1 set

Send Inquiry Now

Vehicle mounted aluminum alloy hydraulic telescopic lift platform

Product Details

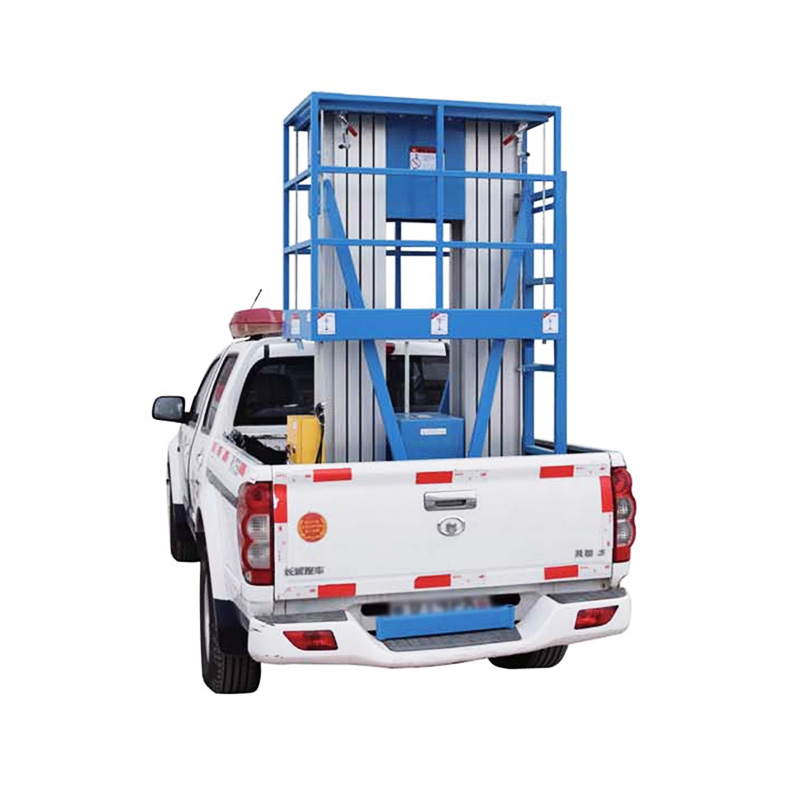

The battery vehicle-mounted hydraulic lifting platform is a special equipment for high-altitude operations modified from a lifting platform and a battery vehicle. It uses the original DC power of the battery car and can realize the lifting of the work platform and the movement of the entire machine without the need for an external power supply. It is easy to move and has a wide operating flow range. It is suitable for various lines of high-altitude operations with large operating range and strong mobility.

The car-mounted hydraulic lift table is modified from a lift table and a car. It receives the power of the car engine to realize the lifting function of the lifting platform. Suitable for high-altitude operations with large flow volumes.

Lift car is featured fast movement speed, large operation range, lifting without external power, strong maneuverability. They have been widely used in municipal construction and maintenance, street lighting,highway facilities maintenance, engineering repair, landscape design and trim and other aerial-work industries.

Product Features

1. Small size and convenient expansion and contraction; during the lifting, the expansion and contraction are stable and safe; after the lifting, the structure is firm and the efficiency is high;

2. Easy to move, strong mobility, support customization;

3. High-strength guardrails are safe from falling, and high-strength guardrails make high-altitude operations safe and convenient;

4. Safe and efficient remote control box: The aluminum alloy elevator is equipped with a remote control box, which can be controlled by the control box under the equipment or by the remote controller above or beside the equipment. It is safe and efficient, saving you time and effort;

5. Emergency lowering button to ensure safety: in an emergency, turn the emergency lower knob counterclockwise to make the platform fall. Under normal circumstances, the emergency lower knob should be rotated clockwise to the end, otherwise the platform cannot be lifted;

6. Shot blasting electrostatic spraying: Our factory said that all equipment is treated by large-scale sand blasting and shot blasting, and then the surface spraying treatment is completed through the electrostatic spraying line with a total length of more than 300 meters, and the paint surface of the whole machine is beautiful and bright;

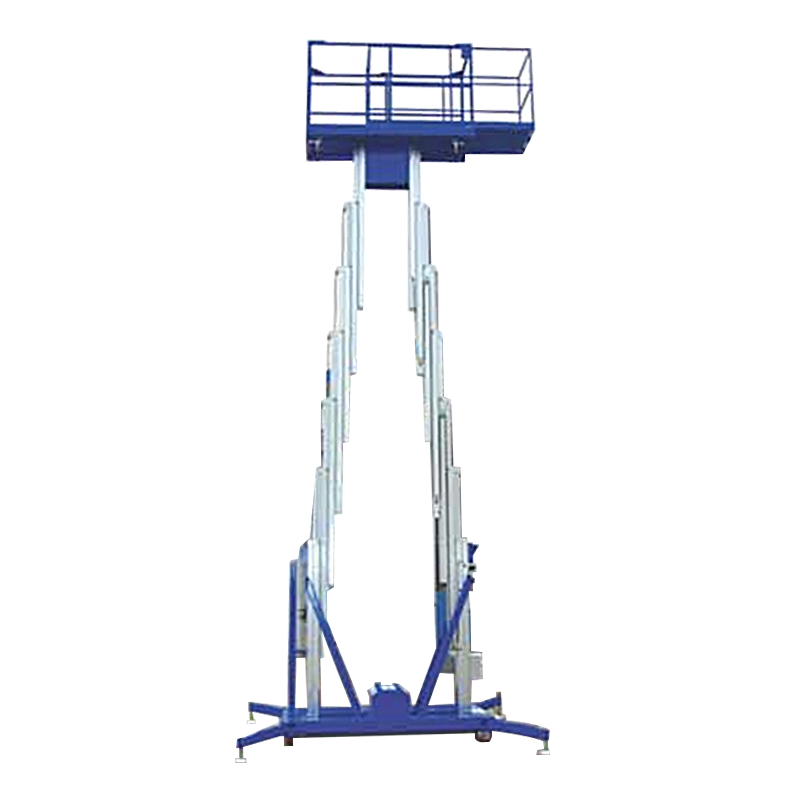

7. The equipment is divided into single-column, double-column conventional upper guardrail, and double-column side guardrail. The height of the product is optional from 4-14 meters, and the product load is optional from 100-300kg. It adopts high-strength and high-quality aluminum alloy materials, and Q235 steel plate thickens the chassis. To prevent bumps, the equipment is equipped with standard control and remote control, which is convenient for aerial workers to operate the equipment, saving time and efficiency.

Please note this series are non-standard customization products, according to the car model, increasing height, carrying capacity to produce.
