PRODUCT LIST

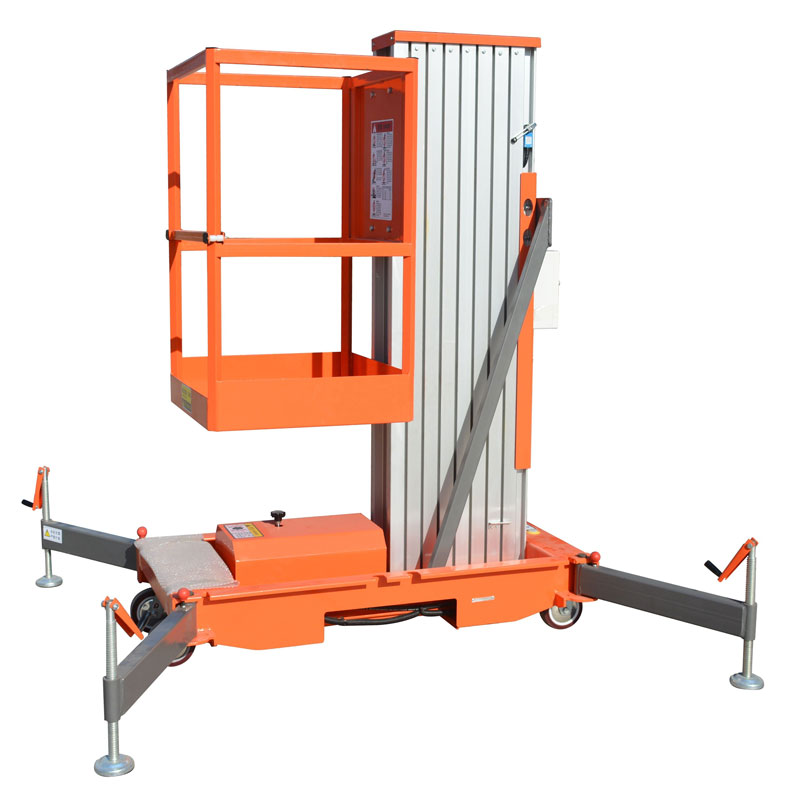

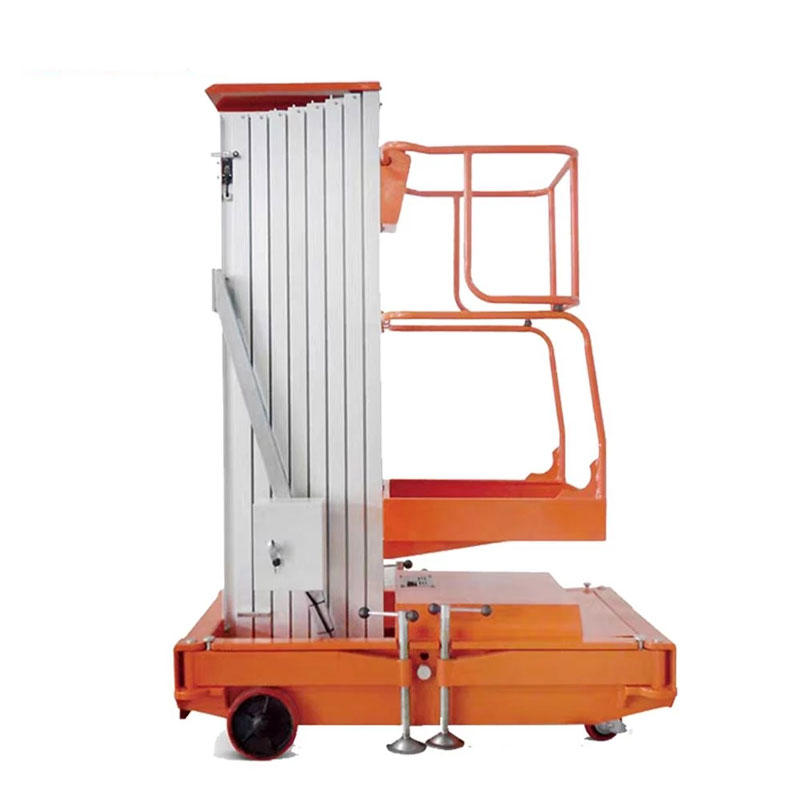

Type : Aluminum alloy lifting platform
Model : ADGD/AL6-200M2
Platform height max. : 6m
Platform Operation height : 7.7m
load capacity : 200kg
Platform size : 1100*600mm
Voltage : AC220/50Hz
Power : 1.5kw
Aluminum alloy type lifting platform used high strength and high
quality aluminum alloy material, with the advantages of beautiful appearance,
small size, light weight, lifting balance, safe and reliable, itself with
wearing steel safety wire rope and safety protection device. Can operate up and
down easily, widely used in factories, hotels, restaurants, airports, stations,
theaters, exhibition hall and other places.
Product Features
1. High strength aluminum alloy casting high density support
legs
2. Anti-wearing polyurethane wheels
3. Safety stainless steel guardrail
4. Safety emergency drop valve
5. Stable & safe aviation aluminum
6. Integrated distribution box, equipped with two remote
controls
Technical Parameter
Mast | Model | Platform height(m) | Platform operation height(m) | Load capcity （kg） | Platform size (m) | Supply voltage (v) | Power (kw) | Weigh (kg) | Dimension (m) |
| Single mast | ADGD/AL4-100M1 | 4 | 5.7 | 100 | 600*600 | AC220/50HZ | 0.75 | 250 | 1280*800*1750 |
| ADGD/AL6-100M1 | 6 | 7.7 | 100 | 600*600 | AC220/50HZ | 0.75 | 280 | 1280*800*1900 | |
| ADGD/AL8-100M1 | 8 | 9.7 | 100 | 600*600 | AC220/50HZ | 0.75 | 300 | 1280*800* 1980 | |
| ADGD/AL9-100M1 | 9 | 10.7 | 100 | 600*600 | AC220/50HZ | 1.1 | 320 | 1360*850*2000 | |
| ADGD/AL10-100M1 | 10 | 11.7 | 100 | 600*600 | AC220/50HZ | 1.1 | 340 | 1360*900*2100 | |
| Double mast | ADGD/AL4-200M2 | A | 5.7 | 200 | 1100*600 | AC220/50HZ | 1.5 | 380 | 1300*900*1750 |
| ADGD/AL6-200M2 | 6 | 7.7 | 200 | 1100*600 | AC220/50HZ | 1.5 | 420 | 1300*900* 1900 | |
| ADGD/AL8-200M2 | 8 | 9.7 | 200 | 1150,600 | AC220/50HZ | 1.5 | 550 | 1360*900*2000 | |
| ADGD/AL10-200M2 | 10 | 11.7 | 200 | 1350*600 | AC220/50HZ | 1.5 | 600 | 1560*970* 1900 | |
| ADGD/AL12-200M2 | 12 | 13.7 | 200 | 1450*600 | AC220/50HZ | 1.5 | 700 | 1.66*0.97*2000 | |
| ADGD/AL14-200M2 | 14 | 15.7 | 200 | 1450*600 | AC220/50HZ | 1.5 | 800 | 1660*1100*2350 | |
| Three ast | ADGD/AL10-320M3 | 10 | 11.7 | 200 | 1570,900 | AC220/50HZ | 2.2 | 900 | 2100*1250*2000 |
| ADGD/AL12-320M3 | 12 | 13.7 | 200 | 1570*900 | AC220/50HZ | 2.2 | 900 | 1560*970* 1900 | |
| ADGD/AL14-320M3 | 14 | 15.7 | 200 | 1570*900 | AC220/50HZ | 2.2 | 1000 | 1.66*0.97*2000 | |
| ADGD/AL16-320M3 | 16 | 17.7 | 200 | 1570*900 | AC220/50HZ | 2.2 | 1000 | 1660*1 100*2350 | |
| Four ast | ADGD/AL10-420M4 | 10 | 11.7 | 200 | 1470*850 | AC220/50HZ | 2.2 | 1100 | 2100*1250*2000 |
| ADGD/AL12-420M4 | 12 | 13.7 | 200 | 1570*900 | AC220/50HZ | 2.2 | 1200 | 2100*1250*2000 | |
| ADGD/AL14-420M4 | 14 | 15.7 | 200 | 1570" 900 | AC220/50HZ | 2.2 | 1300 | 2100*1250*2350 | |
| ADGD/AL16-420M4 | 16 | 17.7 | 200 | 1570*900 | AC220/50HZ | 2.2 | 1500 | 2100*1250*2650 | |
| ADGD/AL18-420M4 | 18 | 19.7 | 200 | 1570*900 | AC220/50HZ | 2.2 | 1700 | 2100*1350*2900 | |
| Six mast | ADGD/AL18-620M6 | 18 | 19.7 | 150 | 1570, 900 | AC220/50HZ | 2.2/1.1 | 1700 | 2500* 1600*2450 |
| ADGD/AL20-620M6 | 20 | 21.7 | 150 | 1570*900 | AC220/50HZ | 2.2/1.1 | 1800 | 2500*1600*2450 | |
| ADGD/AL22-620M6 | 22 | 23.7 | 150 | 1570*900 | AC220/50HZ | 2.2/1.1 | 1900 | 2500* 1600*2700 | |
| ADGD/AL24-620M6 | 24 | 25.7 | 150 | 1570*900 | AC220/50HZ | 2.2/1.1 | 2000 | 2500*1600*2850 |
· Professional manufacturer with many years' experience
· Good quality with competitive price
· Various payment items are acceptable
· Good service by experienced manager
