PRODUCT LIST

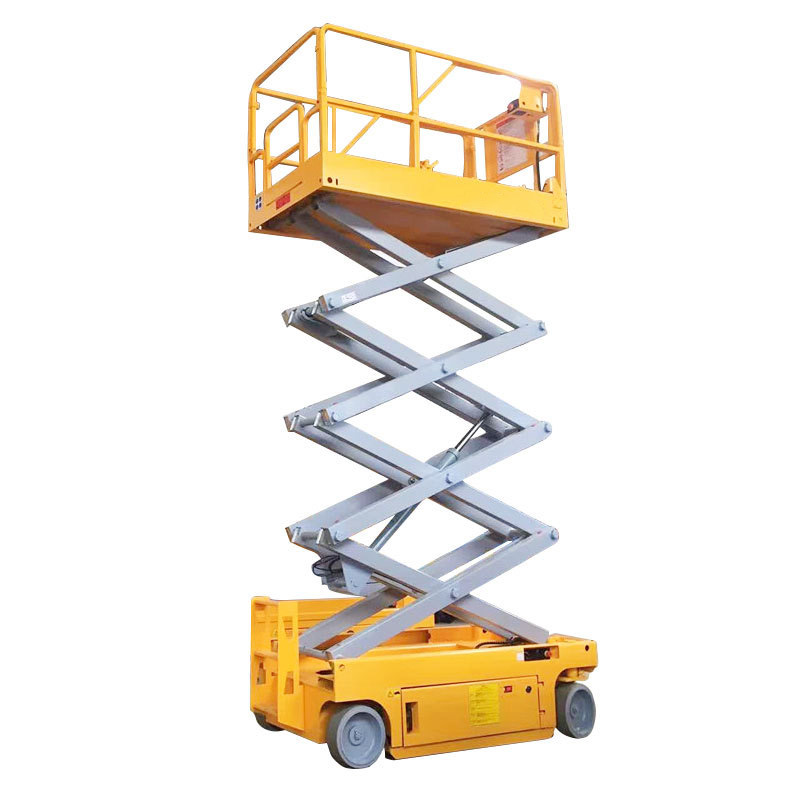

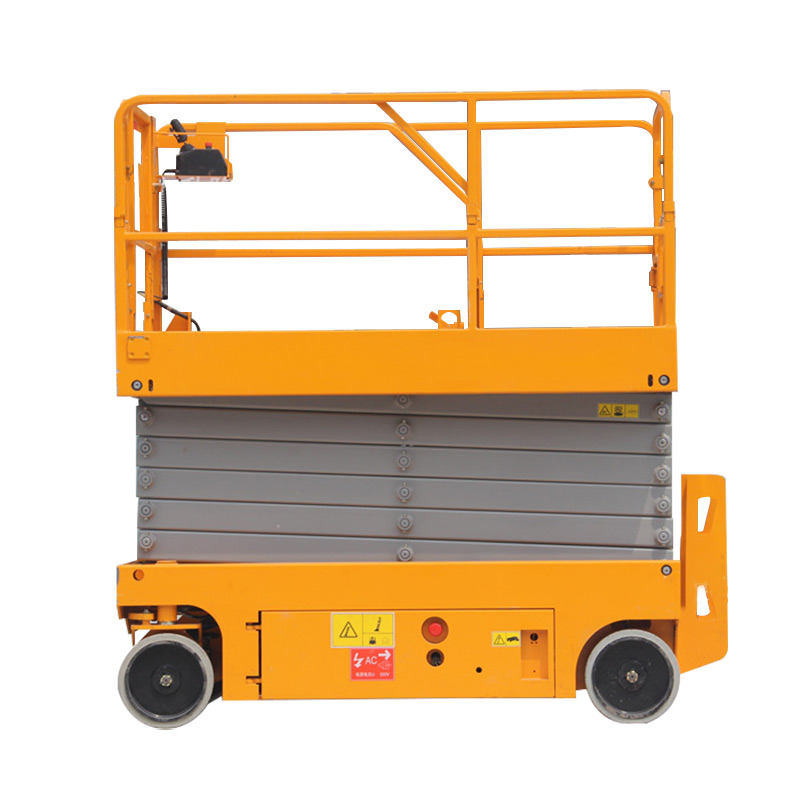

Type : Electric Self Propelled Scissor Lift
Lifting height : 12m
Model : GTJZD-12
Load capacity : 250kg
Voltage : 380V 50HZ 3 phase or 220/240/400V/440V etc
Drive mode : Electric drive
Overall size : 2470mm*1170mm*2550mm
Electric Self propelled Scissor Lift is famous for its small compact body size,simple structure and very low failure rate. Its all by battery power. Operator can control lifting, moving, turning and all movement on the platform through the control system.
Feature
1. Self-Drive System
2. Extention Deck
3. Non-Marking Tyres (Free from Dirt when Travelling on Floor)
4. Power Source 24V Four 6V AH Battery
5. Compact, Fit through Doors and Aisles
6. 10 to 15 Degree Slope Climing Ability
Configuration
1) Electric Motor for Travel
2) Electric Control System
3) Premium Hydraulic Pump Station
4) Durable Battery
5) Intelligent Battery Charger
6) Ergonomic Integrated Handle
7) High Strength Hydraulic Cylinder
Technical Parameter
|
Model |
Table size(m) |
Load
capacity
|
Platform height |
Overall size(m) |
Extension of platform(m) |
Overall weight(kg) |
|
GTJZD-6 |
2.26*1.13 |
230kg |
6m |
2.47*1.17*2.29 |
0.9 |
1900 |
|
GTJZD-8 |
2.26*1.13 |
230kg |
8m |
2.47*1.17*2.31 |
0.9 |
2060 |
|
GTJZD-10 |
2.26*1.13 |
230kg |
10m |
2.47*1.17*2.43 |
0.9 |
2300 |
|
GTJZD-10 |
2.26*1.13 |
320kg |
10m |
2.47*1.17*2.43 |
0.9 |
2730 |
|
GTJZD-12 |
2.26*1.13 |
230kg |
12m |
2.47*1.17*2.55 |
0.9 |
2460 |
|
GTJZD-12 |
2.26*1.13 |
320kg |
12m |
2.47*1.17*2.55 |
0.9 |
2860 |
· Professional manufacturer with many years' experience
· Good quality with competitive price
· Various payment items are acceptable
· Good service by experienced manager
