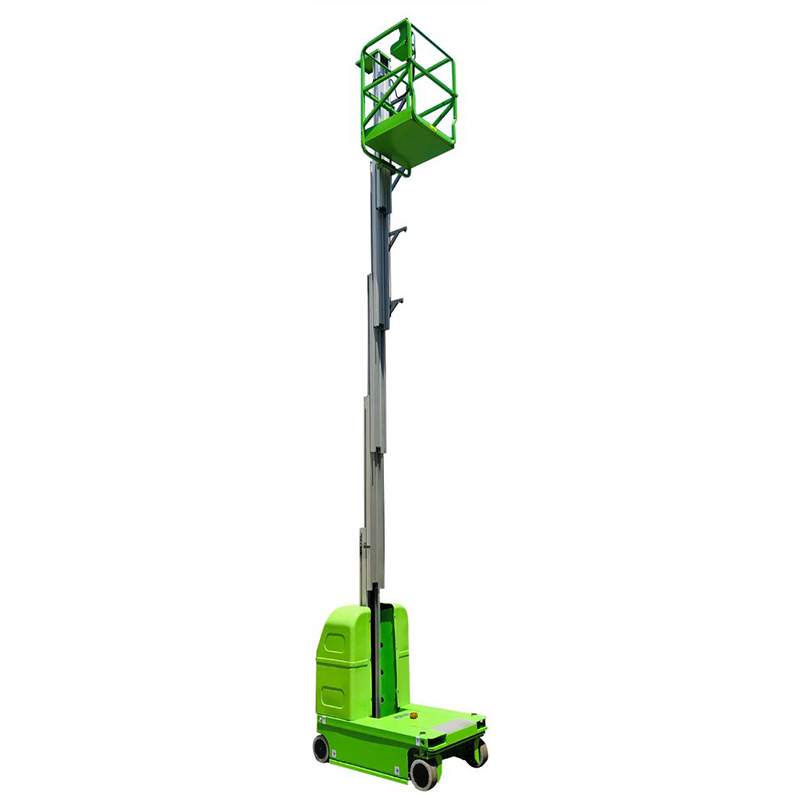

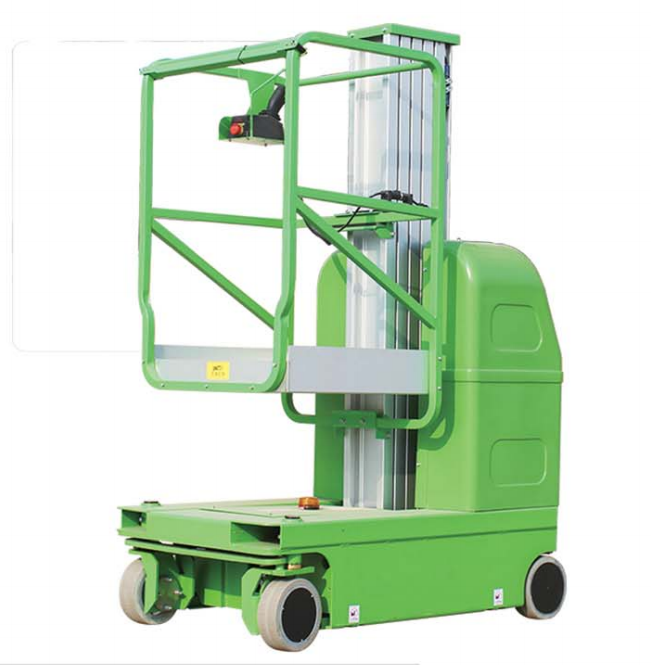

New Self-propelled aluminum alloy lift platform

Model : ADYD/AL8-1250

Loading : 125kg

Working height : 8m

Platform size : 780mm*700mm

Dimensions : 1360mm*790mm*2080mm

Weight : 880kg

Send Inquiry Now

New Self-propelled aluminum alloy lift platform

Product Details

Self Propelled Aluminum Lift is famous for its light weight and high lift. It is made of aluminum alloy. It is self propelled with electric driving motor. Operator can drive it around flexibly when stand on the platform. Non-trace universal polyurethane wheels used will be no damage to ground. DC battery power make the low noise when using.

Main features

1) Powered by DC, self-propelled and infinitely shift-speeds, controlled by joystick.
2)The driving motor has the automatic braking function.
3) Gradeability: 15-20%.
4) Pothole-protection and tilt alarm.
5)The malfunction can be diagnosed and displayed in codes. Emergency down-valve device.
6) Charge protection: When charged, the machine’s operation will be restricted.

Technical parameters

Model	ADYD/AL8-1250	ADYD/AL10-1250	ADYD/AL10-2000	ADYD/AL11-1500
Loading(kg)	125	125	200	150
Working height(m)	8	9.5	9.5	11
Platform size(mm)	780*700	780*700	1000*700	1000*700
Dimensions(mm)	13607902080	13607902080	150010002080	150010002080
Weight(kg)	880	910	1200	1450

Application

Adjustable Self-Propelled Single Person vertical mast mobile aluminum alloy man lift platform for installation widely used in factories, hotel, shopping centers, station, airport, workshops,hospitals, warehouses for maintenance, cleaning etc. It is mainly used to lift workers to higher places for maintenance,cleaning or installation, normally from 4m to 14m high.

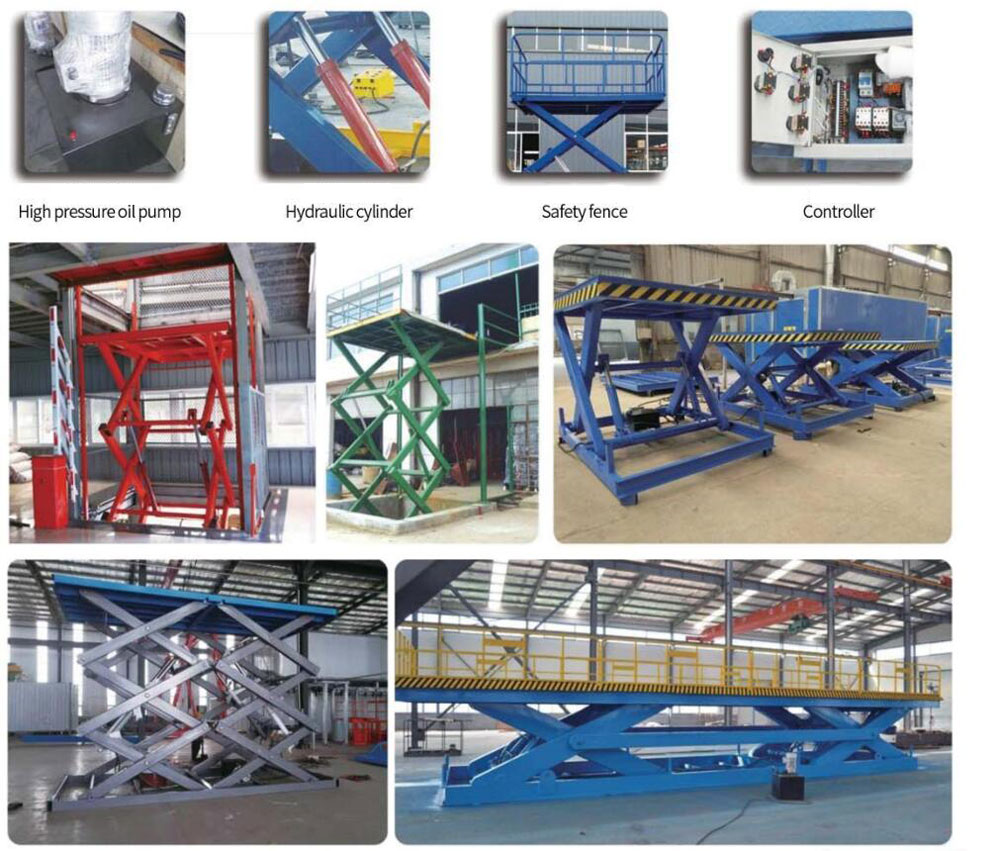

Other kinds lift platform
