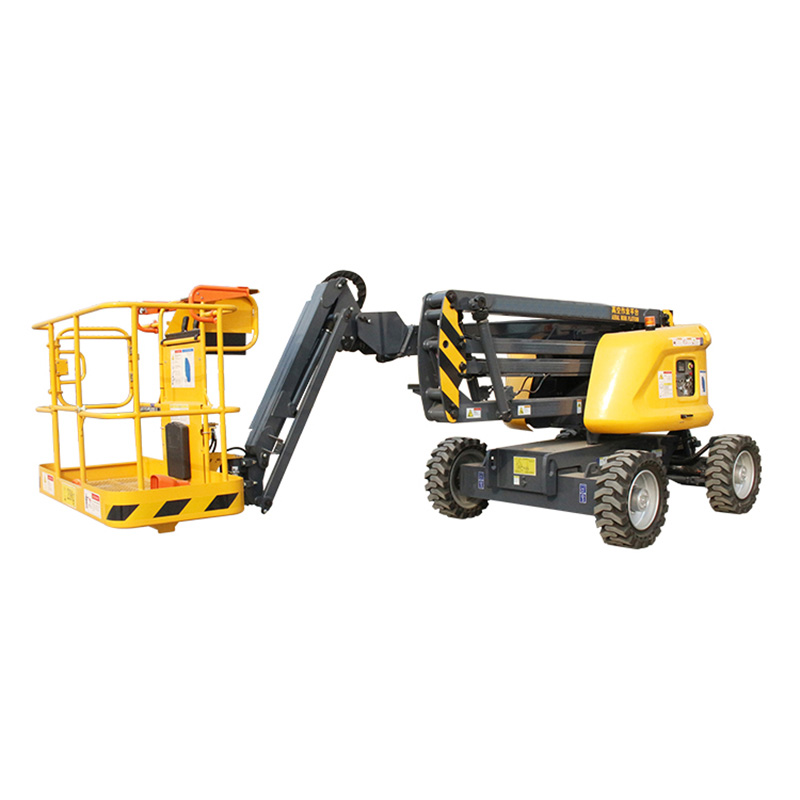

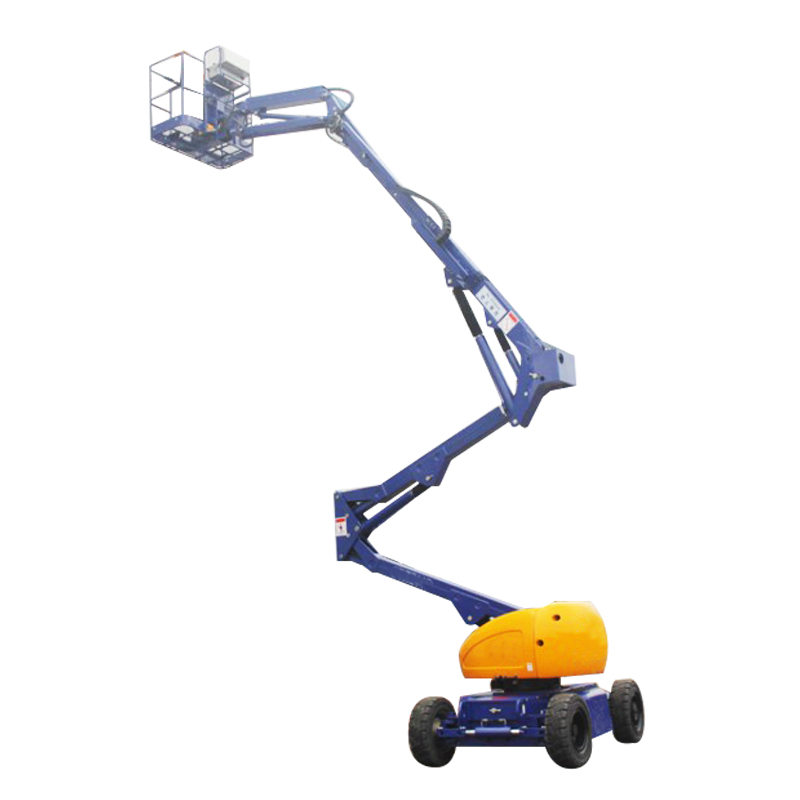

Professional self-propelled crank arm aerial work lift platform

Medel : ADYD/A1200-EBA

Max working heigh : 16.05m

Max span height : 7.6m

Platform size : 1530mm*760mm

Max loading : 230kg

Grade : 30%

Weight : 6270kg

Send Inquiry Now

Professional self-propelled crank arm aerial work lift platform

Product Details

The self propelled electric articulating boom lift can reach obstructed work zones that are otherwise inaccessible. With precise up, over, and out positioning capabilities, the boom lift gives operators direct contact to the work site. Equipped with an electric engine, making it a suitable machine for extensive jobs in residential areas or highly populated work sites. Its compact frame allows it to easily enter standard doorways, gateways, and passageways, and its industrial-grade tires can easily tread rough terrain.

Main features

1.The engine uses diesel engine as power, self supporting leg, self lifting, self walking, 360 ° rotation operation.
2.It has the characteristics of simple operation, convenient use, large working surface, especially has the ability of overhanging operation, crossing certain obstacles or lifting at one place, and can carry out large-scale multi-point lifting operation, which greatly improves the work efficiency.
3.The power can be DC, AC+DC, diesel power, also can be design as Bi-energy.

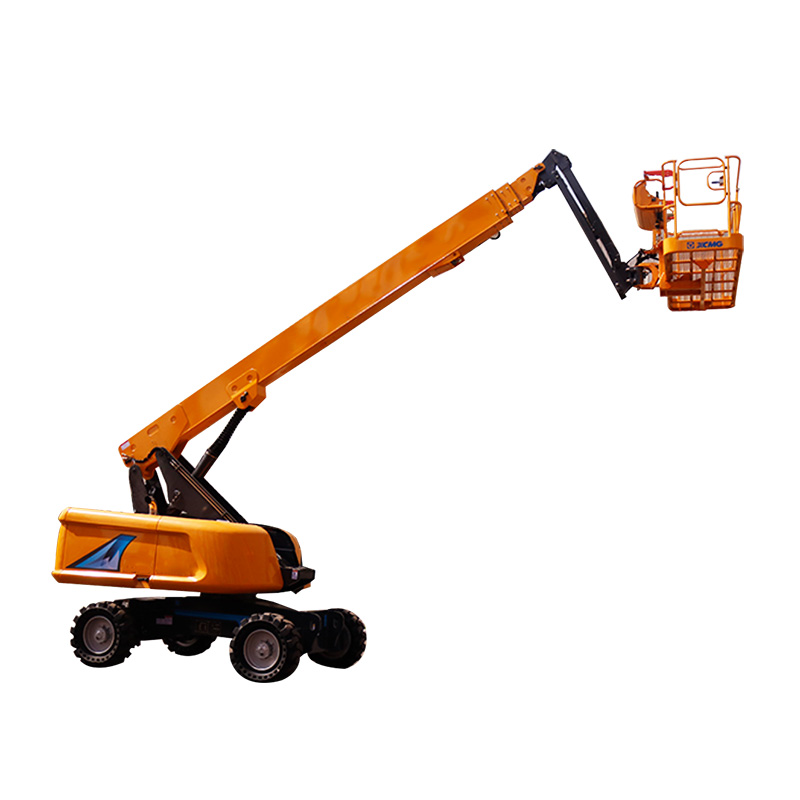

4.It can add Telescopic boom according to different application.

Technical parameters

Item	ADYD/A1200-EBA	ADYD/A1200-EBA	ADYD/A1200-EBA	ADYD/A1200-EBA	ADYD/A1200-EBA	ADYD/A1200-EBA
Max working height(m)	12	14	16.05	17.8	20	21.9
Max span height(m)	4.78	5	7.6	7.6	9.2	9.2
Platform size(mm)	1100*650	1100*650	1530*760	1530*760	1530*760	1530*760
Max loading(kg)	200	200	230	230	230	230
Grade	25%	25%	30%	30%	25%	25%
Weight(kg)	4800	5500	6270	6720	8080	8200

Application

The articulating arm type aerial work platform is designed in a multi-stage folding arm combination method, which is flexible and convenient. It can cross certain obstacles and perform multi-point operations in one place. Good security, easy to move. The crank arm aerial work platform truck is widely suitable for installation and maintenance and climbing operations in urban management, electric power, street lights, advertising, communications, viewfinder, gardens, transportation, docks, airport ports, large industrial and mining companies and other industries.
