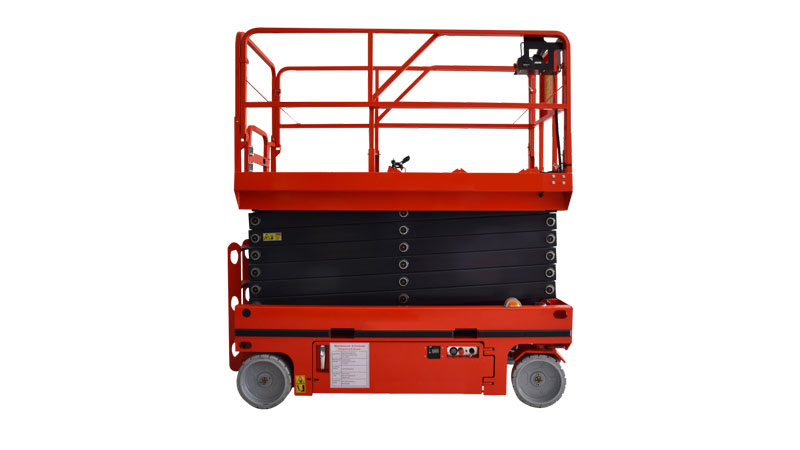

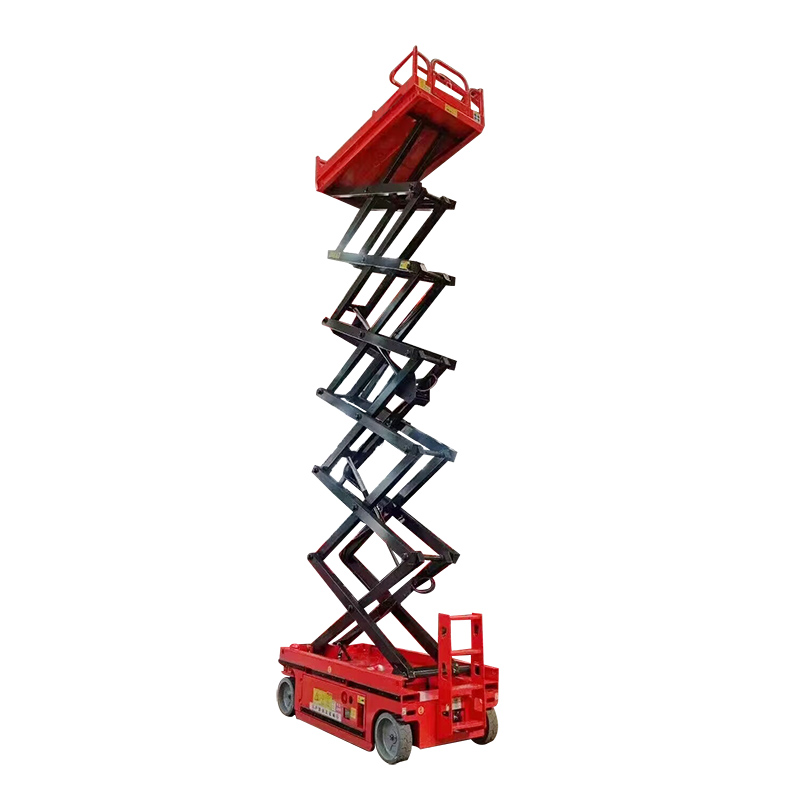

10m Movable Self Propelled Electric Hydraulic Scissor Lift Platform

Type : Hydraulic Scissor Lift Platform

Model : GTJZD-12

Lifting height : 12m

Load capacity : 230kg

Overall size : 2470mm*1170mm*2550mm

Voltage : 380V 50HZ 3 phase or 220/240/400V etc

Drive mode : Electric drive

Send Inquiry Now

10m Movable Self Propelled Electric Hydraulic Scissor Lift Platform

Product Details

Hydraulic Scissor Lift Platform is famous for its small compact body size, simple structure and very low failure rate. Its all by battery power. Operator can control lifting, moving, turning and all movement on the platform through the control system. It is easy to move and convenient to load materials. This type of lifting platform is widely applied in many industries.

Configuration

1) Electric Motor for Travel

2) Electric Control System

3) Premium Hydraulic Pump Station

4) Durable Battery

5) Intelligent Battery Charger

6) Ergonomic Integrated Handle

7) High Strength Hydraulic Cylinder

Feature

1. Self-Drive System

2. Extention Deck

3. Non-Marking Tyres (Free from Dirt when Travelling on Floor)

4. Power Source 24V Four 6V AH Battery

5. Compact, Fit through Doors and Aisles

6. 10 to 15 Degree Slope Climbing Ability

Technical Parameter

Model	Table size(m)	Load capacity	Platform height	Overall size(m)	Extension of platform(m)	Overall weight(kg)
GTJZD-6	2.26*1.13	230kg	6m	2.471.172.29	0.9	1900
GTJZD-8	2.26*1.13	230kg	8m	2.471.172.31	0.9	2060
GTJZD-10	2.26*1.13	230kg	10m	2.471.172.43	0.9	2300
GTJZD-10	2.26*1.13	320kg	10m	2.471.172.43	0.9	2730
GTJZD-12	2.26*1.13	230kg	12m	2.471.172.55	0.9	2460
GTJZD-12	2.26*1.13	320kg	12m	2.471.172.55	0.9	2860
