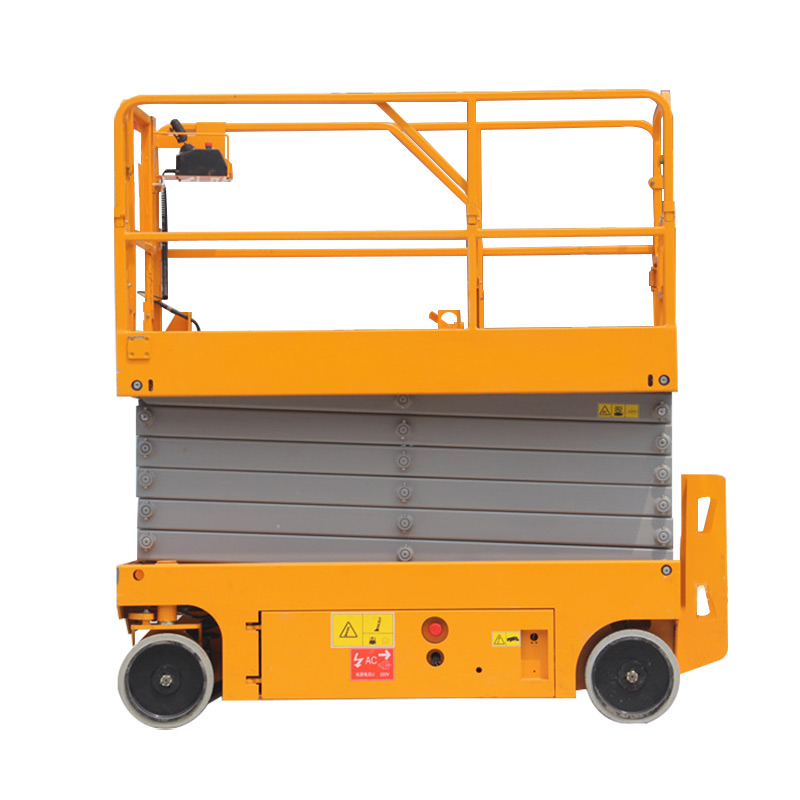

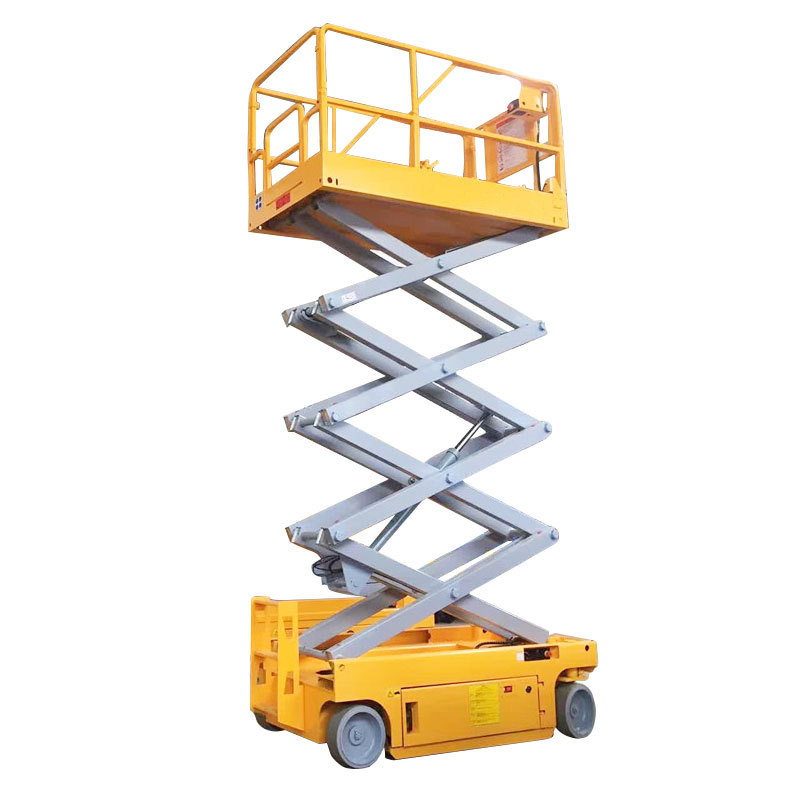

Self Propelled Scissor Lift Aerial Lift Electric Small Scissor Lift for Aerial Work

Type : Self Propelled Scissor Lift

Model : GTJZD-10

Lifting height : 10m

Load capacity : 320kg

Overall size : 2470mm*1170mm*2430mm

Voltage : 380V 50HZ 3 phase or 220/240/400V etc

Drive mode : Electric drive

Send Inquiry Now

Self Propelled Scissor Lift Aerial Lift Electric Small Scissor Lift for Aerial Work

Product Details

Self propelled Scissor Lift is famous for its small compact body size,simple structure and very low failure rate. Its all by battery power. Operator can control lifting, moving, turning and all movement on the platform through the control system.

Configuration

1) Electric Motor for Travel

2) Electric Control System

3) Premium Hydraulic Pump Station

4) Durable Battery

5) Intelligent Battery Charger

6) Ergonomic Integrated Handle

7) High Strength Hydraulic Cylinder

Feature

1. Self-Drive System

2. Extention Deck

3. Non-Marking Tyres (Free from Dirt when Travelling on Floor)

4. Power Source 24V Four 6V AH Battery

5. Compact, Fit through Doors and Aisles

6. 10 to 15 Degree Slope Climing Ability

Technical Parameter

Model	Table size(m)	Load capacity	Platform height	Overall size(m)	Extension of platform(m)	Overall weight(kg)
GTJZD-6	2.26*1.13	230kg	6m	2.471.172.29	0.9	1900
GTJZD-8	2.26*1.13	230kg	8m	2.471.172.31	0.9	2060
GTJZD-10	2.26*1.13	230kg	10m	2.471.172.43	0.9	2300
GTJZD-10	2.26*1.13	320kg	10m	2.471.172.43	0.9	2730
GTJZD-12	2.26*1.13	230kg	12m	2.471.172.55	0.9	2460
GTJZD-12	2.26*1.13	320kg	12m	2.471.172.55	0.9	2860
