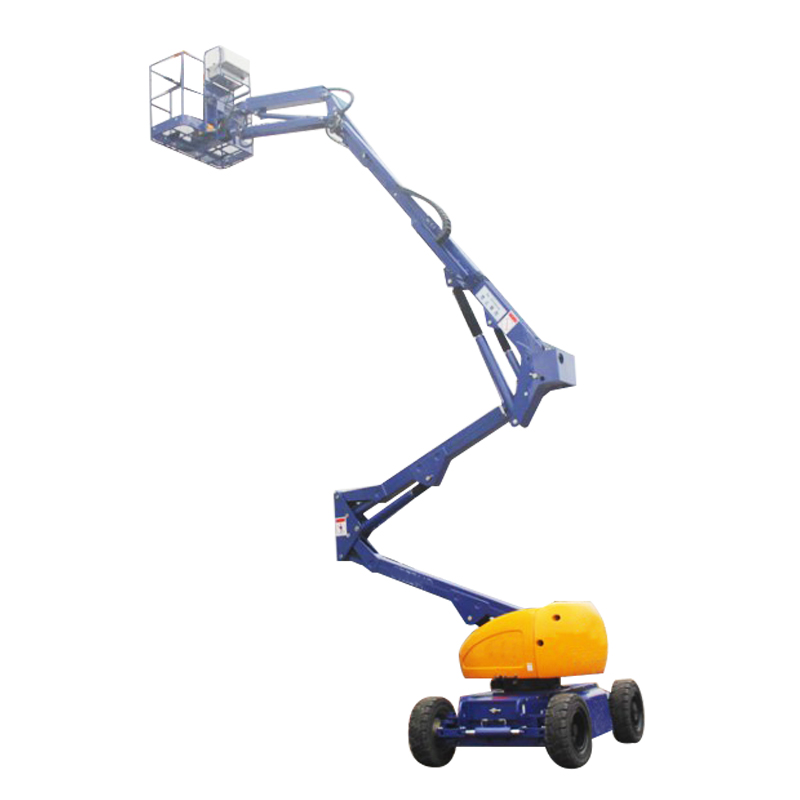

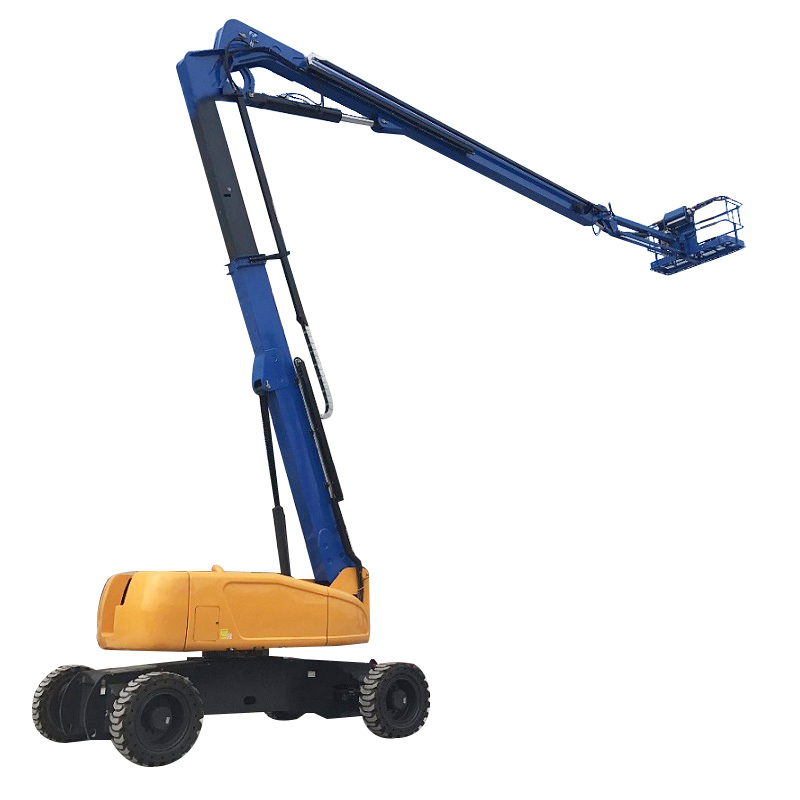

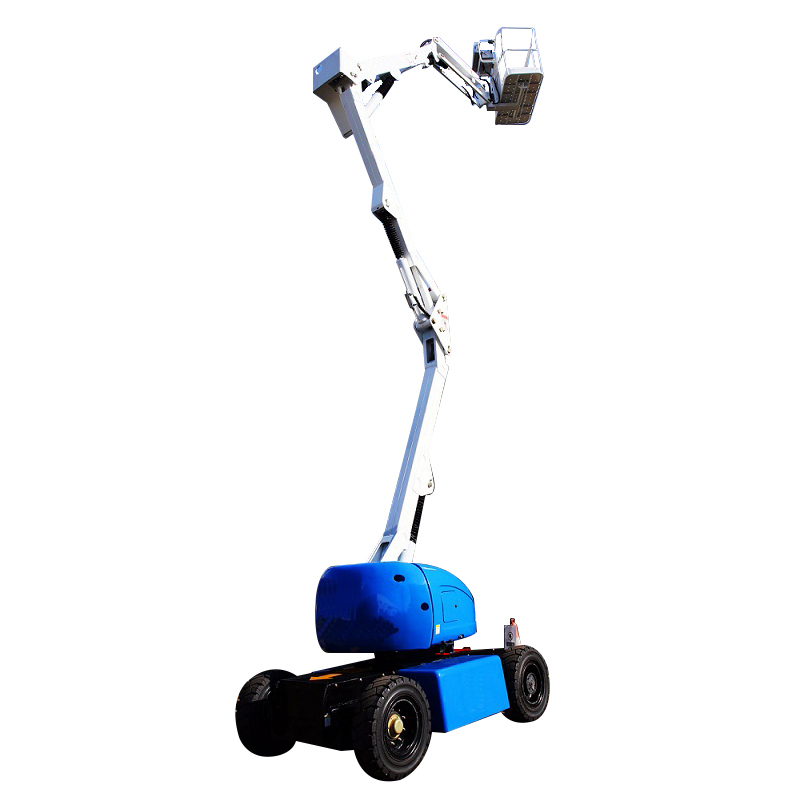

22 Meters Self-propelled curved arm lifting work platform

Product name : 22 Meters Self-propelled curved arm lifting work platform

Model : ADYD/A1200-EBA

Max working height : 21.9m

Max span height : 9.2m

Platform size : 1530mm*760mm

Max loading : 230kg

Grade : 25%

Weight : 8200kg

Send Inquiry Now

22 Meters Self-propelled curved arm lifting work platform

Product Details

The self-propelled crank arm lifting work platform can be used for overhanging operations, crossing certain obstacles, or lifting at one place for multi-point operations. 360-degree rotation, the platform has a large load capacity, and can be used for two or more people to work at the same time and can carry certain equipment. The equipment has good mobility and is convenient to transfer the site. The appearance is beautiful, and it is suitable for large-scale operations such as stations, docks, shopping malls, stadiums, residential properties, factories and mines.

Characteristics

1. Enhancing Efficiency and Ensuring Safety
2. Outstanding Performance and Stability
3. Safe and Efficient; Elevating Work Quality
4. Innovative Design to Meet Multiple Needs

Notice

Ø It is forbidden to use overload.
Ø Pay attention to the maintenance of lifting joints with lubricating oil.
Ø You need to open the four-legged legs to lift.
Ø Do not move when lifting.

Technical parameters

Item	ADYD/A1200-EBA	ADYD/A1200-EBA	ADYD/A1200-EBA	ADYD/A1200-EBA	ADYD/A1200-EBA	ADYD/A1200-EBA
Max working height(m)	12	14	16.05	17.8	20	21.9
Max span height(m)	4.78	5	7.6	7.6	9.2	9.2
Platform size(mm)	1100*650	1100*650	1530*760	1530*760	1530*760	1530*760
Max loading(kg)	200	200	230	230	230	230
Grade	25%	25%	30%	30%	25%	25%
Weight(kg)	4800	5500	6270	6720	8080	8200

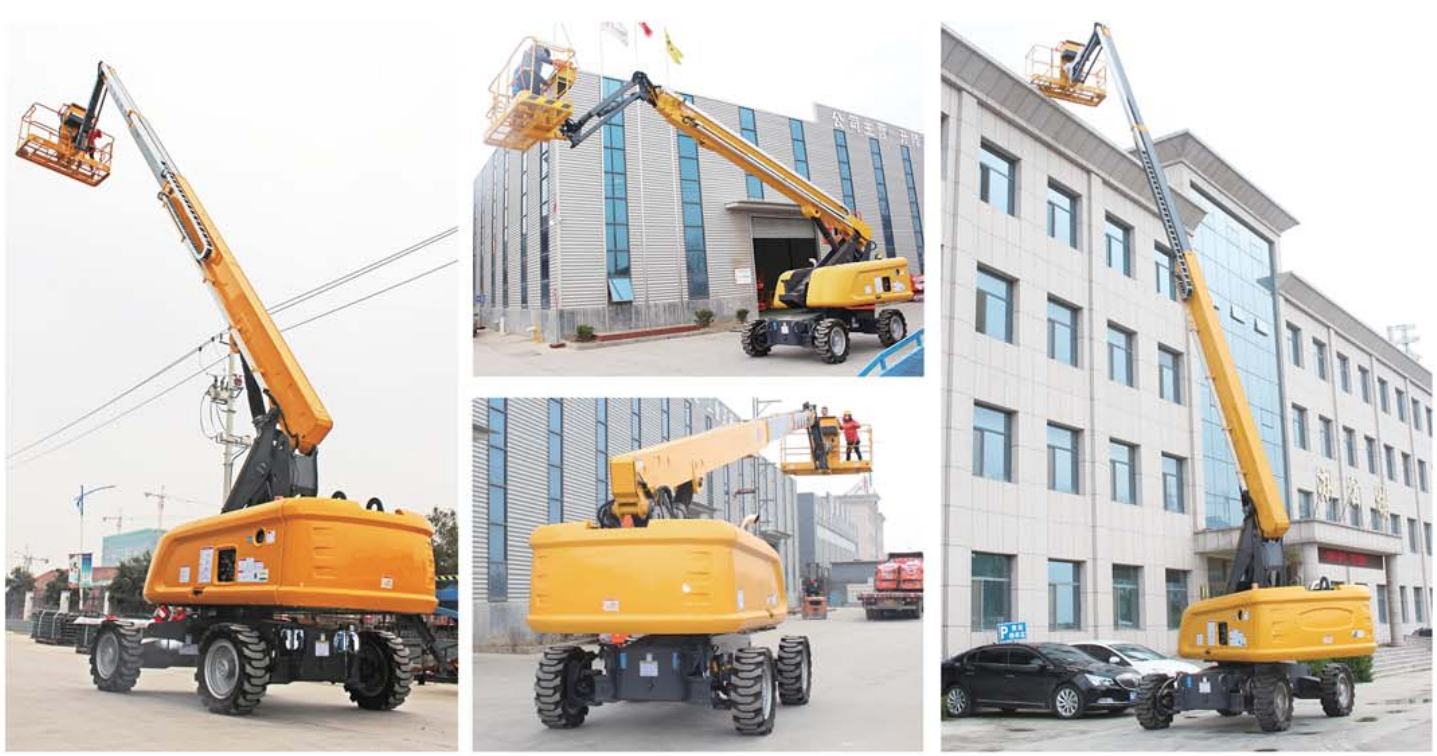

Application

Mainly used in construction sites, factories, warehouses, stations, hotels, airports, docks, gas stations and other high-altitude equipment installation, maintenance and cleaning of aerial working platforms enable us to complete work faster, better, more convenient and safer.
