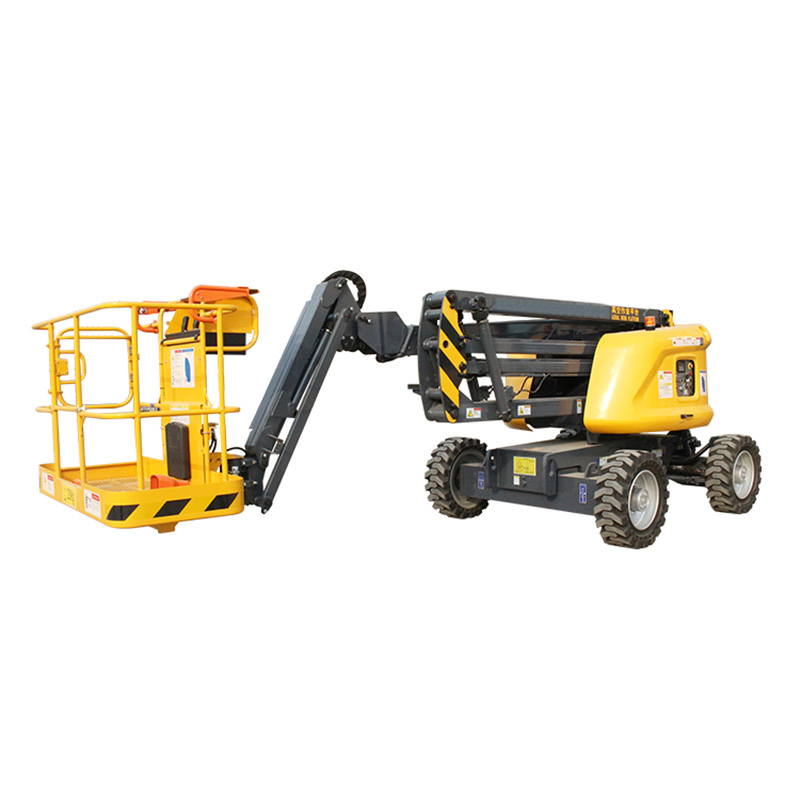

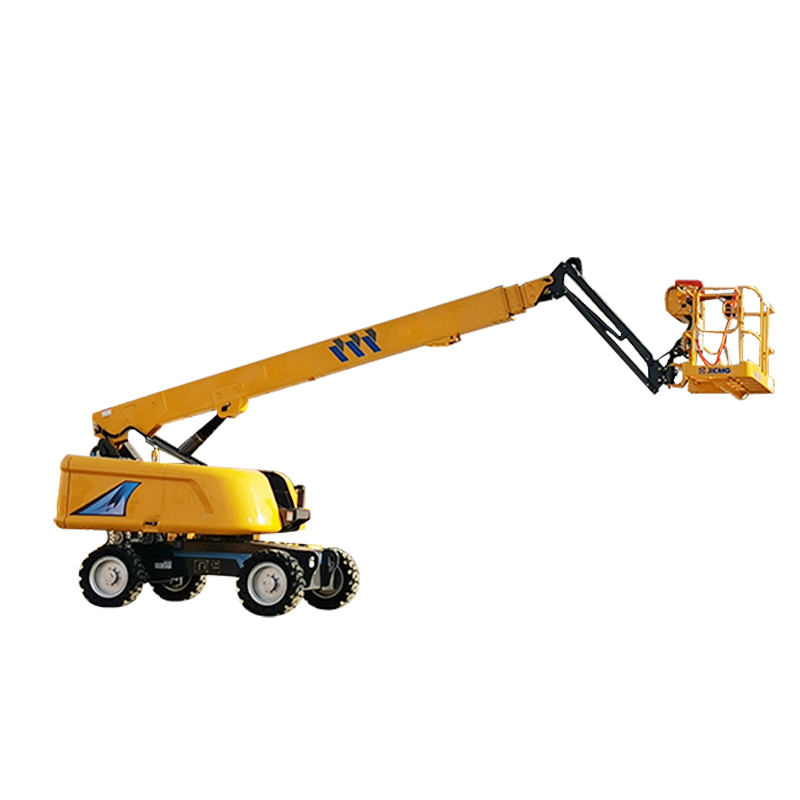

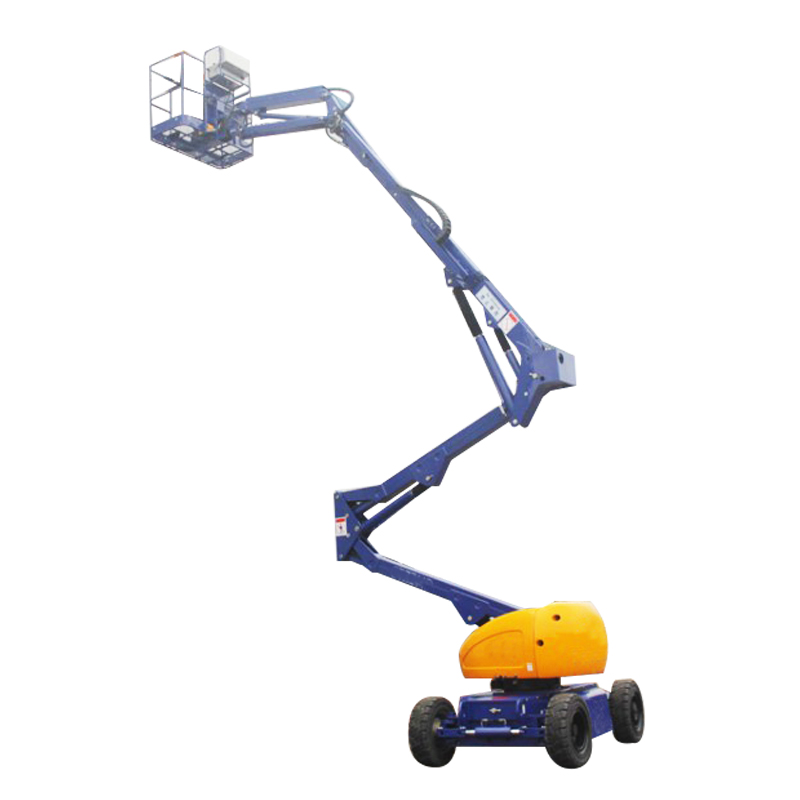

Electric curved aerial work lift platform with telescopic arm

Product name : Electric curved arm lift platform

Model : ADYD/A2190-EBA

Max lifting height : 21.9m

Platform size : 1530mm*760m

Max loading : 230kg

Grade : 25%

Weight : 8200kg

Send Inquiry Now

Electric curved aerial work lift platform with telescopic arm

Product Details

The power of the self-propelled crank arm aerial work platform is divided into diesel engine type,DC motor type,the lifting arm has two sections,three sections, the lifting height is from 10 meters to 32 meters,all models are full-height walking arm extends and lifts,and the turntable rotates 3600.Different models are equipped with different power sources to meet the different requirements of indoor and outdoor.Driven by diesel engine or battery power.combined with effective geometric design and long spanning radius.this model can effectively avoid difficult obstacles. The compact industrial design chassis and excellent in-situ zero tail swing rotation capability,so the self-propelled crank arm lifting work platform of less than 20 meters can be flexibly operated in a limited space.The self-propelled crank arm lifting platform is your ideal tool for high-altitude operations such as maintenance installation and trimming.

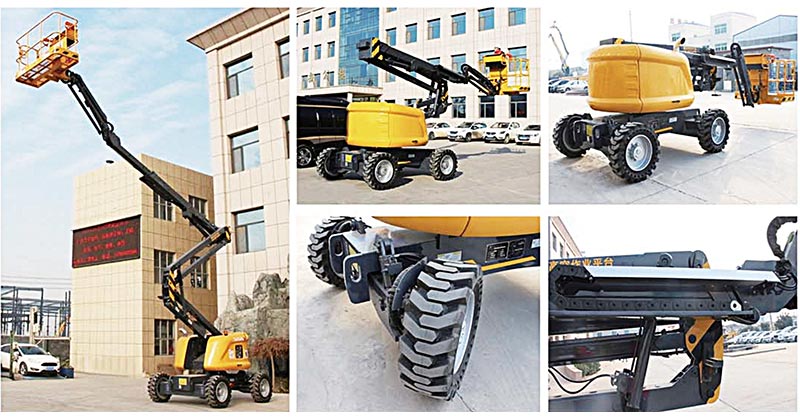

Main features

Main Structure

　　This material has high strength, strong bending resistance and corrosion resistance. All rotating parts are equipped with lubricating bearings.

Surface Treatment

　　The surface of the product is treated with anti-rust, so that the product will not rust during use and affect the appearance.

Tire

　　Solid tires, high wear resistance / low resistance, easy to maintain.

Control Panel-Bottom

　　The PLC system display screen and integrated control panel allow workers to control on the ground for easy maintenance and operation.　

Hydraulic System

　　The seals and sealing rings are all imported from Germany (Deck Seal Company).

Control Panel-Top

　　Let workers be at high altitude and perform various tasks, front and back, left and right, ascent and descent.

Technical parameters

Item	ADYD/A1200-EBA	ADYD/A1200-EBA	ADYD/A1200-EBA	ADYD/A1200-EBA	ADYD/A1200-EBA	ADYD/A1200-EBA
Max working height(m)	12	14	16.05	17.8	20	21.9
Max span height(m)	4.78	5	7.6	7.6	9.2	9.2
Platform size(mm)	1100*650	1100*650	1530*760	1530*760	1530*760	1530*760
Max loading(kg)	200	200	230	230	230	230
Grade	25%	25%	30%	30%	25%	25%
Weight(kg)	4800	5500	6270	6720	8080	8200

Application

Mainly used in construction sites, factories, warehouses, stations, hotels, airports, docks, gas stations and other high-altitude equipment installation, maintenance and cleaning of aerial working platforms enable us to complete work faster, better, more convenient and safer.
