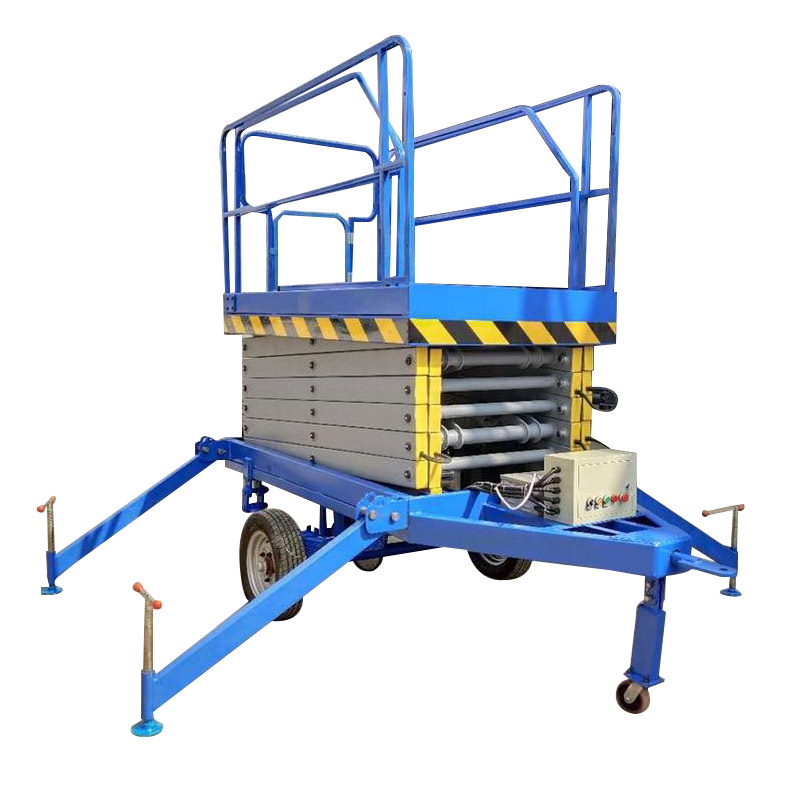

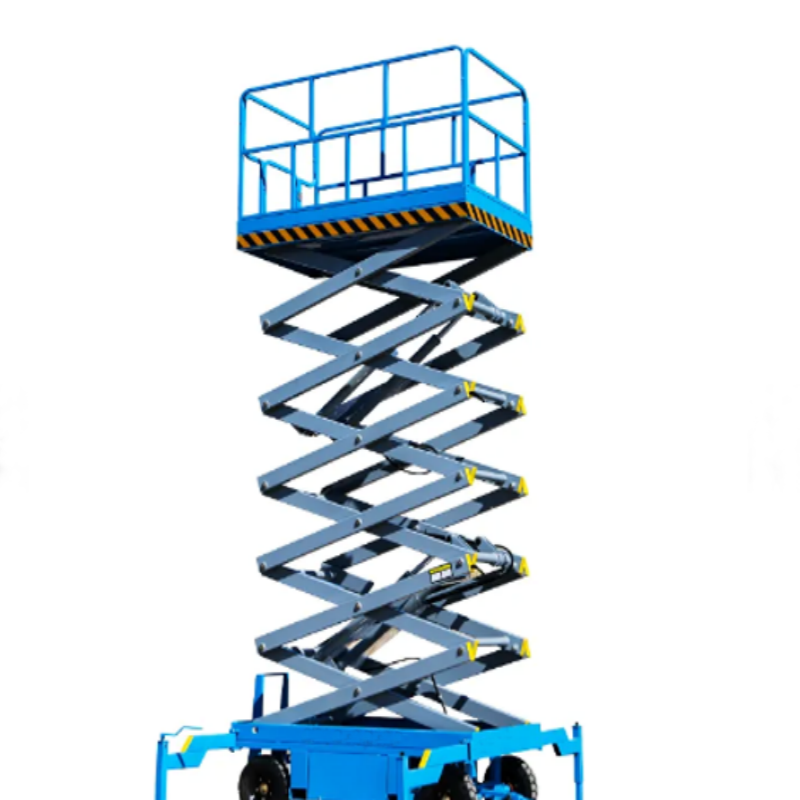

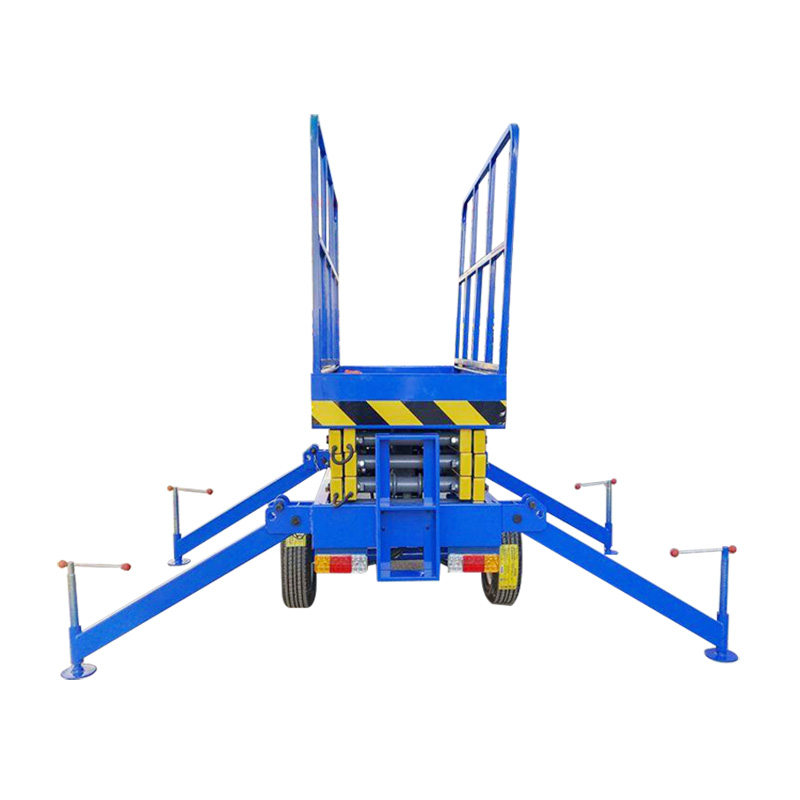

Mobile semi-electric hydraulic scissor scaffolding lift platform

Product name : Scaffolding lift platform

Model : ADYD/QL0.3-16

Platform size : 2812mm*1600mm

Loading : 300kg

Lifted height : 16m

Dimension : 3067mm*1810mm*2080mm

Weight : 3063kg

Send Inquiry Now

Mobile semi-electric hydraulic scissor scaffolding lift platform

Product Details

Rough terrain scissor lifts also enhance productivity by providing exceptional traction, speed and grade ability. They are the perfect machines for big outdoor jobs where platform workspace is critical . Scissor lift platform is a scissor structure man lift for aerial work which can be towed by man power. The mechanical structure make the platform stability, wide operating and high loading capacity. Normal scissor lift lifting power is AC power, DC and Diesel power are also available for option.

Main Features

　　Built-in ladder;

　　Giant pneumatic tire,solid rubber tire or polyurethane tire;

　　Deep gray enamel finish , powder coating;

　　Manually propelled, semi-auto manually;

　　Totally enclosed platform;

　　Self-storing outriggers;

　　Rated Capacity 1000 lbs., at least four person;

　　Customized 220 volt AC power (raise and lower) with thermal overload protection

Safety Parts

　　1.Hydraulic anti-dropping lock in hydraulic oil cylinder

　　2.Imported sealing part: Japan “NOK”

　　3.Explosion-proof hydraulic tube

　　4.Overflow valve to prevent overload

　　5.Emergency valve for manual landing in case of power failure

Technical parameters

Model	Platform size	Load(kg)	Lifted height(m)	Dimension(mm)	Weight(kg)
ADYD/QL0.5-4	2100mm*830mm	500	4	22509501200	880
ADYD/QL0.5-6	2100mm*830mm	500	6	22509501200	880
ADYD/QL0.5-7	2100mm*830mm	500	6.8	22509501280	970
ADYD/QL0.5-8	2100mm*930mm	500	8	225010601380	1050
ADYD/QL0.5-9	2100mm*930mm	500	9	225010601500	1165
ADYD/QL0.5-10	2100mm*1230mm	500	10	225013501530	1360
ADYD/QL0.5-11	2100mm*1230mm	300	11	225013501650	1400
ADYD/QL0.5-12	2550mm*1530mm	500	12	279616701750	2260
ADYD/QL0.5-14	2812mm*1530mm	500	14	306717301810	2486
ADYD/QL0.3-16	2812mm*1600mm	300	16	306718102080	3063
ADYD/QL0.3-18	3070mm*1600mm	300	18	332118102080	3900

Application

Installation, maintenance and cleaning of high-altitude equipment such as construction sites, factories, warehouses, grain depots, stations, hotels, airports, docks, gas stations, sports factories, elevated pipelines, etc.; it can also be used for maintenance of lifting equipment, maintenance of field power facilities, steel Frame structure plant maintenance, etc.
