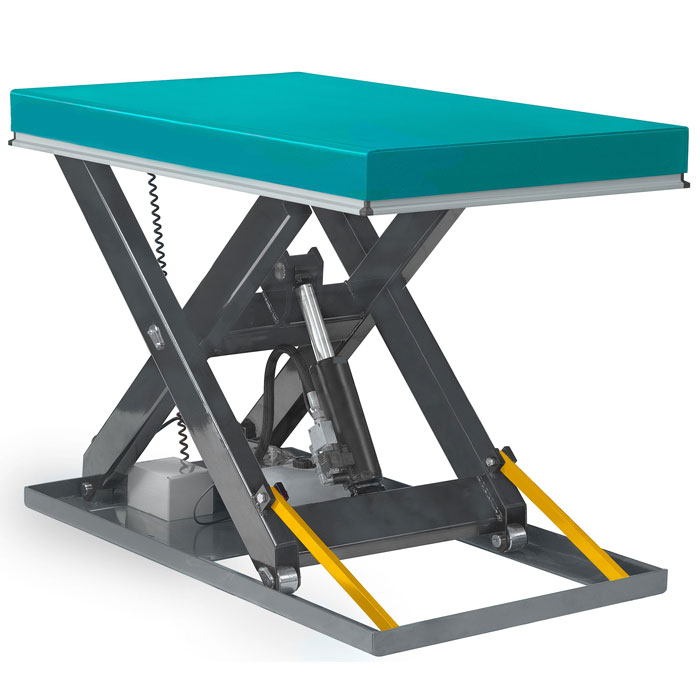

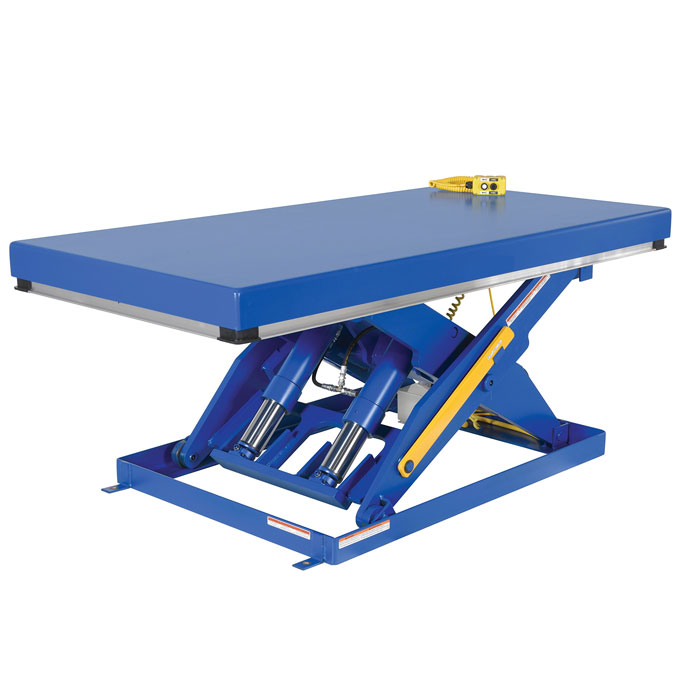

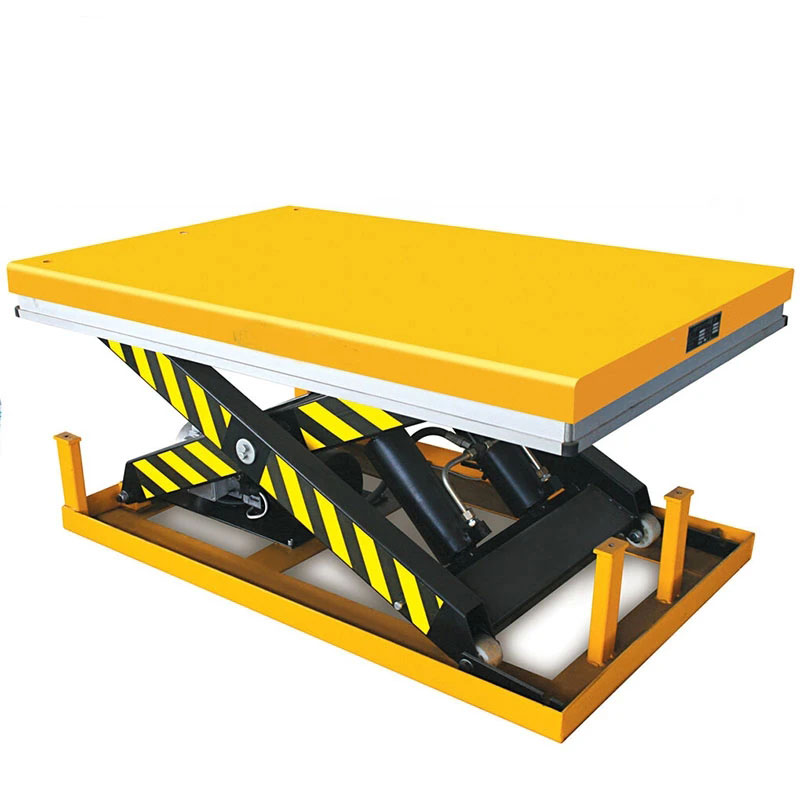

Hydraulic fixed stationary scissor lift platform

This is a popular selling type platform lift, fixed type hydraulic scissor lift with heavy-duty design, using 380V/50Hz AC power supply. And it has high-quality pump stations to make cargo lifting stable and powerful. There is a safety bar device under the table. When the table is lowered and encounters obstacles, it will stop descending to ensure safety. It adopts anti-pinch scissor design to prevent pinching and has overload protection function, making it more reliable and safer. The detachable lifting rings are convenient for the transportation and installation of our fixed type platform lift. The rotating pivot parts are all equipped with self-lubricating bushings, which are maintenance-free. Hydraulic system is equipped with an explosion-proof valve, which can prevent the platform lift from falling rapidly when the oil pipe bursts. It is also equipped with safety wedge blocks for easy maintenance.

The fixed scissor platform lifts are mainly suitable for warehousing, logistics, manufacturing, maintenance and other occasions, used for transporting goods between stores of buildings.

Advantages

1. Hydraulic lift provides fast, efficient, convenient and safety access to mezzanines basement, and any levels in multilevel building. storage both indoors and outdoors.

2. Hydraulic scissor lift also offers the best solution for loading and offloading goods between trucks and ground floor. It could be fixed in a concrete pit or directly on the round level.

3. Load capacity, lifting height, table size are needed before design it. Its loading capacity can be varied from 300 kg to 20 ton. Being applicable for kinds of working conditions.

4. 3D design drawing is one of our advantages that meet various lifting requirements of worldwide customers.

Main performance

1. The trigger signal,automatic leveling.

2.Equipped with safety protection device to prevent-lift overload.

3. A safety valve to prevent hydraulic pipeline rupture.

4. Emergency lowering device-under the condition of power failure.

5. The doors on the upper and lower floors are equipped with safety devices interlocked with the control system.

Standard Features

1. With CE certification, meet EN 1570 ANSI/ASME safety standards;

2. Convenient electric and hydraulic system scissor design for easy lifting,lowering;

3. AC 110/220/380/460V,50/60Hz power supply, low-tention (24V) control box;

4. Applicable to various industries, especially in warehousing,logistics,manufacturing industries;

5. Custom design and specs available.

The structure is compact and stable, and can adapt to high-frequency continuous operation. And lifting height can meet the needs of stable lifting of large-tonnage cargo. Rollers, balls, turntables and other tables can be configured arbitrarily to meet the requirements of different working conditions.

This is an ideal cargo transportation equipment that is economical and practical and can replace elevators between low floors. According to the installation environment and usage requirements of the lifting platform, you can choose different optional configurations to achieve better usage results.
